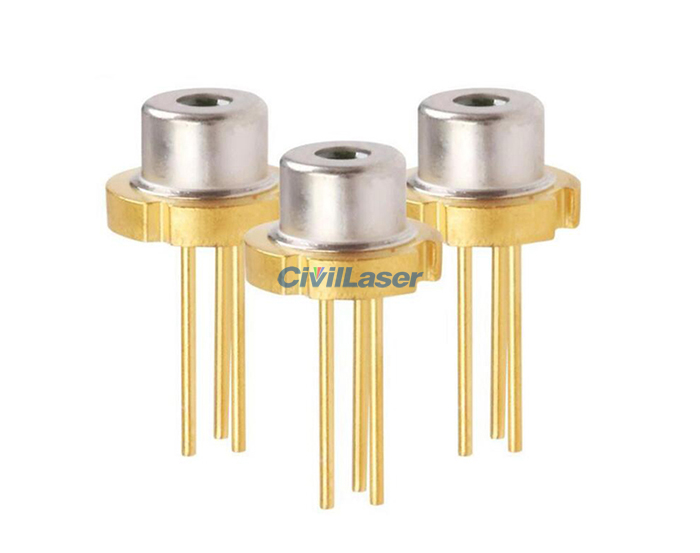

Union Laser Diode 650nm 10mW Red LD U-LD-651076Ap TO18-5.6mm Package

Union Laser Diode 650nm 10mW Red LD U-LD-651076Ap TO18-5.6mm Package

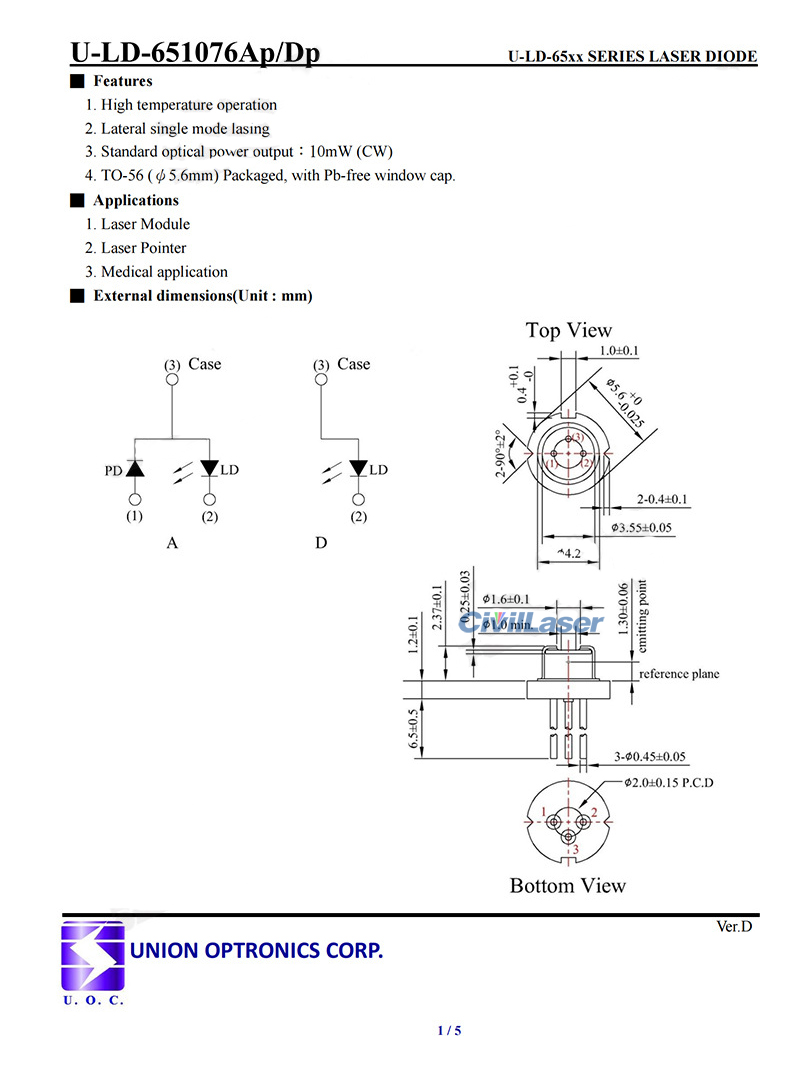

[Features]
1. High temperature operation
2. Lateral single mode lasing
3. Standard optical power output：10mW (CW)
4. TO-56 (ψ5.6mm) Packaged, with Pb-free window cap.
5. Built-in photo diode for monitoring laser diode.

[Applications]
1. Laser Module
2. Lase Pointer
3. Medical application

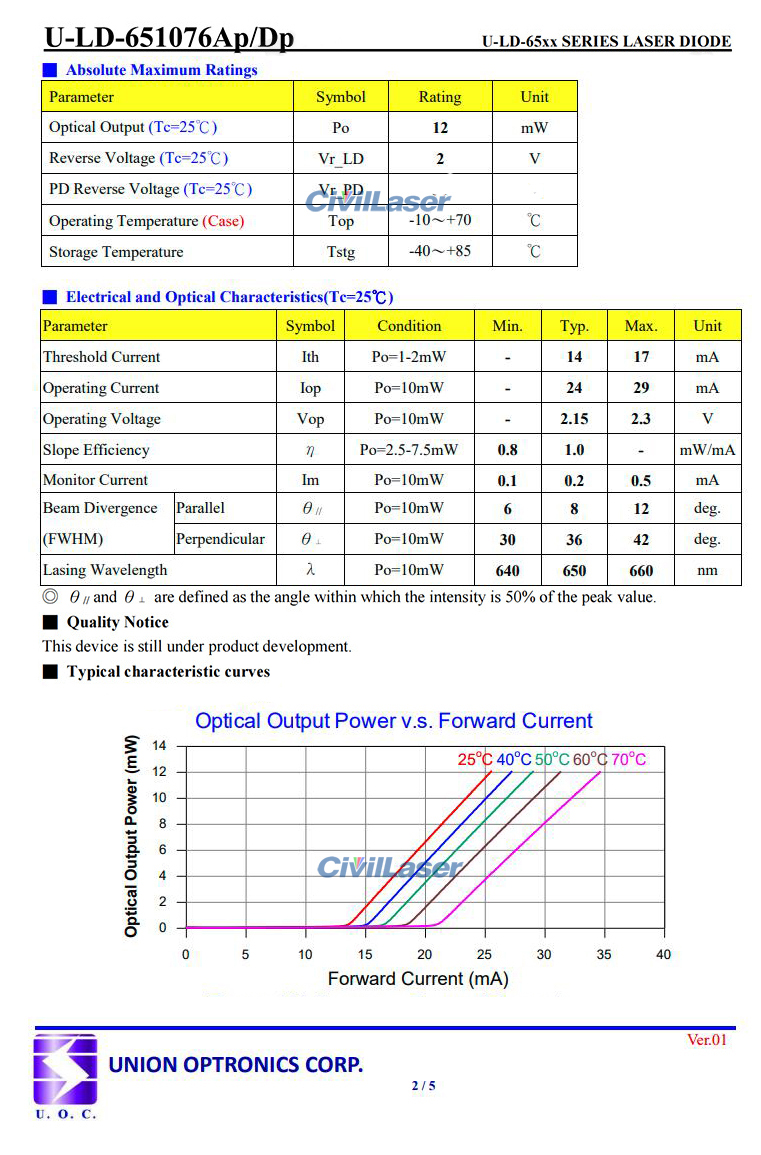

[Specification]
Product Name: Laser diode
Model: U-LD-651076Ap
Wavelength: 650±10nm
Output Power: 10mW
Package: TO18 Φ5.6mm
Operating Temperature: -10~+70℃
Storage Temperature: -40~+85℃
