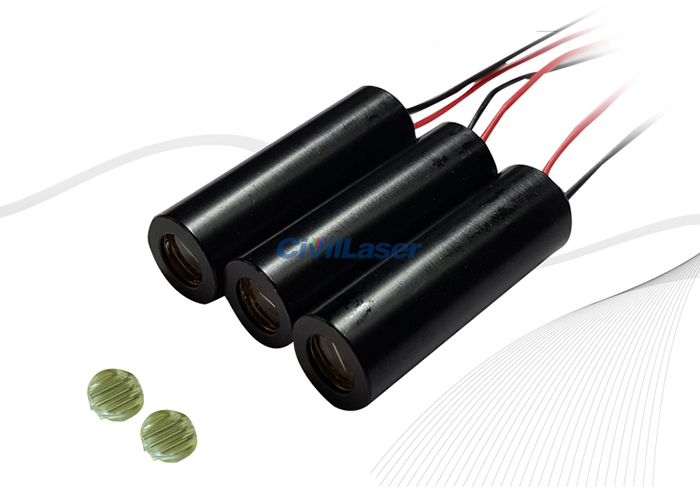

Line Laser 980nm 300mW Infrared Laser Diode Module Φ12x42mm

Line Laser 980nm 300mW Infrared Laser Diode Module Φ12x42mm

[Specification]
Product Name: Laser module
Wavelength: 980±10nm
Output Power: <300mW
Working Mode: CW
Laser Shape: Line
Line Width: <3mm at 1 meter
Line Length: About 2 meters long at 1 meter
Irradiation Distance: >50m (indoor)
Divergence Angle: 88°
Surface Treatment: Fog black
Shell Material: Environmentally friendly aluminum

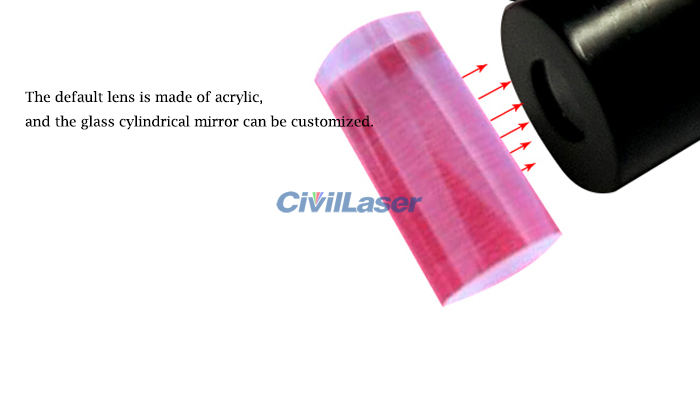

Lens Material: Imported acrylic optical mirror

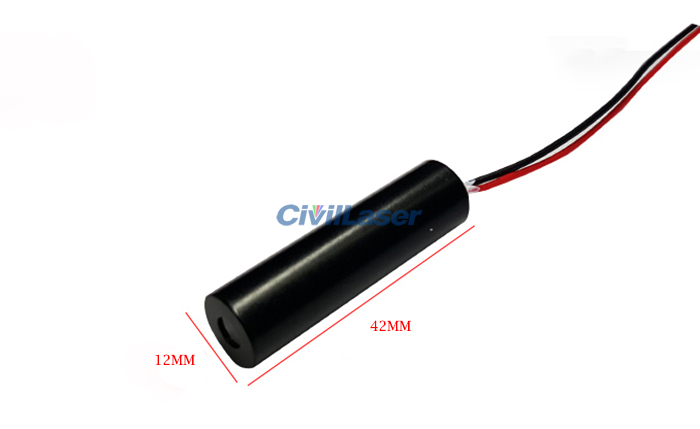

Size: Φ12x42mm
Circuit Control: ACC constant current control board
Tail Wire: 150mm red and black electronic wire
Operating Voltage: DC 5V
Operating Current: <600mA
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
Mean Time to Failure: >10,000hrs
