Fiber coupled laser 450nm 70mW interface SMA905,FC/PC or FC/APC

Starting at: $924.00

Please Choose:









Add to Cart:


Fiber coupled laser 450nm 70mW interface SMA905,FC/PC or FC/APC

It's a Pluggable fiber , easy to replace.
If you need other output power or custom needs, please contact us.


Fiber-coupled laser features:
1. The length of fiber can be customized.
2. You can change the direction of the laser beam, it can be applied to a variety of occasions venue.
3. Laser spot is circular, uniform illumination.
4. The laser fiber can be installed at the exit of the collimator lens care area to adjust the size, large or small.

Note:
1. It's made-to-order products, we need 1~3 weeks to produce it.
2. The output power/fiber diameter/fiber length can be customized.
3. The marked output power is before coupling, coupling efficiency is about 80%~90%.

[Specifications]
Product Name: 450nm fiber coupled laser with Power Supply
Product Include: Laser system with fiber + Controller + Power source
Output Wavelength: 450±5nm
Output Power: 70mW
Operating Mode: CW or Modulation
Power Stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minute
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 100μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture:0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 100(L)*34(W)*45(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

[Application]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar

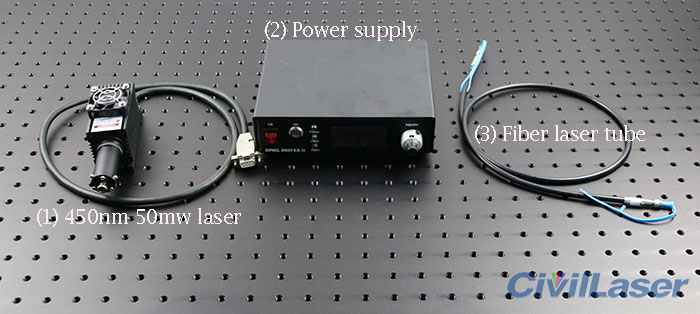

[Package include]
1 x 450nm fiber laser
1 x Laser power supply
