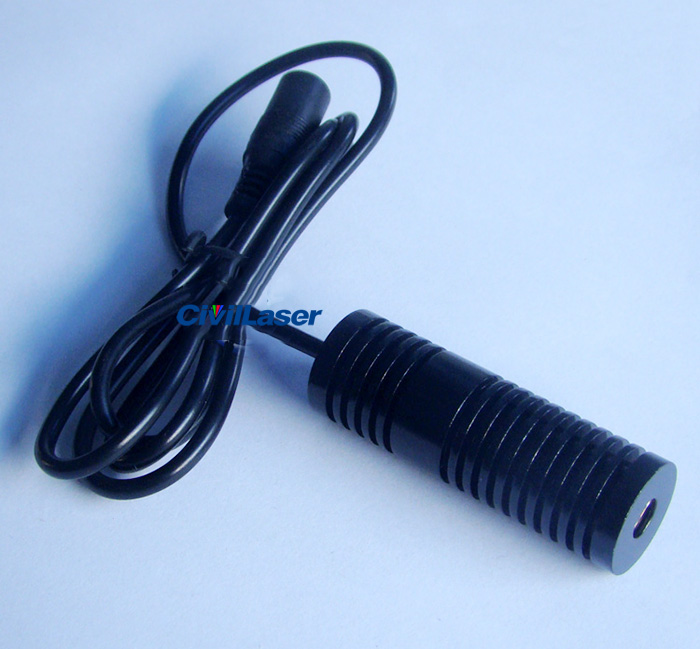

532nm 80mW Green Laser Module Line Laser Locator/Marking Φ20×60mm

532nm 80mW Green Laser Module Line Laser Locator/Marking Φ20×60mm

It can be used for the positioning of sights, laser test tools, concentricity positioning, medical equipment positioning, and can be used to make signal equipment.

[Specification]
Product Name: Laser module
Output Wavelength: 532±5nm
Output Power: <80mW
Laser Shape: Line
Line Width: Minimum line width ≤ 1.0mm (close-range fixed-point focusing), <2mm at 1m
Irradiation Distance: 30m
Material: Copper
Light Diffusion Angle: 90° (Customizable)
Size: Φ20*60mm
Circuit Control: ACC
Operating Voltage: DC 3~5V
Operating Current: I<350mA
Operating Temperature: -10~+50℃
Storage Temperature: -40~+80℃
Lifetime: >6000hrs
