520nm 10mW Laser Diode Module Line Green Laser Positioner 12*40mm

520nm 10mW Laser Diode Module Line Green Laser Positioner 12*40mm

It is suitable for industrial line drawing and positioning, clothing cutting, machine shearing board cutting and drawing lines, spirit level, medical equipment, teaching equipment, etc.

[Specification]
Product Name: Laser module
Output Wavelength: 520±10nm
LD Power: 10mW
Output Power: 5.0~7.5mW
Laser Shape: Line
Line Width: Minimum line width ≤0.5mm, <2mm at 1m
Irradiation Distance: <10m (in the indoor environment)

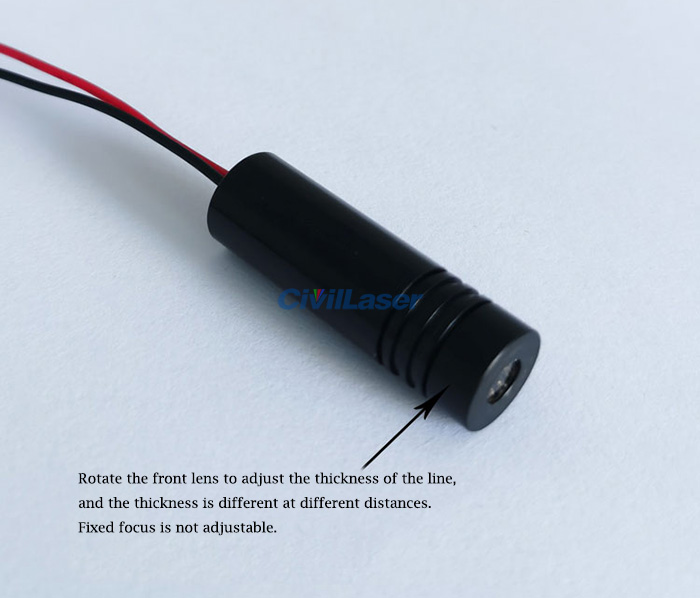

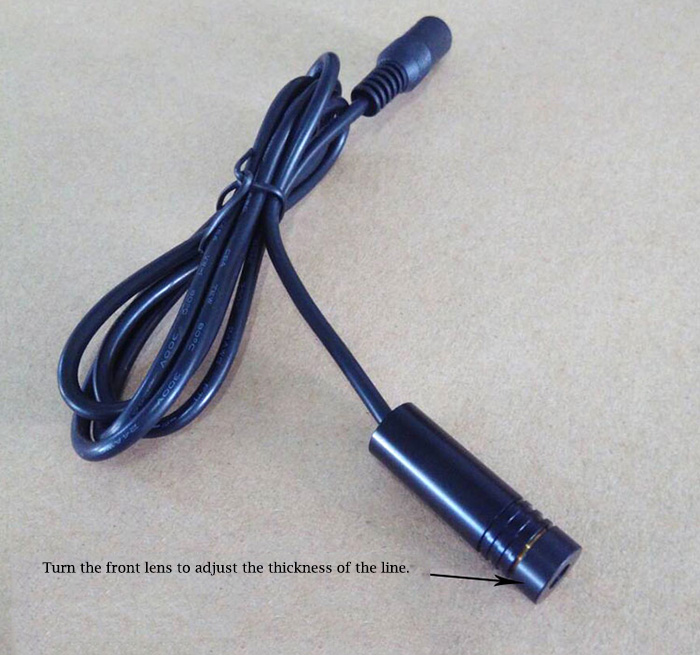

Focus Method: Fixed focus / Adjustable focus(Default)
Material: Aviation aluminum (Full metal shell)
Surface Treatment: Insulation fog black treatment

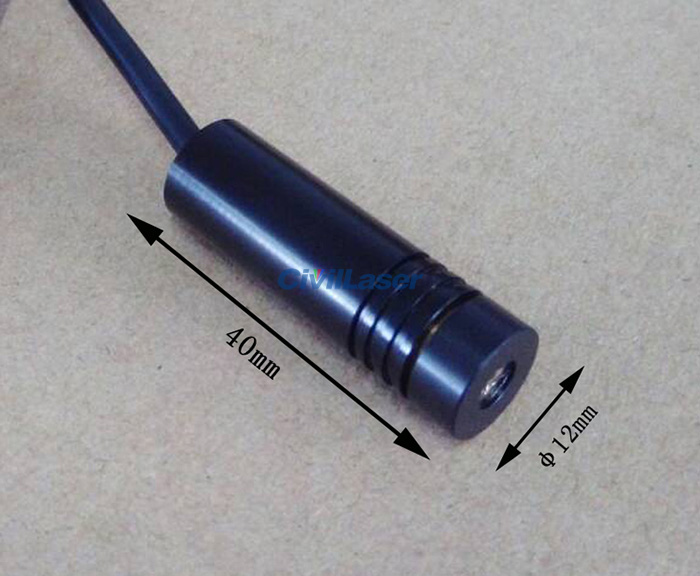

Size: Φ12×40mm

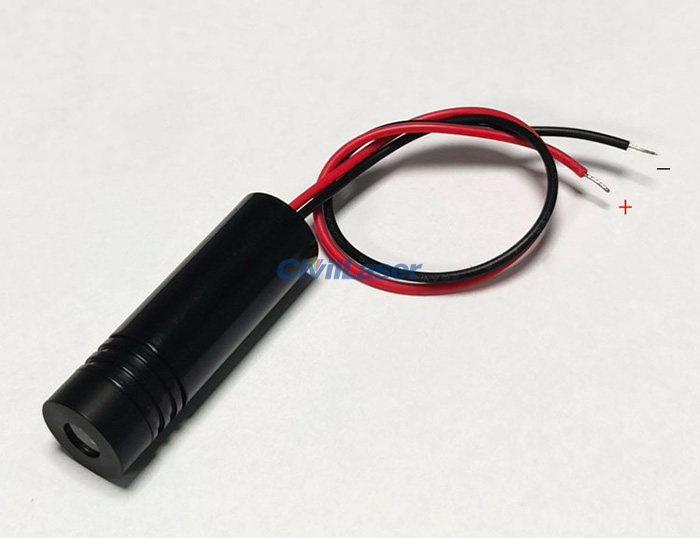

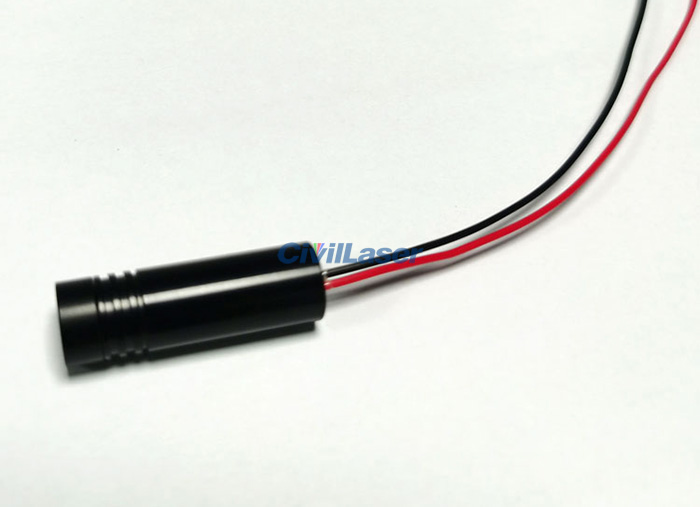

Tail Wire: 15cm long red and black wire (For laser module only)

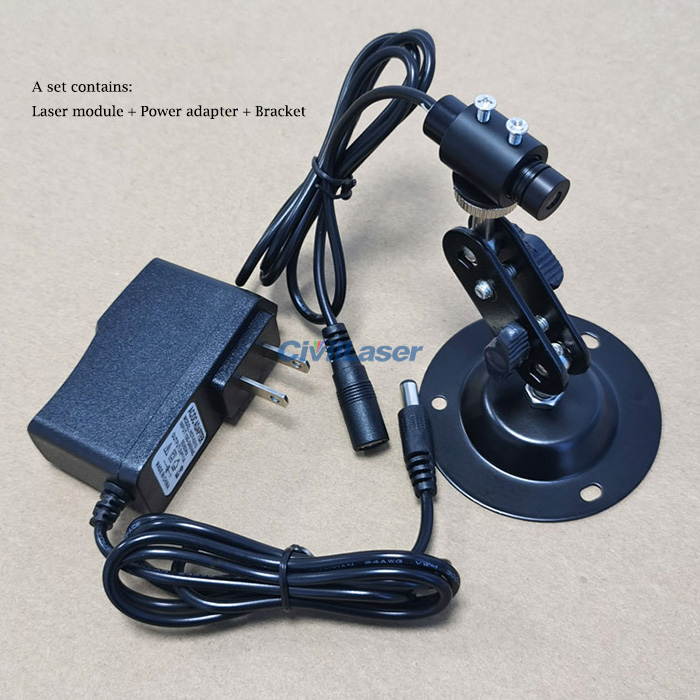

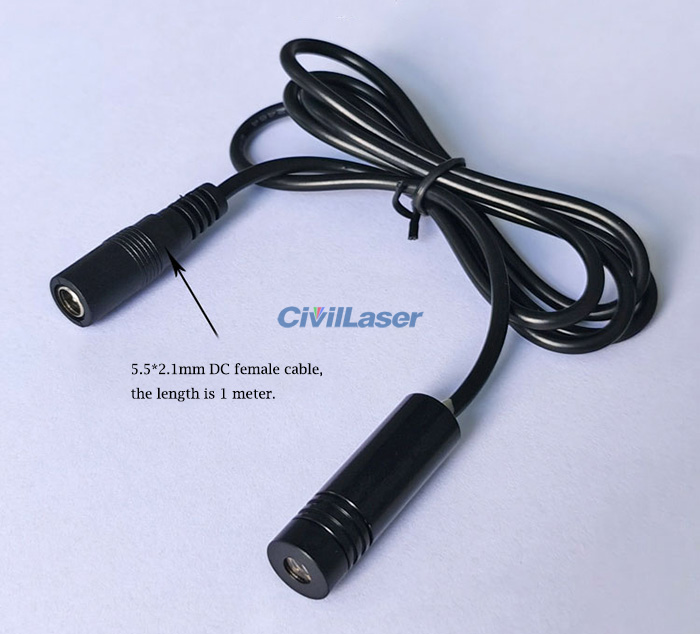

                1 meter DC female plug cable (For laser module + power supply)
Circuit Control: APC
Operating Voltage: DC 2.6~5.5V
Operating Current: I<250mA
Light Diffusion Angle: 90° (Customizable)
Operating Temperature: -10~+50℃
Storage Temperature: -20~+80℃
Lifetime: >10,000hrs
