Line Laser 650nm 10mW Laser Diode Module Red Line Indicator

Line Laser 650nm 10mW Laser Diode Module Red Line Indicator

It can be used for the positioning of sights, laser test tools, concentricity positioning, medical equipment positioning, and can be used to make signal equipment.

[Specification]
Product Name: Laser module
Output Wavelength: 650±5nm
Output Power: <10mW

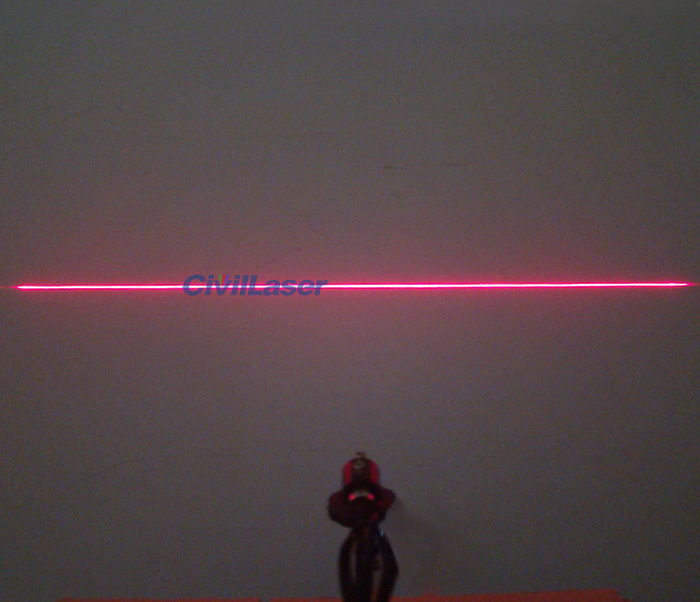

Laser Shape: Line
Line Width: Minimum line width ≤1.0mm, <2mm at 1m
Irradiation Distance: <30m
Surface Treatment: Black (Oxidation fog black)

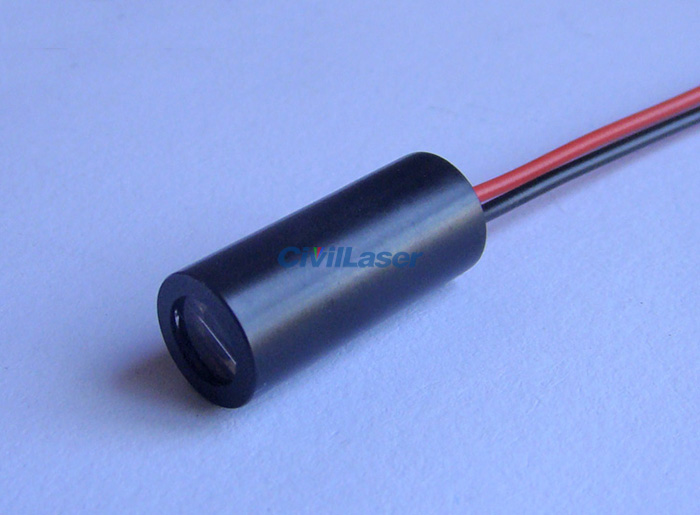

Size: Φ10×30mm
Circuit Control: APC
Operating Voltage: DC 3.0V
Operating Current: <55mA
Light Diffusion Angle: 36.5°, 60°, 90°, 110° (Customizable)
Operating Temperature: -10~+50℃
Storage Temperature: -40~+80℃
Lifetime: >6000hrs
