Single mode fiber 980nm 680mW semiconductor laser pumped laser power can be adjusted continuously

Starting at: $2,177.00

Please Choose:









Add to Cart:


Single mode fiber 980nm  680mW semiconductor laser pumped laser power can be adjusted continuously


980nm semiconductor laser with single mode optical fiber laser using high performance butterfly type semiconductor laser, the combination of optical fiber FBG wavelength locking to ensure stable, SMF output. The of professional design of the driving circuit and TEC control to ensure the laser safety and stability work. The laser can be used in scientific experiments and production test, suitable as a pumping source of fiber laser and optical fiber amplifier, can provide desktop (with an LCD screen) or modular package according to customer requirements.




980nm sm fiber laser

For Module type(without LCD)

we use PC software control the output power.

Software downlaod link: https://pan.baidu.com/s/1NbDT_z_S3s3hfq-A2WsEtA

Download password: ivdw

Or download from Google Drive:
https://drive.google.com/file/d/1nhIWnBXprexU8zJDNybBN4OOHwcNLave/view?usp=sharing





Characteristic:
High output power
Power and spectrum stability
Module or desktop package


Application:
Optical fiber laser pumping
Fiber amplifier
Nonlinear optics research

Parameter Value:


Parameter

Unit

Typical value

Remarks

Wavelength

nm

974+/- 1,976+/- 1



Output Power

mW

680

Can be customized

Spectral stability(15 minutes)

dBm

 ±0.005



Short-term stability(15 minutes)

dB

0.02



Long-term stability(Hours)

dB

0.05



SM fiber (Default)

-

SM fiber (Default)

PM fiber customizable

Fiber output end type

-

FC/APC

Can be customized
Working temperature

°C

-20°C ~ 65°C



Storage temperature

°C

-40°C ~ 85°C



Size

mm

260(W)X280(D)X120(H)

module size :150x125x30 or 90x70x15

Software Control Feature

-

Not Include (Default)

By default, control by button.

Pump Protector

-

Not Include (Default)

If this laser is used as a pump laser,for Erbium-doped or Ytterbium-doped fiber laser.
We suggest adding protector, if not, it is easy to damage the pump chip.

Note:
1. Filter at 1030nm/1550nm.(choose)
2. The protector will cause the laser power loss of about 10%.

Power supply

V

Desk type: AC 110V~220V

module: 5V




Note:
1, output power, wavelength can be customized according to customer demand
2, the stability of the test environment is 23 + 2 degrees Celsius product preheating 60 minutes later;
3, The above price is for the laser (does not contain the pump protector, for greater than 400mW, the pump protector is recommend.)

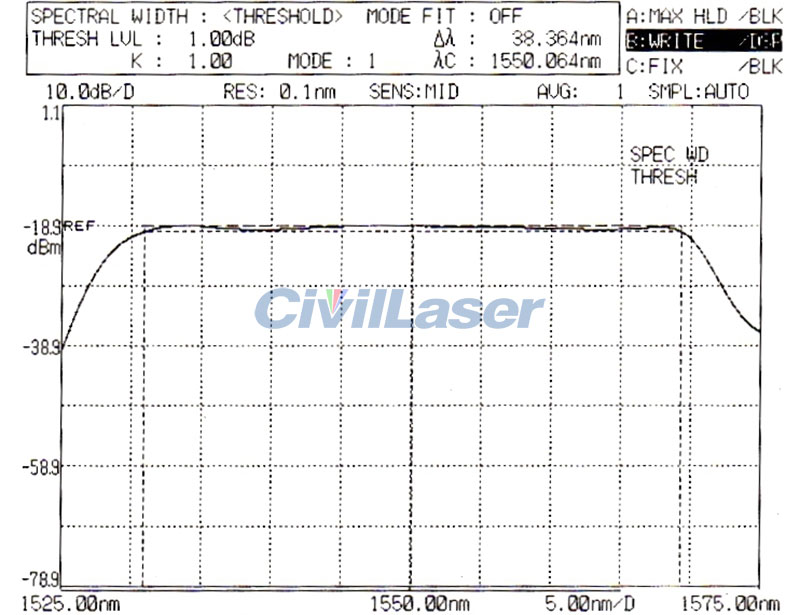

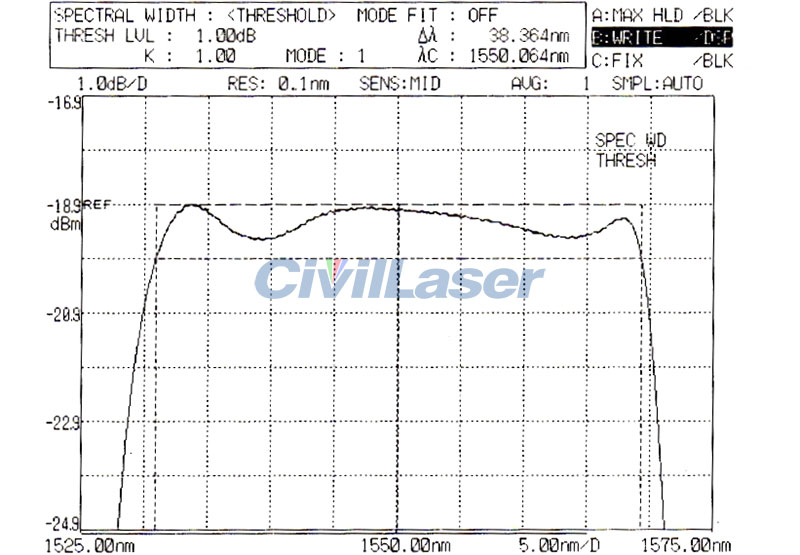

Spectrogram:
