Powell lens Green laser line 520nm 50mW 85mW uniform line laser positioning
SPECIFICATIONS:
Name: 520nm Green laser module Line adjustable output power and line width
Output Wavelength: 520nm
Output Power: 50mW / 85mW (Choose)
Laser Shape: Line
Laser type: Visible laser, Green laser
Outside Color: Black

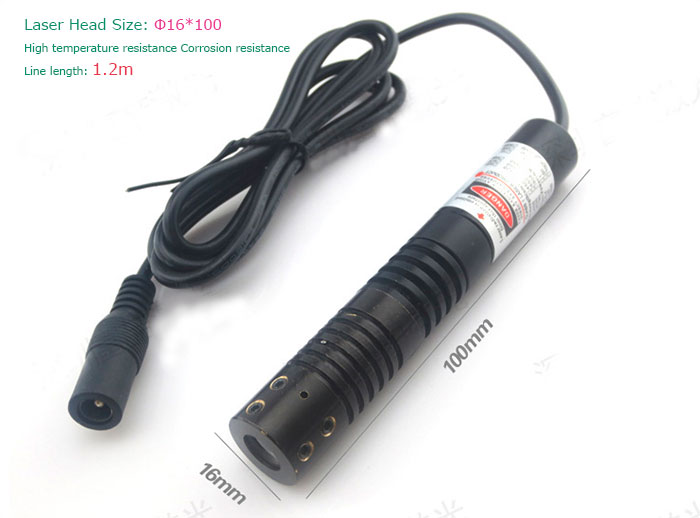

Size: φ16*100mm
Current: ≤400mA
Operating Voltage: DC 1-3V

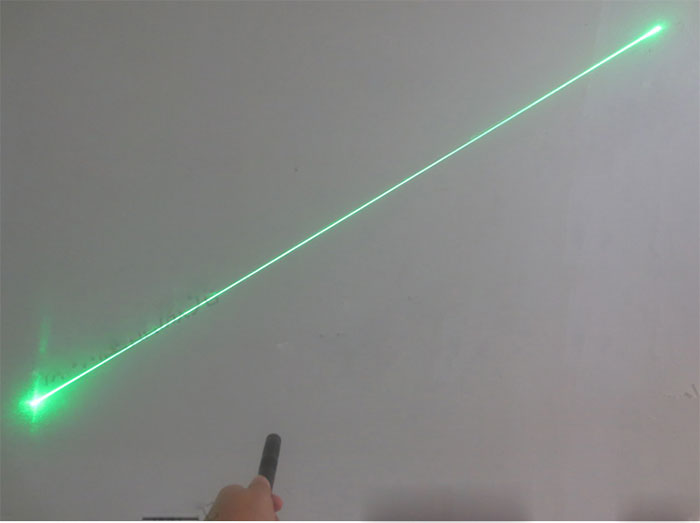

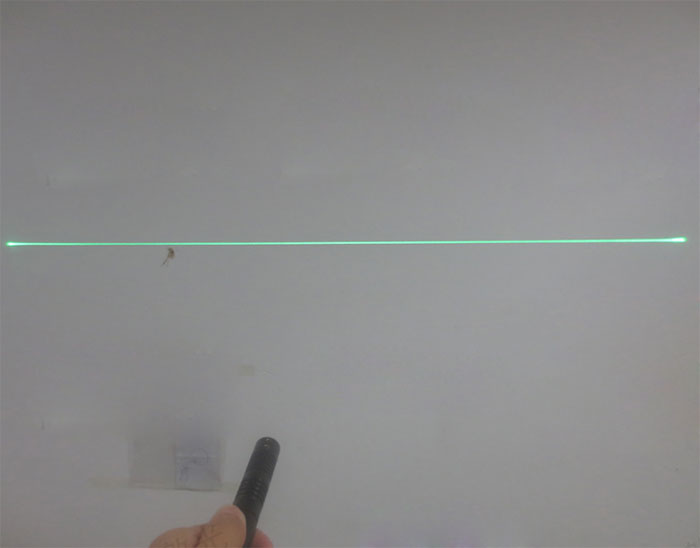

Spot pattern: uniform line

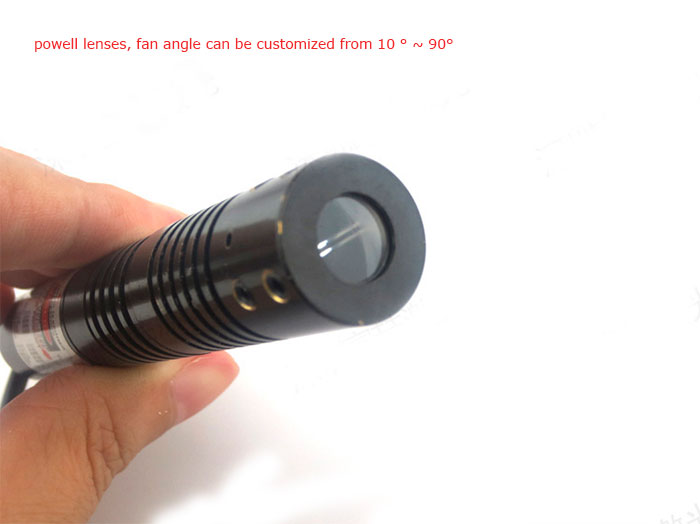

Optical lens: Powell lens
Fan angle: 10° ~90°(can be customized)

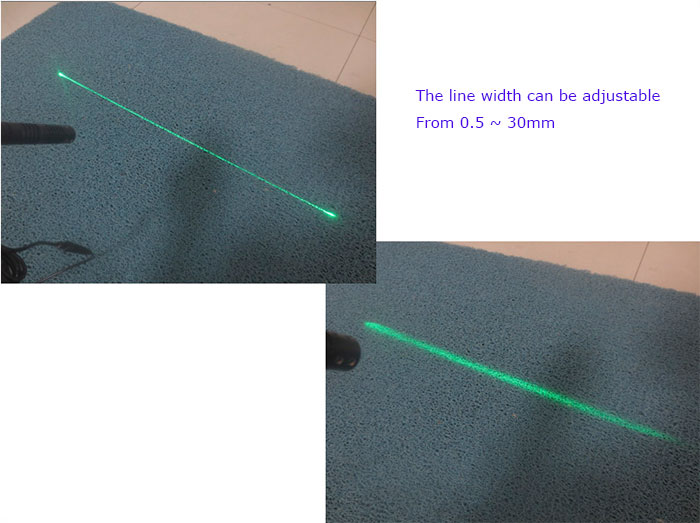

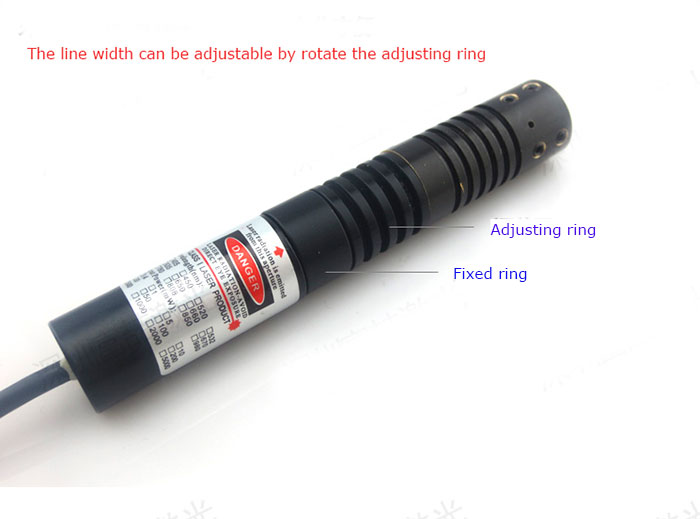

Line width: 0.5mm ~ 30mm (adjustable)
Operating Temperature: -10--50℃
Storage Temperature: -40℃~80℃

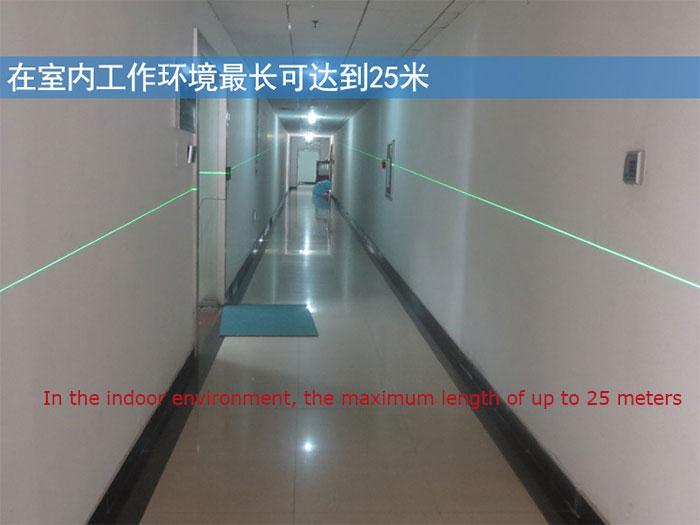

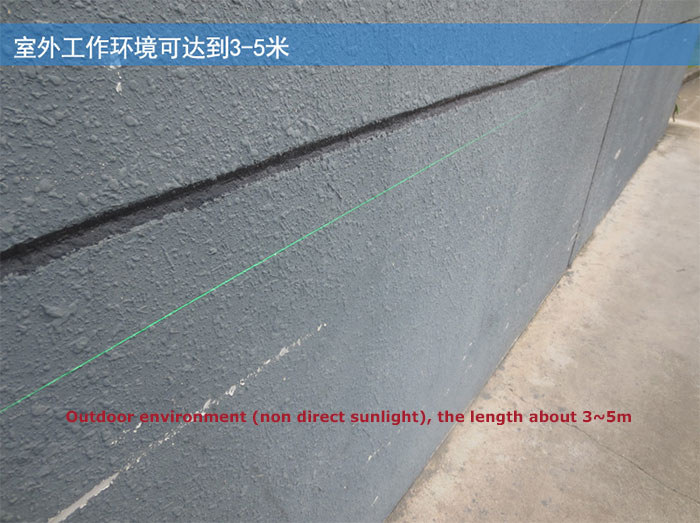

Line Length: 1.2m (can be customized)
Warranty: 12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway
Package includes:
1* Green laser module;
1* Laser stand;

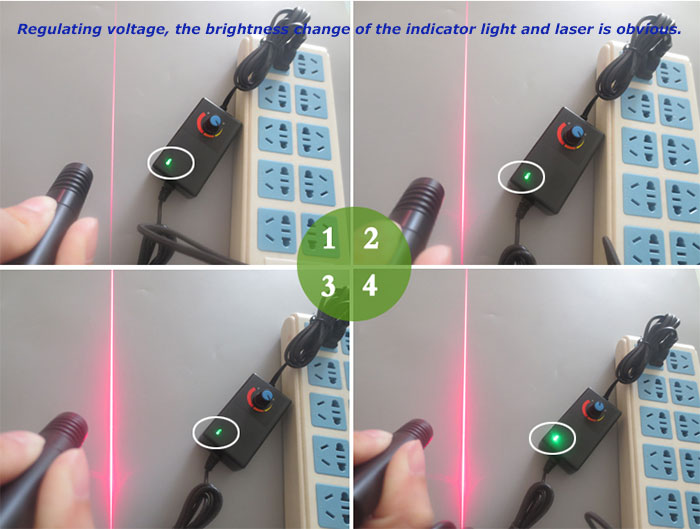

1* Adjustable Power supply;
This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7, Tail power line using high temperature line, good toughness and corrosion resistance.

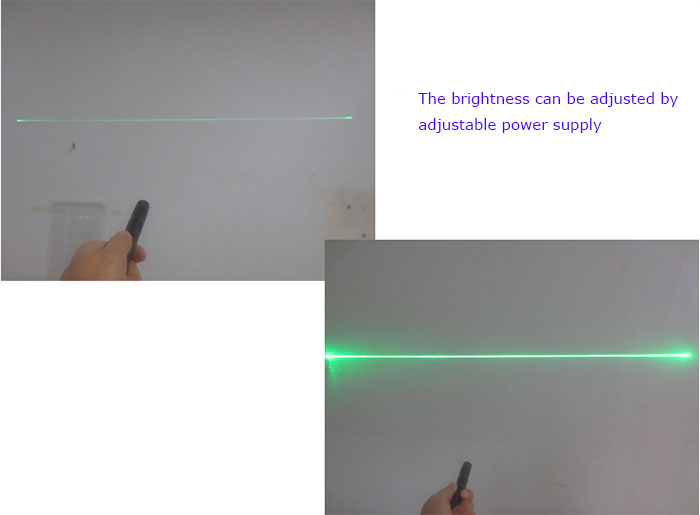

Green line laser module and the output power is adjustalbe
