1053nm dpss laser 100mw~500mw output power adjustable

[SPECIFICATIONS]
Wavelength: 1053nm
Output Power: 100mw/200mw/500mw(choose)
Working Mode: CW
Transverse: TEM00
Sepctral Linewidth: <0.1nm
Polarization: Line polarization
Polarizatino Ratio: >8:1
Beam Quality(M2 factor): <1.5
Beam Divergence(full angle,mrad): 1.5±0.2
Beam diameter at Dperture: 2.5±0.2mm
Beam Roundness: >90%
Power stability(RMS): <5%@4hours
Aperture Position: 50mm
Dimensions of Laser Head: 205mm L x 60mm W + 60mm H
Integrated Driver Model Dimensions: 159mm + 144mm + 83mm
External Modulation: 5V TTL / 5V Analogue
Modulation Repetition: 30KHz TTL / 10KHz Analoggue
Cooling System: TEC
Warm-up Time: <15 minutes
Operation Temperature: 18℃ ~ 30℃
Expected Lifetime: > 10,000 hours
Warranty Time: 1 Year

Note:
This size is for reference only. The size of the latest model may changed.
If there is any requirement for size, please contact us get latest size.

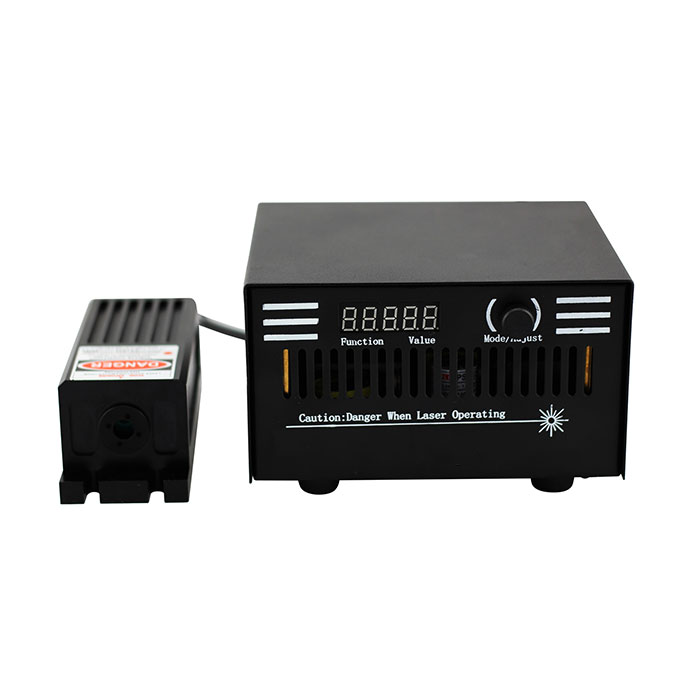

1053nm dpss laser

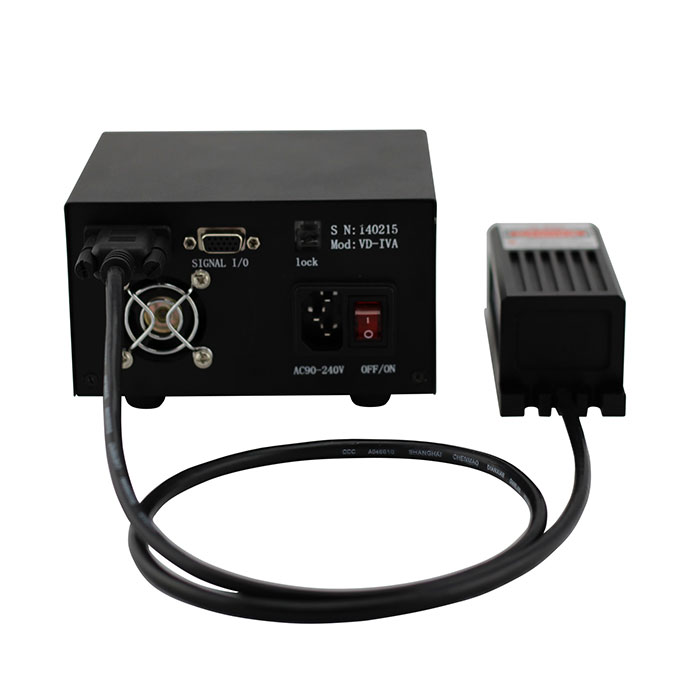

1053nm dpss laser

1053nm dpss laser
