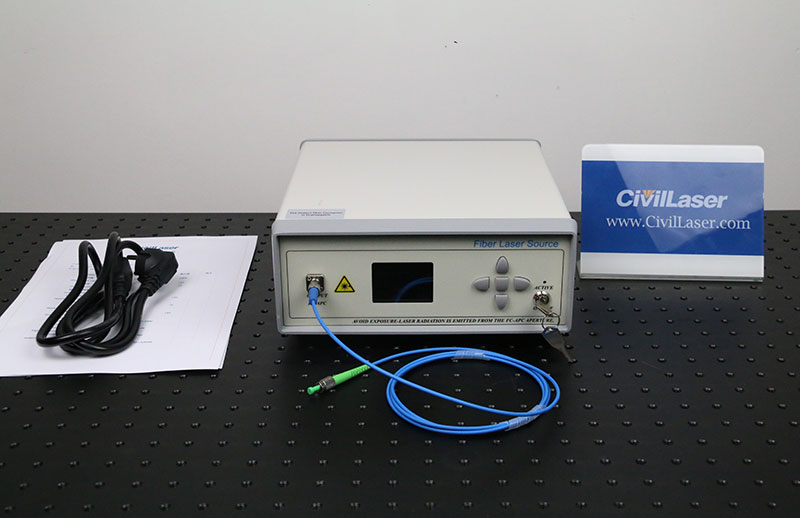

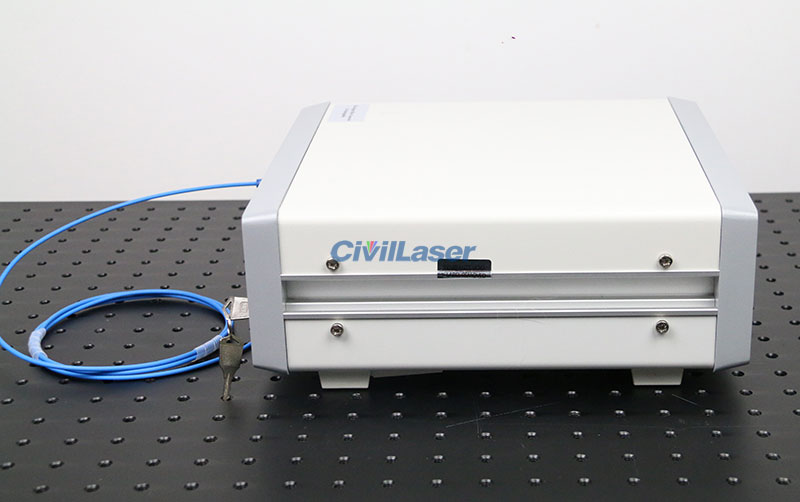

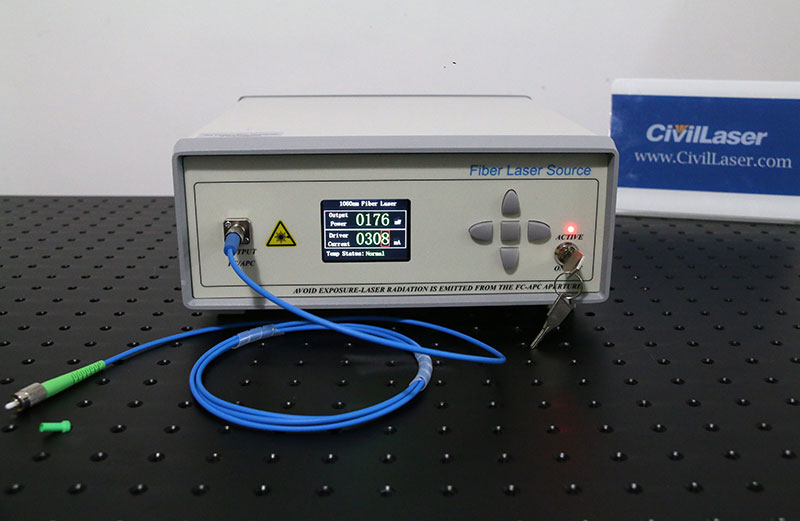

100mW Polarization-Maintaining Fiber Coupled Laser at 1064nm Desktop Type FL-1064-100-PM-B
This laser adopts butterfly-shaped semiconductor laser chip, and the professionally designed drive and temperature control circuit control ensures the safe operation of the laser and stable output power and spectrum. Suitable as a seed laser for high power lasers and also for production testing of optical devices, available in benchtop or modular packaging.
[Features]
High output power
Power and spectral stability
Polarization-maintaining output
[Applications]
Seed Laser
Optical test
Nonlinear Optics Research
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
FL-1064-100-PM-B
|
|
|
Working Wavelength
|
nm
|
1064±2
|
|
|

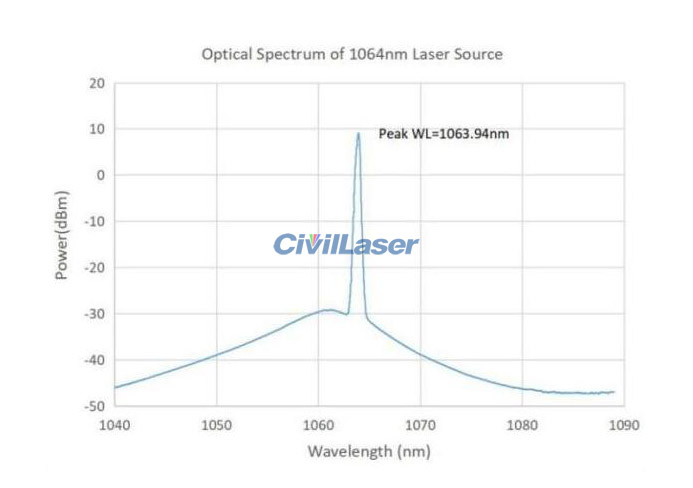

Spectral Width
|
nm
|
≤0.1
|
|
|
Working Mode
|
--
|
CW
|
Continuous light
|
|
Output Power
|
mW
|
100
|
Customizable
|
|
Power Adjustable Range
|
--
|
10~100%
|
|
|

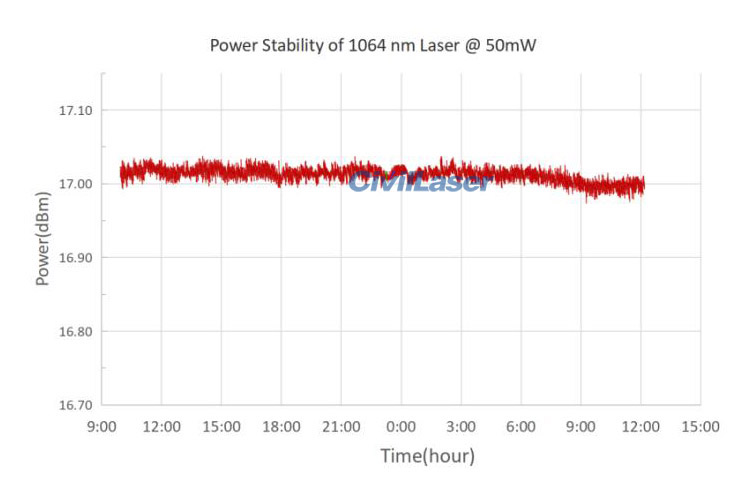

Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization State
|
--
|
Linear polarization
|
|
|
Pigtail Type
|
--
|
PM980 Polarization-Maintaining fiber
|
L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
(Current product)
|
Module Type
|
|
Control Method
|
Touch screen/RS232 serial communication
|
RS232 Serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
AC 100~240V
|
DC 5V, 3A
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
