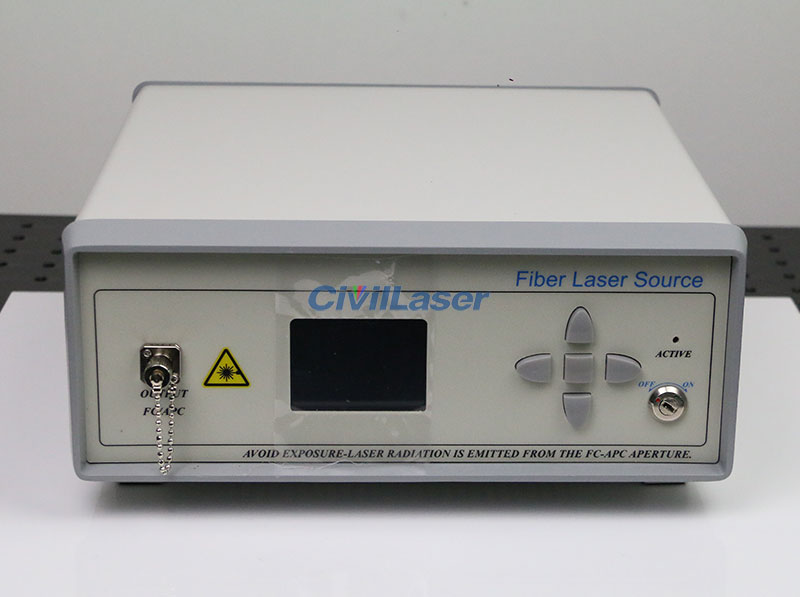

5Watt High Power ASE Broadband Light Source SM Fiber Optic Light Sources Benchtop ASE-C-5000-T-SM-B

The fiber ASE broadband light source is an incoherent light source, which is the spontaneous radiation generated by the semiconductor laser pumping erbium-doped silica fiber, and the spectral flattening technology is introduced to achieve a broadband flat spectrum. The wavelength of the light source covers the C-band, and the spectral flatness is better than 2dB. It is output through single-mode fiber or polarization-maintaining fiber, which is suitable for applications such as fiber sensing.

[Specifications]

Parameters

Unit

Typical value

Remarks

Model

--

ASE-C-5000-SM-B /
ASE-C-5000-T-SM-B

T: Tunable power

Spectral Range

nm

1528~1563

C-band

Ouput Power

mW

5000



Power Adjustable Range

--

10%~100%

(Optional function)
Note: Spectral flatness does not change.

Spectral Flatness

dB

3



Output Isolation

dB

>35



Short-term Stability (15 minutes)

dB

≤ ±0.02

Equivalent≤±0.5%

Long-term Stability (8 hours)

dB

≤ ±0.05

Equivalent≤±1.2%

Polarization Extinction Ratio

dB

≤ 0.2



Pigtail Type

--

SMF-28 Single mode fiber

Ф=3mm loose tube,L=1m

Pigtail Connector Type

--

FC/APC







Electrical and Environmental Parameters

Desktop Type
(Current product)

Module Type

Control Method

Button

RS232 Serial communication
(Only for power Tunable )

Communication Interface

DB9 Female(Default not include)
(Only for power Tunable )

DB9 Female
(Only for power Tunable )

Power Supply

AC 100~240V

DC 12V, 5A

Size

360(W)×350(D)×120(H)mm

139(W)×235(D)×70(H)mm

Operating Temperature Range

-5~+35°C

Operating Humidity Range

0~70%

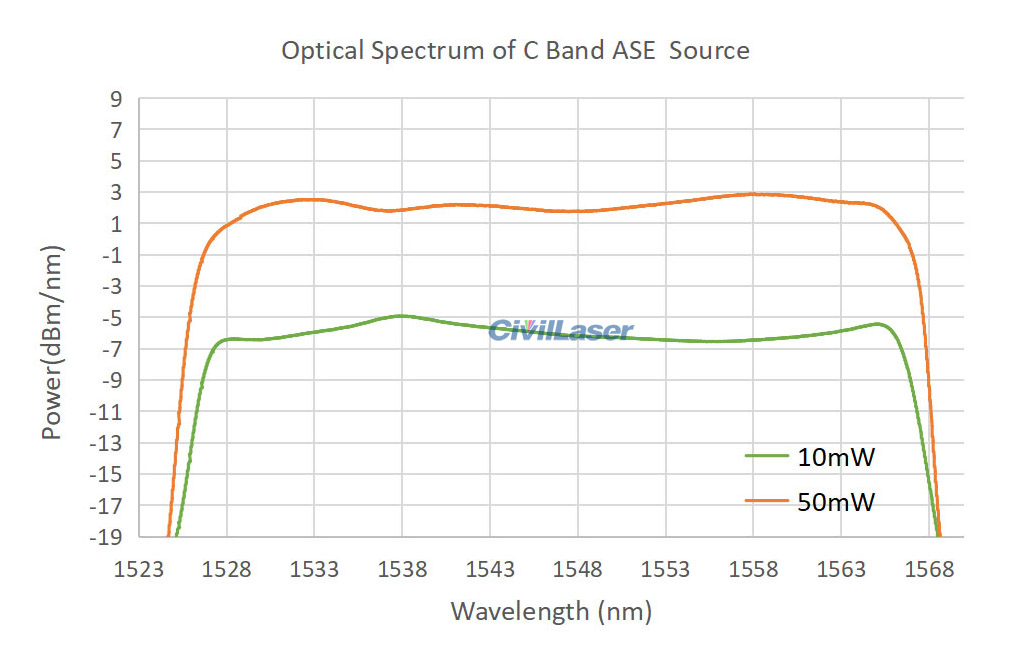

The flatness when the power is adjusted to the maximum.
The flatness is guaranteed to be ≤3dB at maximum power, and the flatness is not guaranteed during power adjustment.
