500mW C-band ASE Broadband Light Source with Single-mode Optic Fiber ASE-C-500-T-SM-M Module Type
The fiber ASE broadband light source is an incoherent light source. It is the spontaneous radiation generated by semiconductor laser pumping erbium-doped quartz fiber. At the same time, the spectrum flattening technology is introduced to achieve broadband flat spectrum. The wavelength of the light source covers the C band (1528nm~1569nm), the spectrum flatness is better than 3dB, and the output is coupled through a single-mode fiber. The power is continuously adjustable, and the polarization-maintaining fiber output linear polarization can be selected. It is suitable for applications such as fiber optic sensing.
[Features]
Wide spectrum
High flatness
Adjustable power
High stability
[Applications]
Fiber optic sensing
Medical imaging
Production testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
ASE-C-500-SM-M /
ASE-C-500-T-SM-M
|
T: Tunable power
|
|
Spectral Range
|
nm
|
1528~1569
|
C-band
|
|
Ouput Power
|
mW
|
500
|
|
|
Spectral Power Density
|
dBm/nm
|
11
|
|
|
Power Adjustable Range
|
--
|
10%~100%
|
(Optional function)
Note: Spectral flatness does not change.
|
|
Spectral Flatness
|
dB
|
≤3
|
|
|
Spectral Ripple
|
dB
|
≤0.1
|
|
|
Output Isolation
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization State
|
--
|
Random polarization
|
|
|
Polarization Extinction Ratio
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
SMF-28 Single mode fiber
|
Ф=2mm loose tube，L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|

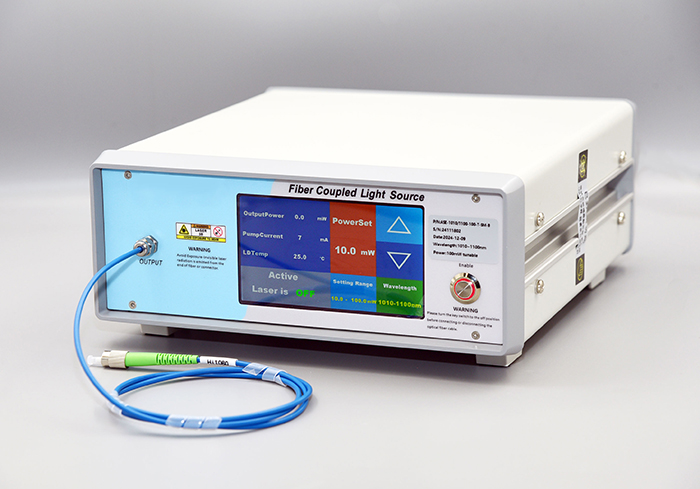

Desktop Type
|

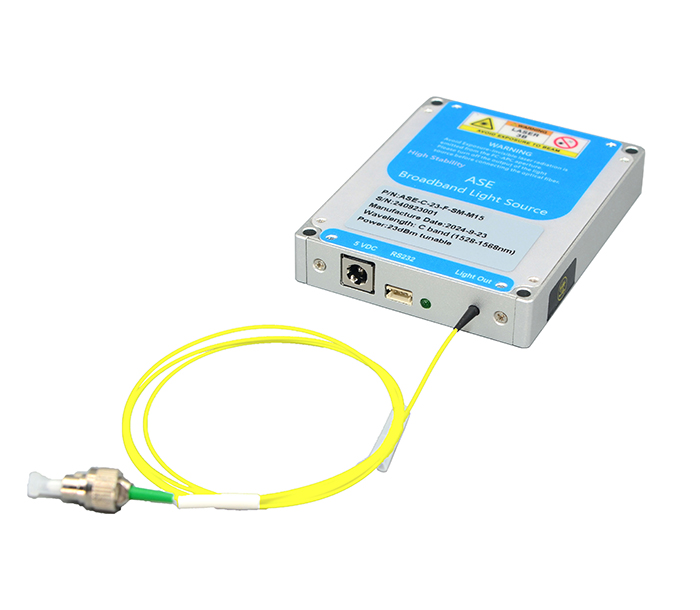

Module Type
(Current product)
|
|
Control Method
|
Touch screen/RS232 serial communication
|
RS232 Serial communication
(Only for power Tunable )
|
|
Communication Interface
|
DB9 Female(Default not include)
(Only for power Tunable )
|
DB9 Female
(Only for power Tunable )
|
|
Power Supply
|
AC 100~240V
|
DC 12V, 3A
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×31.5(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
The following spectrum, flatness and spectral shape remain unchanged at different power levels:
.jpg)
.jpg)
