C-band ASE Light Source Broadband Laser 40mW Single-mode Fiber Laser ASE-C-40-T-SM-M Module Type

Parameters

Unit

Typical value

Remarks

Model

--

ASE-C-40-SM-M /
ASE-C-40-T-SM-M

T: Tunable power

Spectral Range

nm

1528~1563

C-band
2dB spectral range

Ouput Power

mW

40

Power Adjustable Range

--

10%~100%

(Optional function)
Note: Spectral flatness does not change.

Spectral Flatness

dB

≤2

Output Isolation

dB

≥35

Short-term Stability (15 minutes)

dB

≤ ±0.02

Equivalent≤±0.5%

Long-term Stability (8 hours)

dB

≤ ±0.05

Equivalent≤±1.2%

Polarization Extinction Ratio

dB

≤ 0.2

Pigtail Type

--

SMF-28

L=1m
Ф=900μm for M15,
Ф=2mm loose tube for M20

Pigtail Connector Type

--

FC/APC

Electrical and Environmental Parameters

Desktop Type

Module Type
(Current product)

Control Method

Button

RS232 Serial communication
(Only for power Tunable )

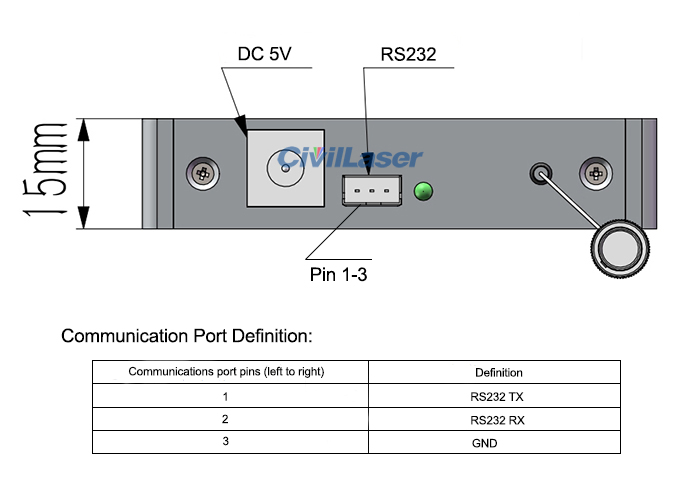

Communication Interface

DB9 Female(Default not include)
(Only for power Tunable )

DB9 Female For 125(W)×150(D)×20(H)mm
XH1.5-3Pin For 90(W)×70(D)×15(H)mm
(Only for power Tunable )

Power Supply

AC 100~240V

DC 5V, 1.2A for M15
DC 5V, 3A for M20

Size

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm
90(W)×70(D)×15(H)mm (Choose)

Operating Temperature Range

-5~+35°C

Operating Humidity Range

0~70%
