Hybrid Module of 20dBm Optical Amplifier EDFA and Fiber Raman Amplifier Pump Benchtop HEA-BA-20-1455-500-B

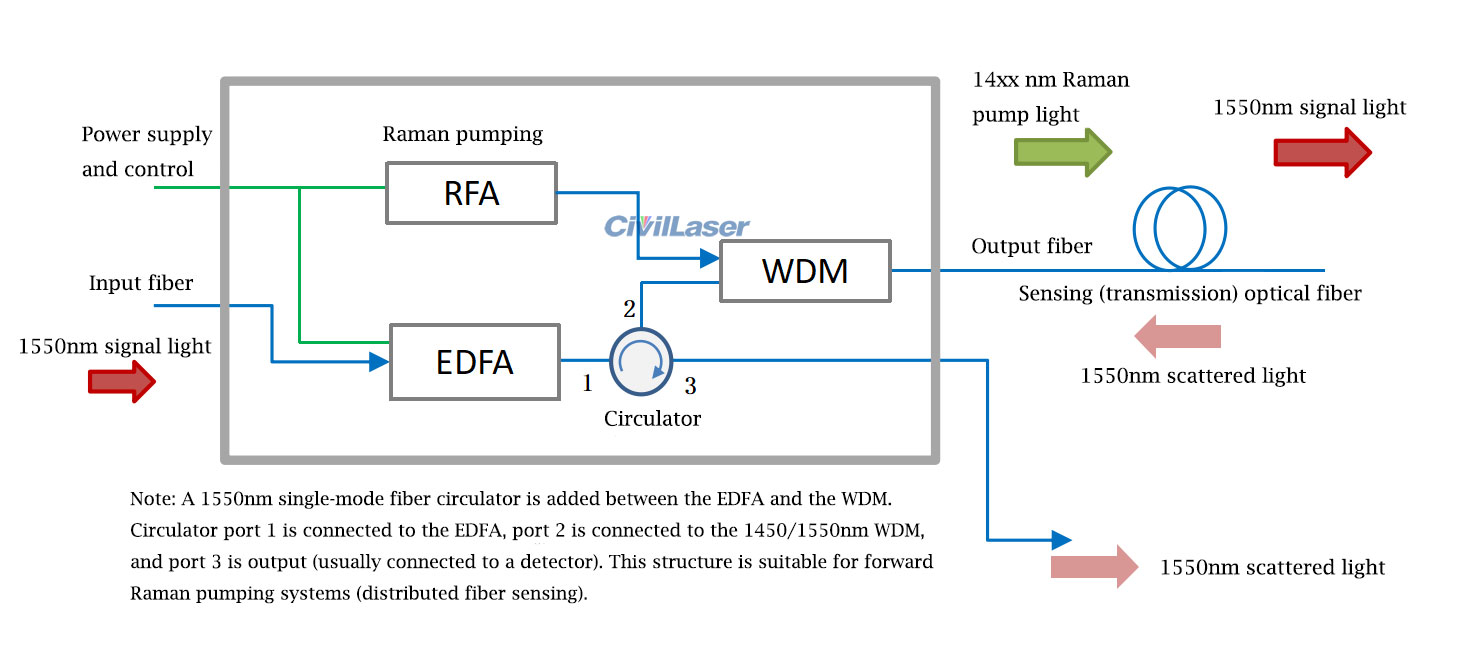

This module integrates both an erbium-doped fiber amplifier and a first-order Raman fiber amplifier pump. Compared with traditional EDFA and Raman amplification systems, the use of this module can significantly reduce system complexity, reduce volume, and improve reliability. Suitable for ultra-long distance large-capacity high-speed optical fiber communications and optical fiber distributed sensing.
[Features]
High integration
High gain factor
Low noise figure
[Application]
Long-distance optical communication network
Fiber Distributed Sensing
Fiber laser
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
HEA-BA-20-1455-500-B
|
|
|
EDFA Optical Index
|
|
Wavelength Range
|
nm
|
1530~1565
|
C-band
|
|
Input Power
|
dBm
|
-6~+3
|
|
|
Saturated Output Power
|
dBm
|
20
|
@-3dBm input
|
|
Noise Figure
|
dB
|
5.0
|
@-3dBm input
|
|
Pigtail Fiber Type
|
--
|
SMF-28 Single Mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Work mode
|
--
|
Automatic Current Control (ACC)/Automatic Power Control (APC)
|
|
|
Raman Pumping Index
|
|
Optical Index
|
Unit
|
Typical value
|
Remarks
|
|
Pump Wavelength
|
nm
|
1425/1435/1455/1465
|
1. The pump wavelength is customized according to the signal wavelength (1425/1435/1455/1465nm)
2. Wavelength accuracy ±5
|
|
Pump Power
|
mW
|
500
|
Maximum power
|
|
Pump Light Polarization Degree(DOP)
|
--
|
5% (Type)，10%(Max)
|
|
|
Pigtail Fiber Type
|
--
|
SMF-28 Single Mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Work mode
|
--
|
Automatic Current Control (ACC)
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
|
Control method
|
Button
|
|
Communication interface
|
DB9 Female(Default not include)
|
|
Power supply
|
AC100~240V, <45W
|
|
Size
|
260(W)×280(D)×120(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
*Note: When the module is installed, the cooling fins are facing upwards, and ensure that sufficient cooling air is blown along the cooling fins.
