Single-mode Optical Fiber Amplifier 33dBm 2W L-Band EDFA EYDFA-L-HP-BA-33-SM-B Desktop Type
The L-band high-power erbium-doped fiber amplifier is based on the principle of stimulated amplification of optical signals in erbium-doped fiber. It adopts efficient single-mode fiber optical amplification design and high-power laser heat dissipation technology to achieve high-power output of 1570~1605nm wavelength laser. It has the advantages of high power and low noise and can be used in fiber optic communication systems, fiber optic sensing, laser radar, etc.
[Features]
High output power .
High gain factor.
Low noise.
[Applications]
Fiber communication
Fiber optic sensing
Lidar
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
EYDFA-L-HP-BA-33-SM-B
|
|
|
Wavelength Range
|
nm
|
1570~1605
|
L-band
|
|
Input Power
|
dBm
|
-6~+10
|
|
|

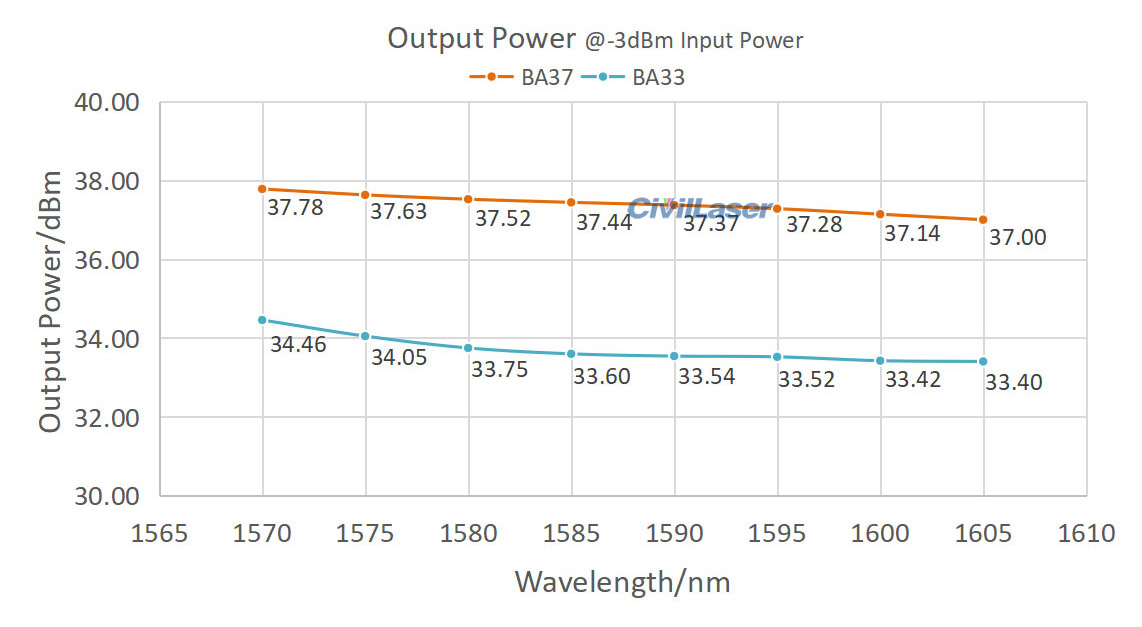

Saturated Output Power
|
dBm
|
33
|
@-3dBm input
|
| Output Power Adjustable Range |
-- |
10%~100%
|
|
|
Noise Figure
|
dB
|
<6.0
|
@-3dBm input
|
|
Polarization Dependent Gain
|
dB
|
≤0.5
|
|
|
Polarization Mode Dispersion
|
ps
|
0.5
|
|
|
Input/Output Isolation
|
dB
|
>35
|
|
|
Optical Power Monitoring
|
--
|
Input, output optical power monitoring
|
|
|
Pigtail Fiber Type
|
--
|
SMF-28 single-mode fiber
|
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
|
Work Mode
|
--
|
ACC / APC
|
*Note1
|
|
Electrical and environmental parameters
|
DeskTop Type
(Current product)
|
Module Type
|
|
Control Method
|
Button
|
RS232 Serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
AC 100~240V
|
DC 12V, 3A
|
|
Size
|
260(W)×320(D)×120(H)mm
|
139(W)×235(D)×70(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
*Note1:
ACC mode - automatic current control: The EDFA pumping operating current is set by the user and automatically locked by the EDFA to achieve a constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is suitable for all EDFA models.
APC mode - automatic power control: The signal light output power of the EDFA is set by the user, the PD automatically monitors and feeds back the output power, the EDFA control and the adaptive adjustment pump achieve the stability of the output signal. When the input optical power fluctuates, the APC mode minimizes the fluctuation of the output power and is suitable for power type and line type EDFA.
