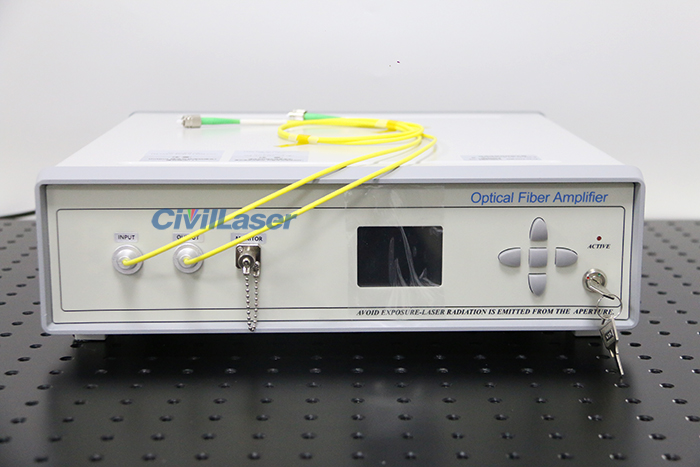

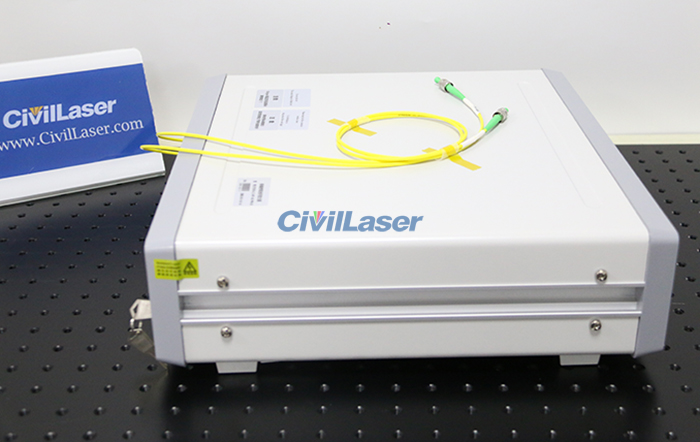

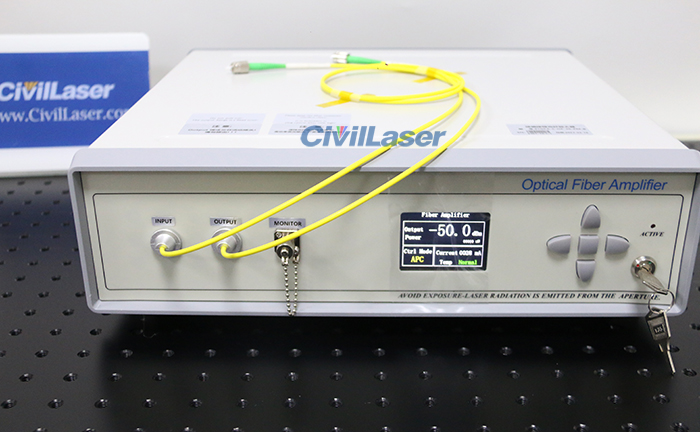

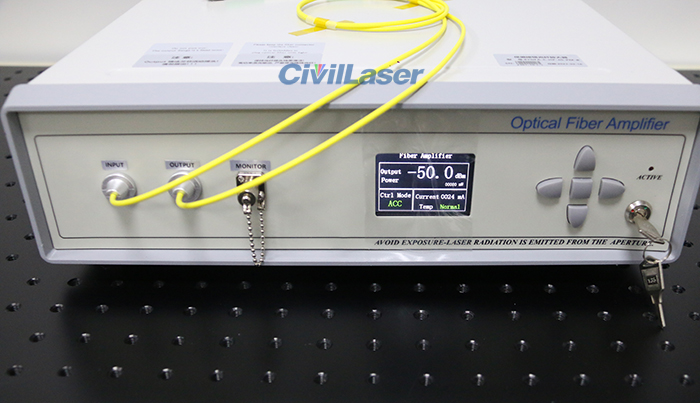

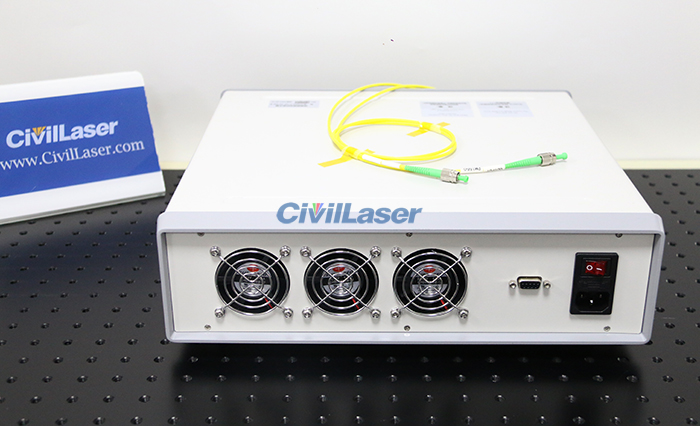

10 Watt C-Band EDFA Polarization-Maintaining Amplifier 40dBm High-Power PM Optical Amplifier EYDFA-C-HP-BA-40-PM-B Desktop Type
The high-power polarization-maintaining erbium-doped fiber amplifier is based on the polarization-maintaining double-clad erbium-doped fiber amplification technology. It adopts a unique fiber packaging process and a reliable high-power laser protection design to achieve high-power laser polarization-maintaining output in the wavelength range of 1540~1565nm. It has the advantages of high power, high extinction ratio and low noise, and can be used for fiber optic communication, laser radar, etc.
[Features]
High output power.
High gain factor.
Full polarization maintaining optical path.
[Applications]
Optical fiber communication
Fiber optic sensing
Laser radar
[Specification]
Parameters
|
Unit
|
Typical Value
|
Remarks
|
Model
|
--
|
EYDFA-C-HP-BA-40-PM-B
|
|
Wavelength Range
|
nm
|
1535~1565
|
C-band
|
Input power
|
dBm
|
-6~+10
|
|

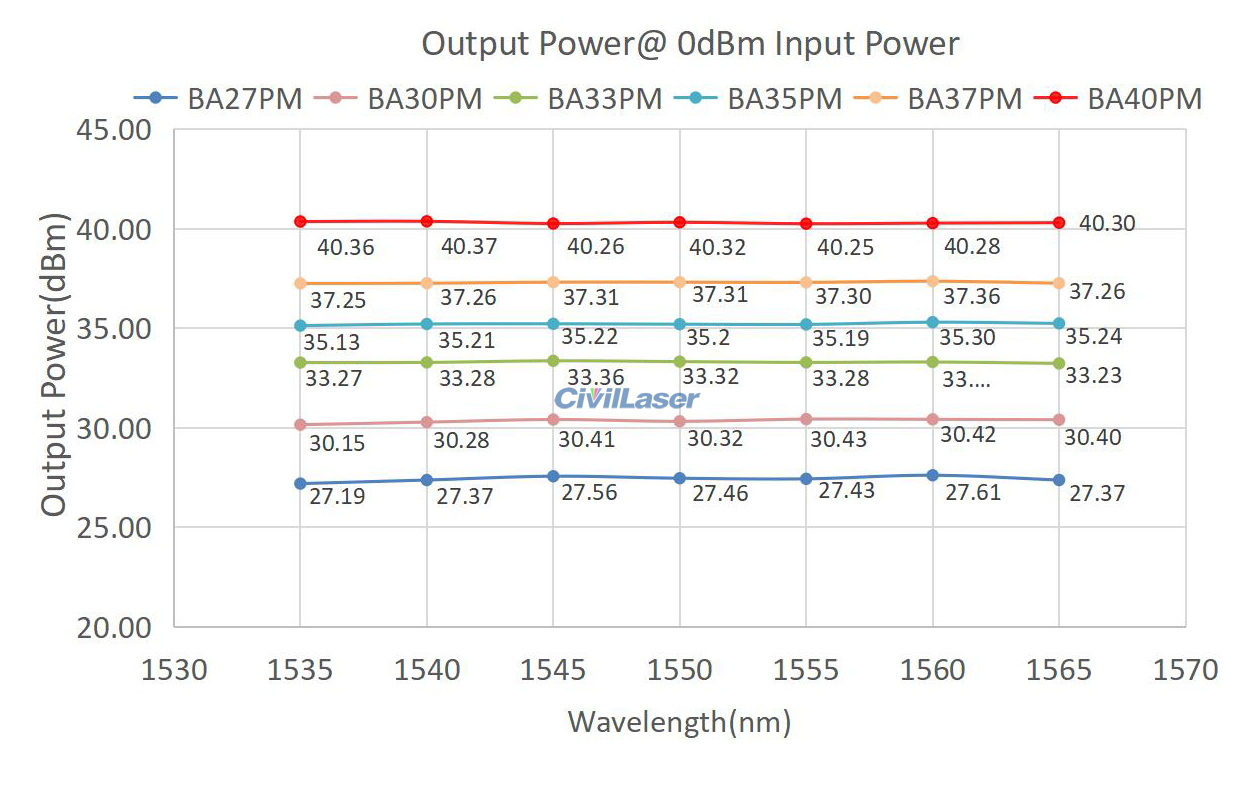

Saturated Output Power
|
dBm
|
≥40
|
@0dBm input power
|
Output power adjustment range
|
-
|
10%~100%
|
|
Noise Figure
|
dB
|
<6.0
|
@0dBm input power
|
Polarization Extinction Ratio
|
dB
|
23(Type),20(Min)
|
|
Input/Output Isolation
|
dB
|
>35
|
|
Pigtail Fiber Type
|
--
|
PM1550 polarization maintaining fiber
|
L=1m
|
Fiber Interface Type
|
--
|
FC/APC
|
Slow axis alignment slot.
|
Work Mode
|
--
|
Automatic current control (ACC) / Automatic Power Control (APC)
|
|
Electrical and environmental parameters
|
DeskTop Type
(Current product)
|
Module Type
|
Control method
|
Button
|
RS232 Serial communication
|
Communication interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
Power supply
|
AC 100~240V
|
DC 12V, 13A
|

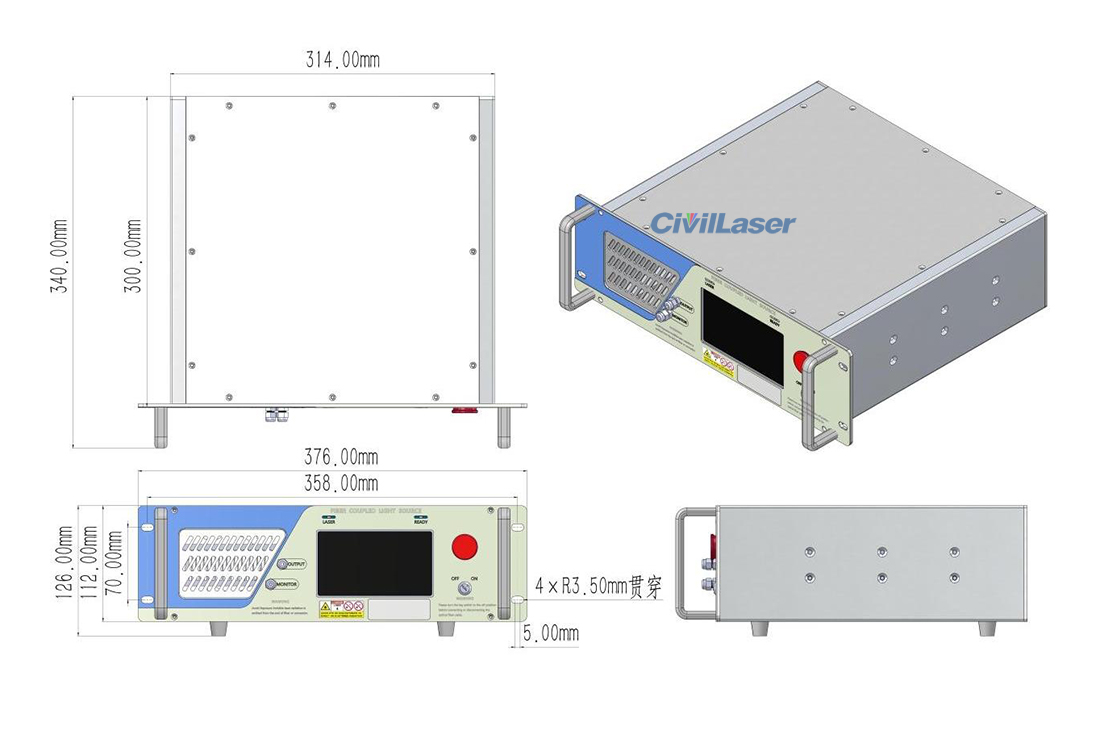

Size
|
260(W)×320(D)×120(H)mm
|
139(W)×235(D)×70(H)mm
|
Operating temperature range
|
-5~+35°C
|
Operating humidity range
|
0~70%
|
