532nm 500mW High Power Green Laser Module Dot (LSR532NL)

Green Laser Module Dot

Product 51/82

Return to the Product List

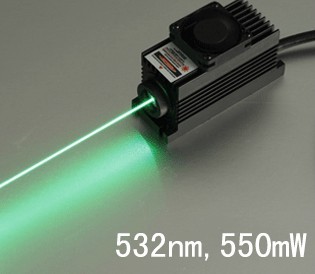

532nm 500mW High Power Green Laser Module Dot (LSR532NL)

larger image

$638.00

Add to Cart:

SPECIFICATIONS:

Model: LSR532NL

Output Wavelength: 532nm

Spatial mode: Near TEM00

Output Power: 500mW~550mW

Operating mode: CW or Modulation

Residual infrared(946, 1064&808nm): <0.1%

Laser Shape: Circular, aspect ratio<1.1:1

Spatial Stability: <0.05 mrad

Beam Diameter1/e2): <2 mm

Beam Divergence(full angle): <1 mrad

Power Stability: <±5% per 4 hrs

Temperature Stability: TEC

Warming-up Time: <1 minutes

Life: 10,000 hrs

Frequency mondulation: 0~30khz Analog (Default) or TTL

Size: 100(L)x40(W)x50(H)mm3 (fan adds 15mm height)

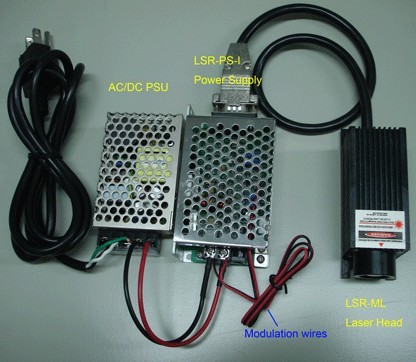

Power supply LSR-PS-I: 100(L)x58(W)x32(H)mm3
