EDFA-C-PA-45-SM-B Pre-Amplifier Fiber Amplifier C-Band 45dB SM Fiber Desktop type

EDFA-C-PA-45-SM-B Pre-Amplifier Fiber Amplifier C-Band 45dB SM Fiber Desktop type

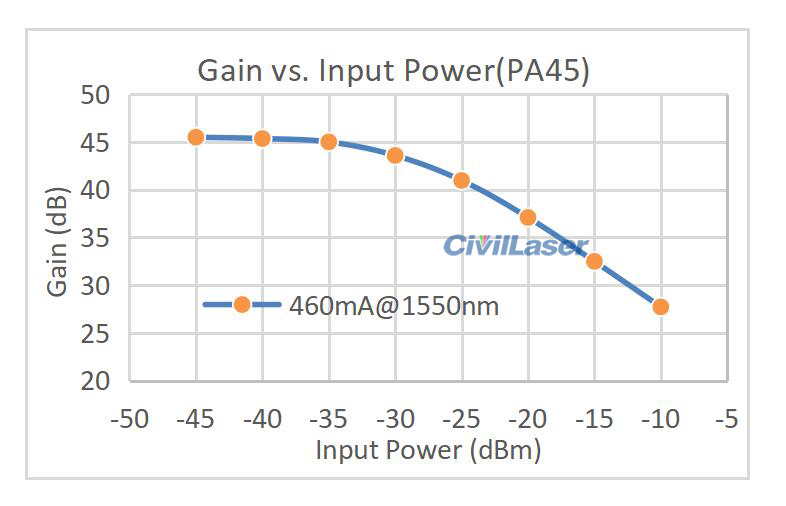

C-band erbium-doped fiber small-signal amplifier (PA amplifier for short) is an amplifier dedicated to C-band weak optical signals in the range of -45dBm ~ -25dBm. The typical small signal gain is as high as 35~45 dB, and it has a low noise index. , usually used in front of a photodetector to improve its ability to detect weak light signals.

There are two types EDFA.(Current product is Pre-Amplifier type.)
Pre - Amplifier, referred to as PA, that is preamplifier, used in the -45dBm ~ -25 dBm range of small light signal amplification, typical gain of 35 dB;
Booster - Amplifier, referred to as BA, is used to enhance the power of the optical signal in the range of - 6 ~ +10 dBm, with a maximum output power of 27 dBm;


[Characteristic]
high reliability
Wide operating wavelength range
High gain, gain flatness is good
High output power
Good temperature adaptability

[Application]
Optical fiber communication
Optical fiber sensor
Optical fiber laser

[Specifications]



Note:

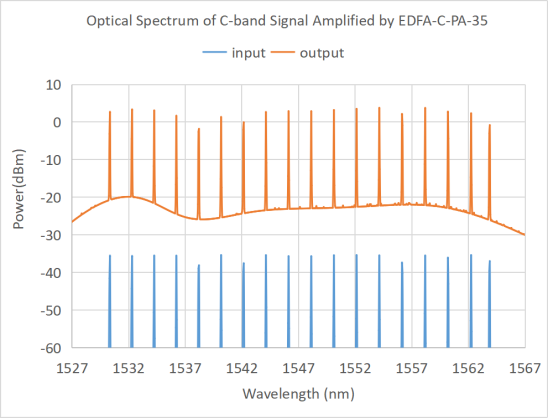

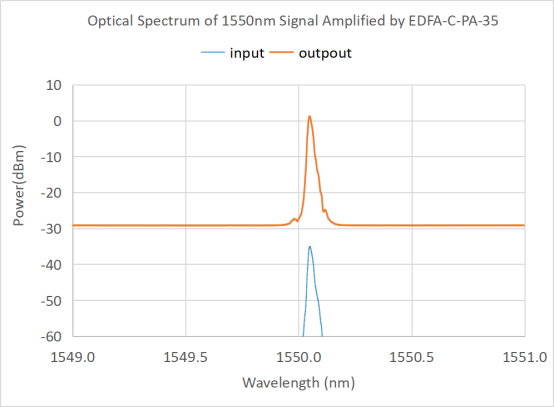

This EDFA product is designed for single wavelength signal input within the operating wavelength range, regardless of the gain spectrum flatness when multiple wavelengths are input simultaneously. As shown below, the EDFA-C-PA-35 small signal amplifier can achieve high gain amplification for input signals of different wavelengths in the C-band (multiple wavelengths are not simultaneously input to the EDFA in the figure), and the input power of a single wavelength is -35dBm , the effective gain is greater than 35dB, and the amplified signal-to-background noise ratio is greater than 30dB.
