1mJ~10J 808nm Laser Energy Meter Laser Hair Removal Apparatus Strong Pulse Dedicated

1mJ~10J 808nm Laser Energy Meter Laser Hair Removal Apparatus Strong Pulse Dedicated

[Features]
Model: IPL-808-10J
Laser energy measurement range: 1J-10J

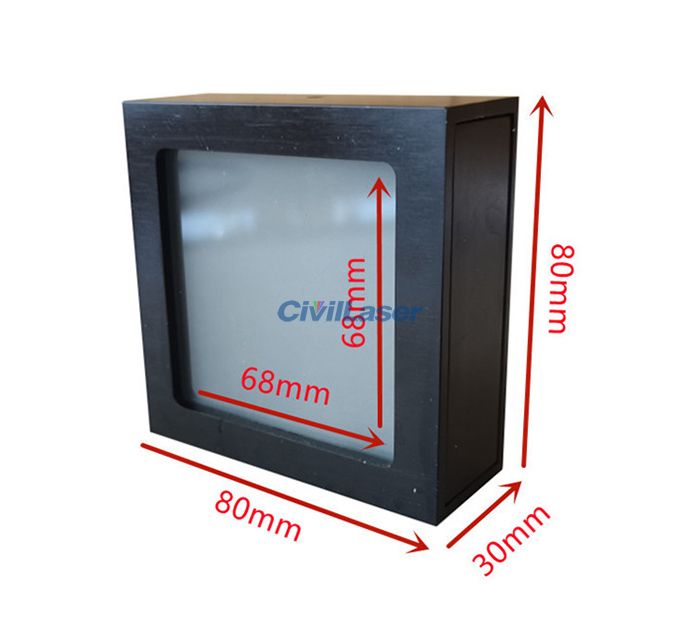

Probe receiving hole size: 65X25mm
Wavelength range: 350nm-2500nm
Measurement uncertainty: 5%

Instructions:

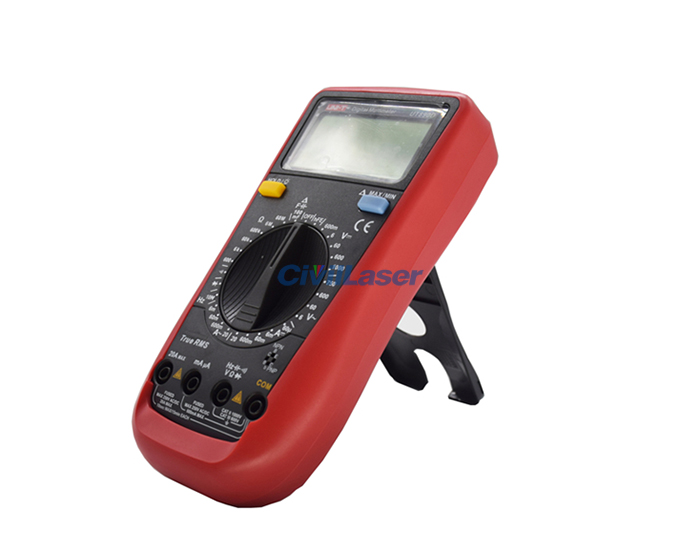

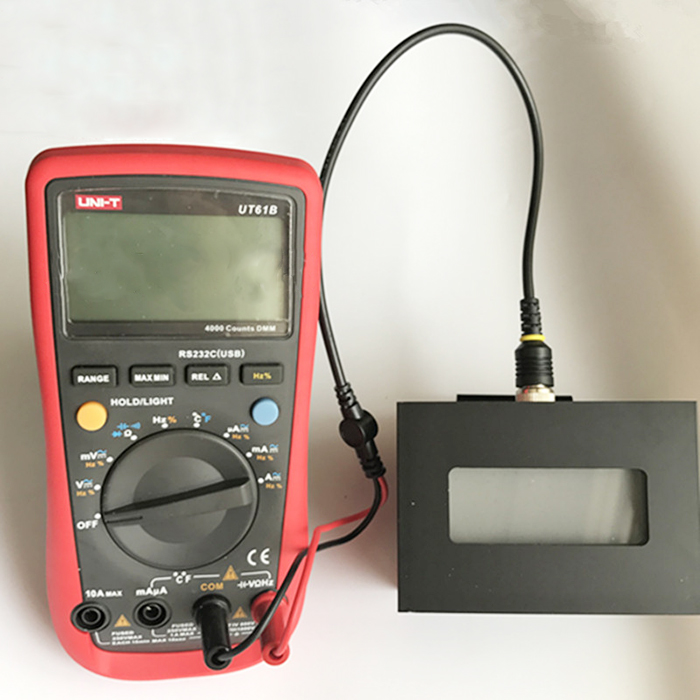

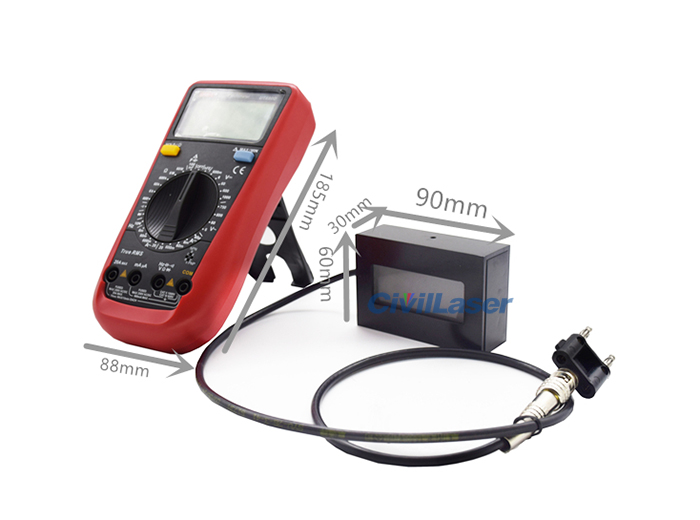

1. Connect the signal wire with the probe and the digital multimeter (the signal wire BNC connects one end to the probe and the other end to the digital multimeter. The protruding end of the conversion connector is connected to the COM jack of the digital multimeter, and the other end is connected to the HzV jack of the digital multimeter) .
2. Turn on the power of the digital multimeter.
3. Adjust the appropriate DC voltage measurement gear (usually 600mV can be used when it is below 600J).
4. After waiting for the displayed data to stabilize, press the "MAX MIN" key three times to keep the multimeter in the state of holding the maximum and minimum values.
5. Trigger the light pulse, at this time the multimeter displays the monotonously rising data. After 5 seconds, the displayed value reaches the peak value and is maintained by the multimeter.
6. Read the MAX-MIN displayed by the meter, which is the measured energy value.
7. After the measurement, press the "MAX MIN" key and keep it pressed for 3 seconds to make the multimeter exit the maximum and minimum holding state, observe the multimeter data, wait for its stable display and no monotonous decline, repeat Step 4 to Step 6 measure again.
