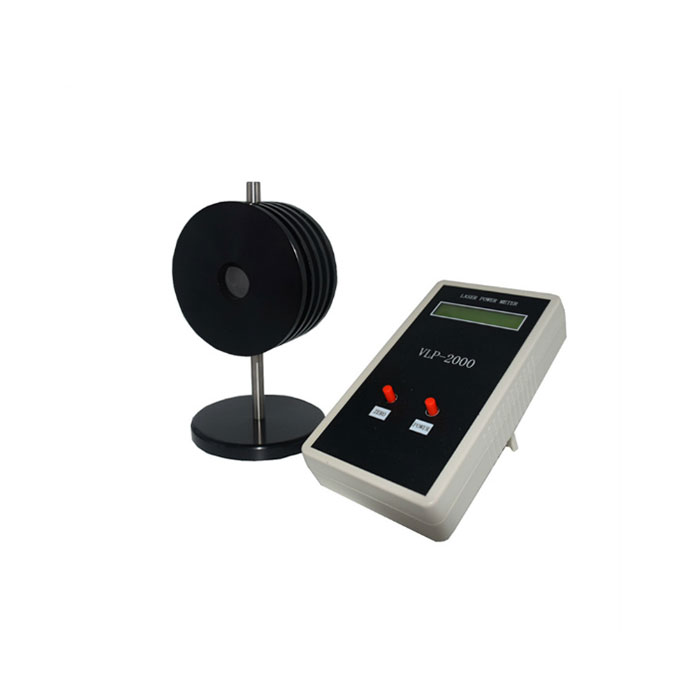

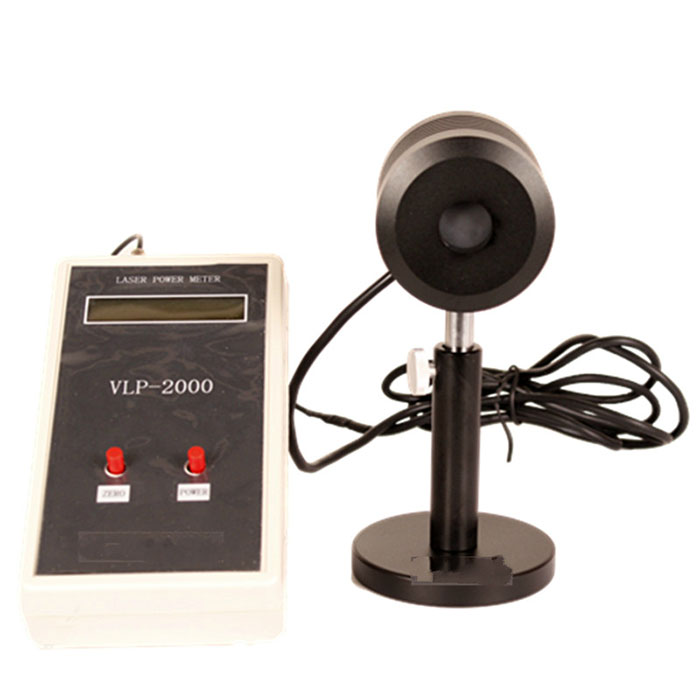

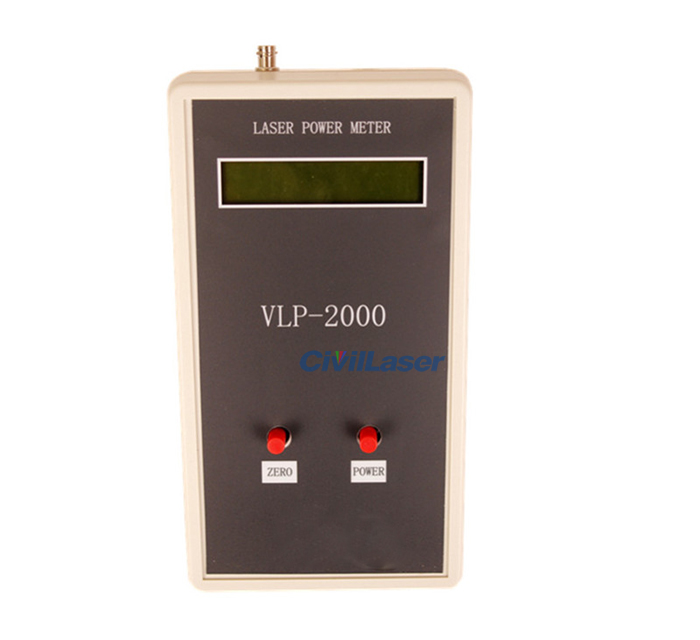

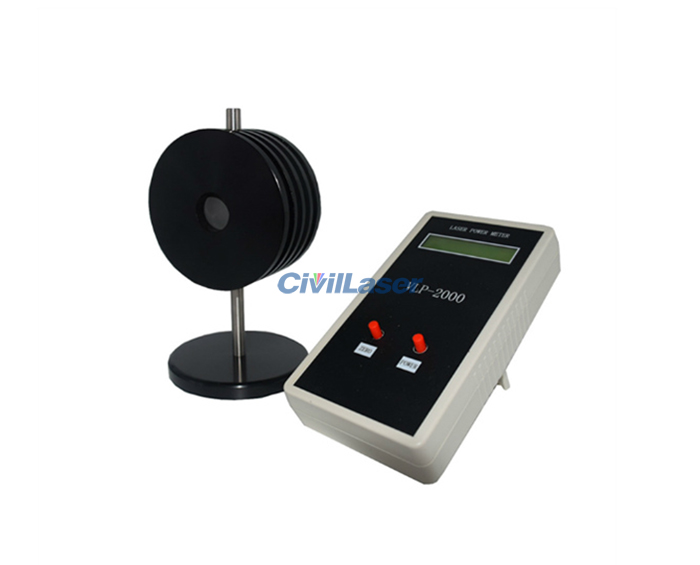

1mW Resolution 10mW~50W 11nm~19000nm High Accuracy Laser Power Meter
Our laser power meter has the characteristics of stable operation, accurate measurement, small size and long service life. Based on the calorimetric principle, it not only has the advantages of good optical uniformity, extremely insensitive to the influence of the laser polarization state and incident angle, etc., but also has a relatively high ability to resist laser damage.
Measuring Laser Type:
Fiber laser, semiconductor laser, solid state laser, CO2 laser, CW laser, YAG, helium neon and infrared laser, etc.
[Features]
Wide spectral response range.
Damage threshold: 15KW/cm²
High stability.
[Specification]
Parameters |
Value |
Model |
VLP-2000-50W |
Wavelength Range |
11nm~19000nm |
Calibration Wavelength |
532nm/635nm/1064nm ... (Customizable) |
Resolution |
1mW |

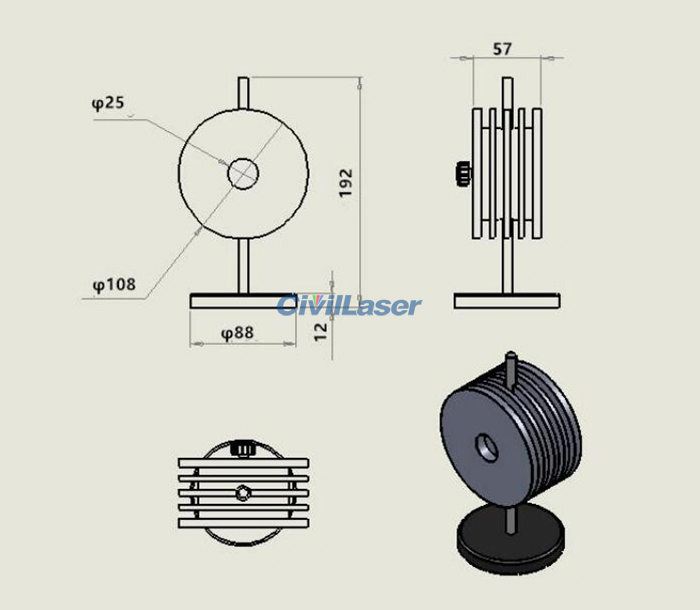

The Detector's Receiving Aperture Size |
Φ25mm |
Absorber |
Flat |
Signal Line Length |
1m |
Measuring Power Range |
0.1~50W |
Measurement Uncertainty |
±5% |
Cooling Mode |
Natural cooling |
Power Adapter |
AC110 ~ 220V, 50HZ |
Power Dissipation |
3W |
Warranty |
1 year |
