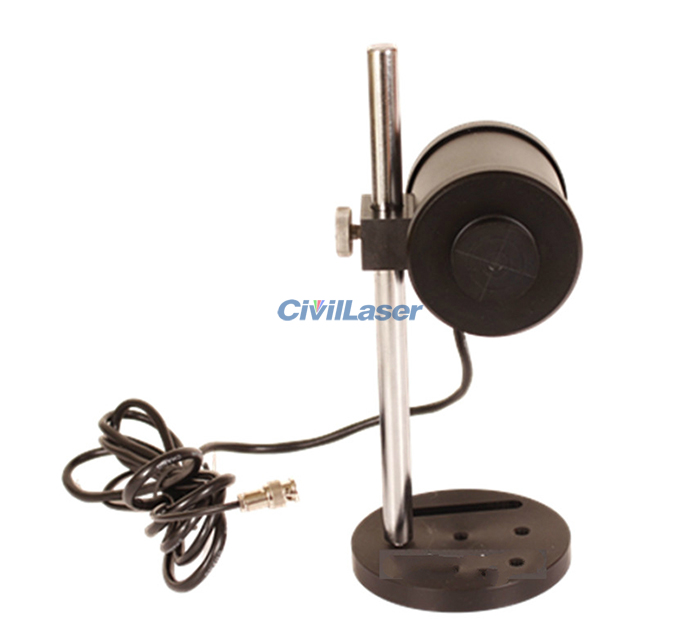

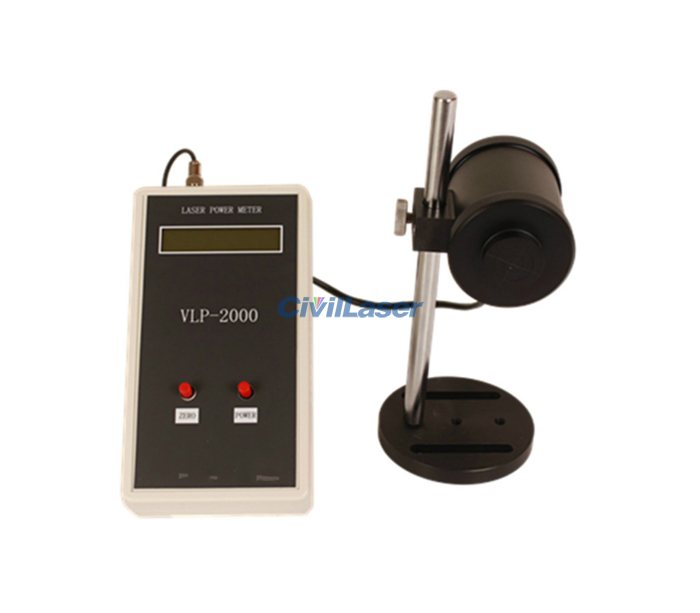

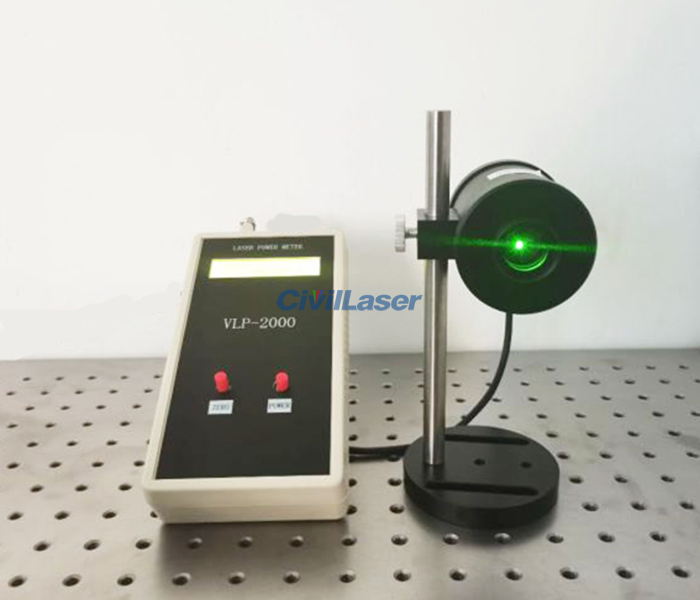

11nm~19000nm 5mW~5000mW CW Laser Power Meter Full Wavelength Measurement
Our laser power meter has the characteristics of stable operation, accurate measurement, small size and long service life. Based on the calorimetric principle, it not only has the advantages of good optical uniformity, extremely insensitive to the influence of the laser polarization state and incident angle, etc., but also has a relatively high ability to resist laser damage.
Measuring Laser Type:
Fiber laser, semiconductor laser, solid state laser, CO2 laser, CW laser, YAG, helium neon and infrared laser, etc.
[Features]
Wide spectral response range.
Damage threshold: 15KW/cm²
High stability.
[Specification]
| Parameters |
Value |
| Model |
VLP-2000-5W |
| Wavelength Range |
11nm~19000nm |
| Calibration Wavelength |
532nm/635nm/1064nm ... (Customizable) |
| Resolution |
1mW |

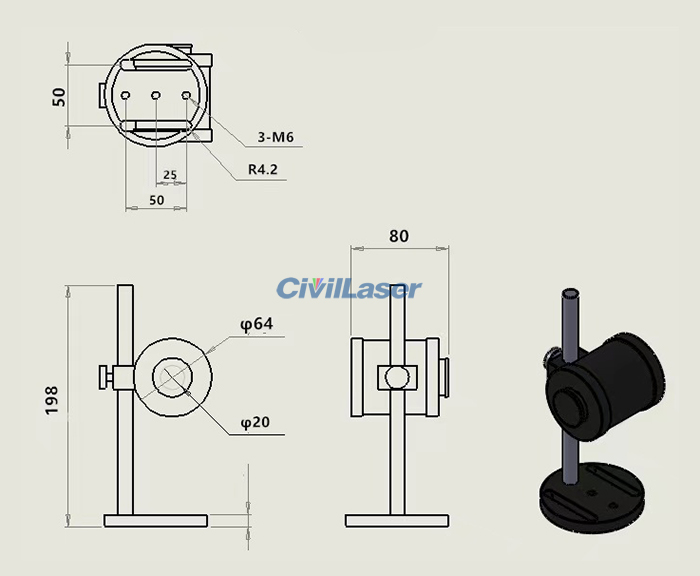

| The Detector's Receiving Aperture Size |
Φ20mm |
| Absorber |
Flat |
| Signal Line Length |
1m |
| Measuring Power Range |
0.02~5W |
| Measurement Uncertainty |
±5% |
| Operating Temperature |
0 ~ 40°C |
| Cooling Mode |
Natural cooling |
| Power Adapter |
AC110 ~ 220V, 50HZ |
| Response Time |
3~5s |
| Power Dissipation |
3W |
| Warranty |
1 year |
