405nm 460nm 630nm 780nm 850nm 980nm 1064nm 3mm PM Fiber Patch Cord FC/APC-FC/UPC

Starting at: $82.00

Please Choose:



Add to Cart:


405nm 460nm 630nm 780nm 850nm 980nm 1064nm 3mm PM Fiber Patch Cord FC/APC-FC/UPC

Polarization-maintaining optical fiber transmits linearly polarized light and is widely used in various fields of the national economy such as aerospace, aviation, navigation, industrial manufacturing technology, and communications. In the optical fiber sensor based on optical coherent detection, the use of polarization-maintaining fiber can improve the coherent signal-to-noise ratio to achieve high-precision measurement of physical quantities.

[Features]
Low insertion loss
High extinction ratio
High return loss
High stability and reliability

[Applications]
Fiber laser
Fiber Optic Sensor
Communication Systems
Test instrument
Polarization Maintaining Fiber System

[Specification]

Parameters Unit Value
Center Wavelength nm 405, 460, 630, 780, 850, 980 1064 (Choose)
Max.Insertion Loss dB 0.30
Min.Extinction Ratio dB 23
Min.Return Loss dB 50
Alignment Type   Slow axis to the key
Connector Type   FC/APC - FC/UPC
Fiber Type   PM fiber
Pigtail Type   3mm loose tube (yellow)
Fiber Length m 1.0
Max.Optical Power (CW) mW 300
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85

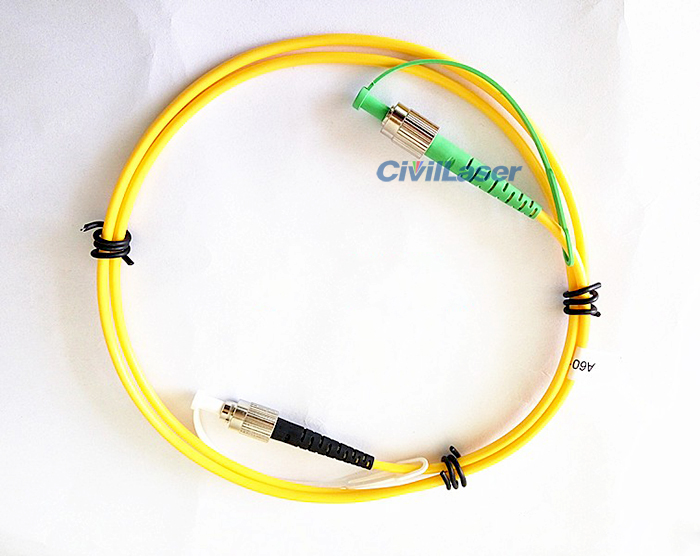

PM fiber patchcord

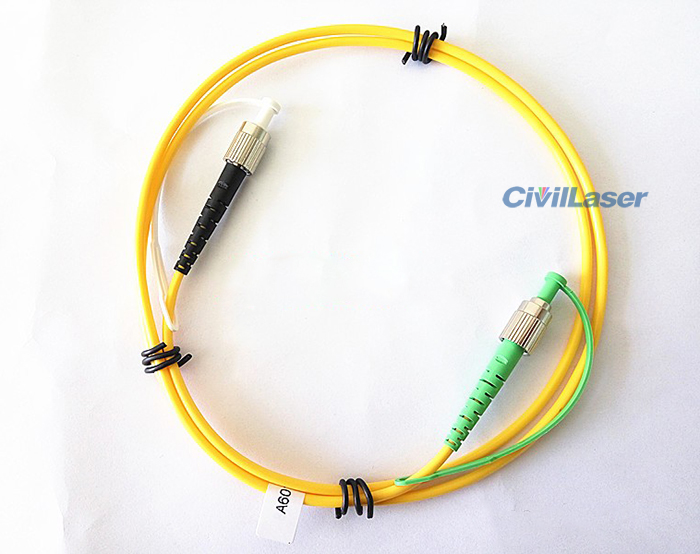

PM fiber patchcord
