1550nm PM Fiber Patch Cord FC/APC-FC/UPC Fiber Optic Cable Special Fiber

Polarization-maintaining optical fiber transmits linearly polarized light and is widely used in various fields of the national economy such as aerospace, aviation, navigation, industrial manufacturing technology, and communications. In the optical fiber sensor based on optical coherent detection, the use of polarization-maintaining fiber can improve the coherent signal-to-noise ratio to achieve high-precision measurement of physical quantities.

[Features]
Low insertion loss
High extinction ratio
High return loss
High stability and reliability

[Applications]
Fiber laser
Fiber Optic Sensor
Communication Systems
Test instrument
Polarization Maintaining Fiber System

[Specification]

Parameters Unit Value
Center Wavelength nm 1550
Max.Insertion Loss dB 0.30
Min.Extinction Ratio dB 23
Min.Return Loss dB 60
Alignment Type   Slow axis to the key
Connector Type   FC/UPC-FC/APC (Can be customized.)
Fiber Type   PM1550 fiber
Pigtail Type   900μm loose tube (red)
Fiber Length m 1.0
Max.Optical Power (CW) mW 500
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85

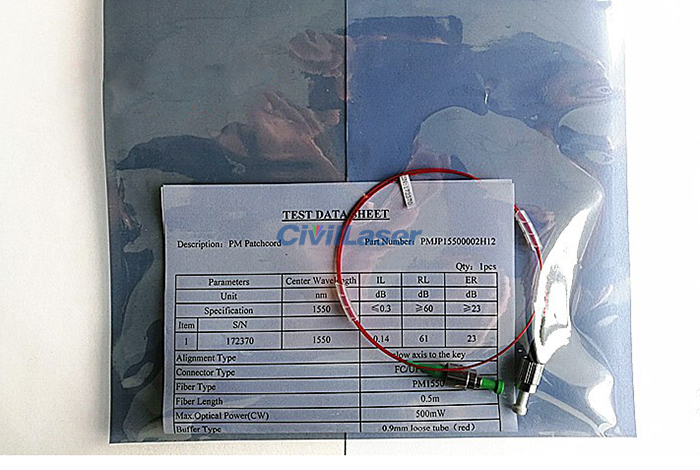

PM fiber patchcord

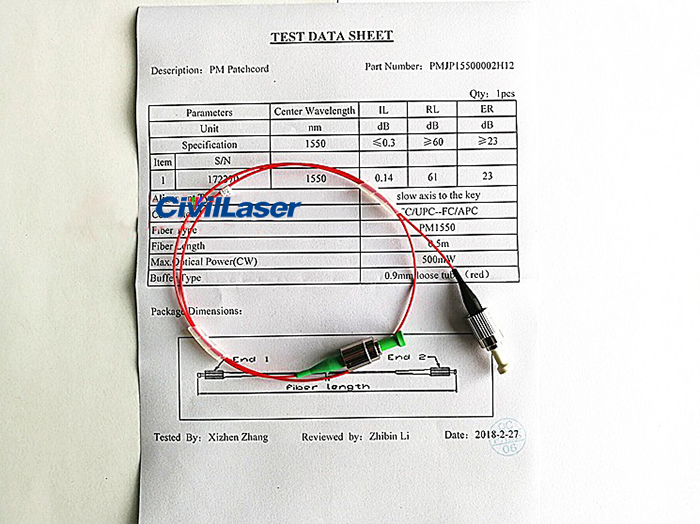

PM fiber patchcord

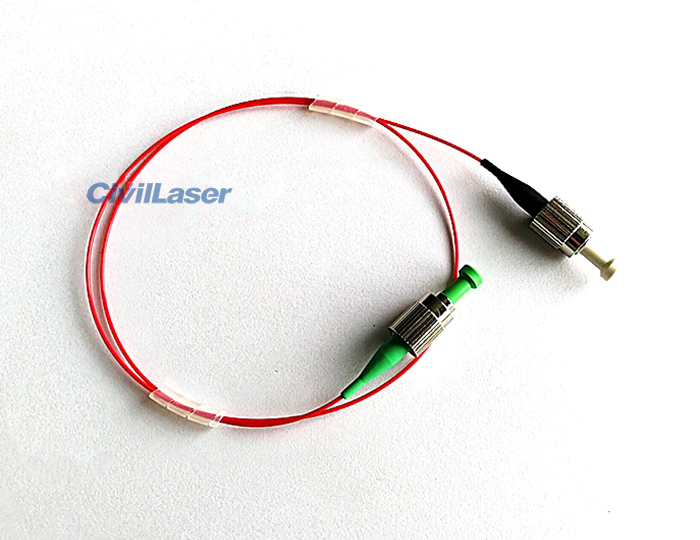

PM fiber patchcord

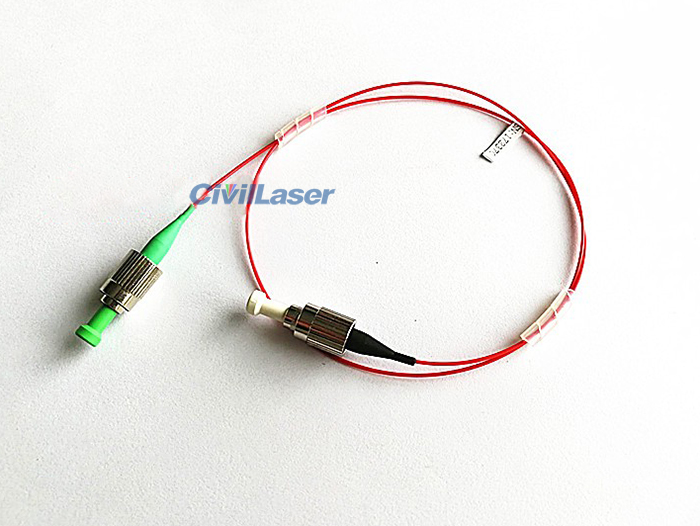

PM fiber patchcord
