850nm/980nm/1064nm/1550nm/2000nm Polarization Maintaining Polarizer PM Fiber Analyzer Slow Axis Working
The polarization-maintaining fiber in-line polarizer (analyzer) is designed to pass linearly polarized light and block random polarized light. It can also be used to enhance the extinction ratio of polarized signals. The maximum working wavelength range is up to 50nm, and the high polarization extinction ratio is extremely suitable for fiber network and polarization measurement, especially polarization analysis, control and monitoring. It is widely used in polarization-maintaining fiber amplifiers, polarization-maintaining fiber lasers and other products.
*CivilLaser can also provide depolarizers, please contact us if you need it.
[Features]
High extinction ratio
High return loss
Low insertion loss
High reliability
High stability
[Applications]
Optical fiber communication system
Optical test instrument
Fiber optic sensing
Scientific research

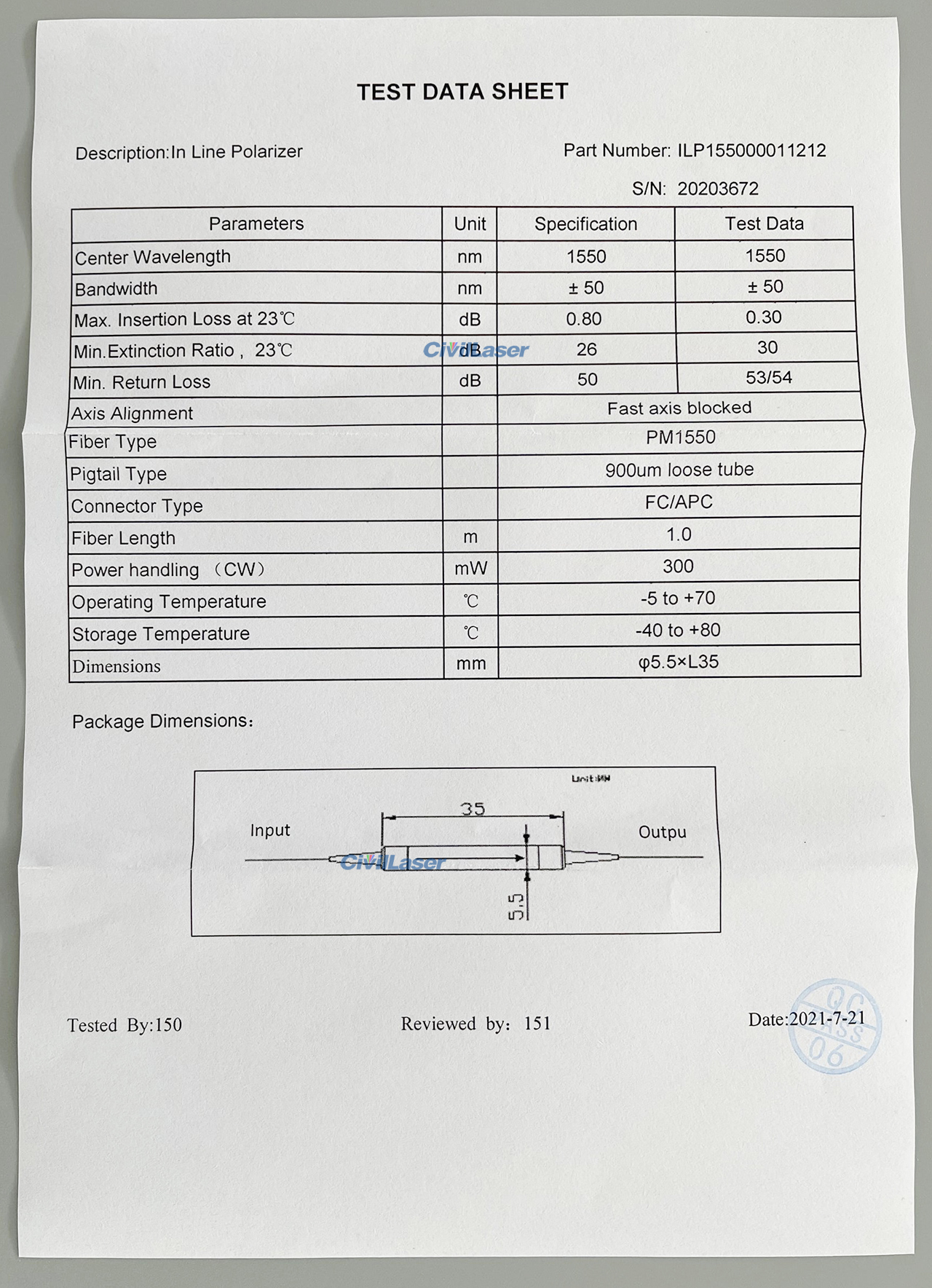

[Specification]
| Parameters |
Unit |
Value |
| Center Wavelength (Choose) |
nm |
1550 |
1064 |
980 |
850 |
| Bandwidth |
nm |
±50 |
±30 |
±10 |
±10 |
| Typical Insertion Loss @ 23℃ |
dB |
0.3 |
0.4 |
0.7 |
0.8 |
| Max.Insertion Loss @ 23℃ |
dB |
0.5 |
0.6 |
0.9 |
1.0 |
| Min.Return Loss |
dB |
50 |
50 |
50 |
50 |
| Typical Extinction Ratio @ 23℃ |
dB |
30 |
30 |
28 |
28 |
| Min.Extinction Ratio @ 23℃ |
dB |
28 |
28 |
25 |
25 |
| Max.Optical Power (CW) |
mW |
300 |
| Max. Tensile Load |
N |
5 |
| Fiber Type for Input & Output |
|
SM-SM or SM-PM or PM to PM |
| Operating Temperature |
℃ |
-5 ~ +70 |
| Storage Temperature |
℃ |
-45 ~ +85 |
Note:
1. Above specifications are for device without connector.
2. For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
3. The default connector key is aligned to slow axis.
