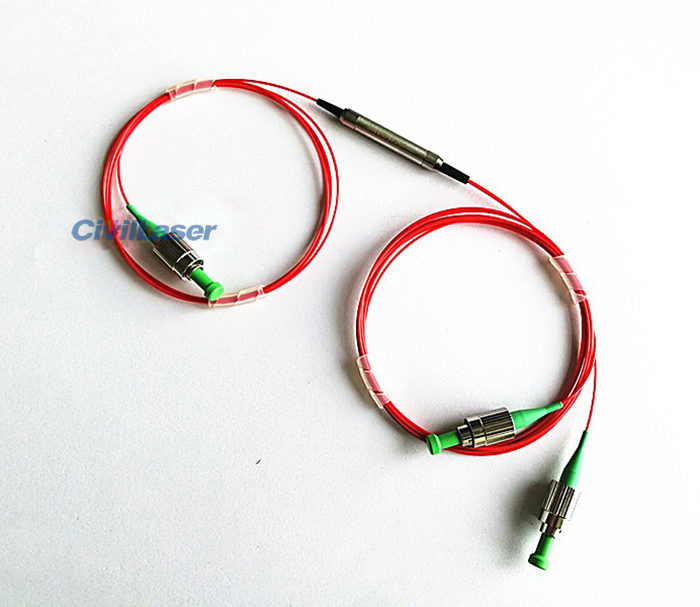

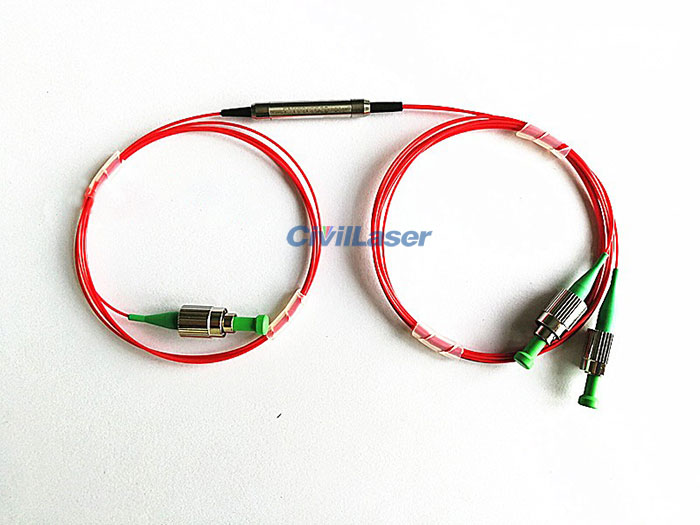

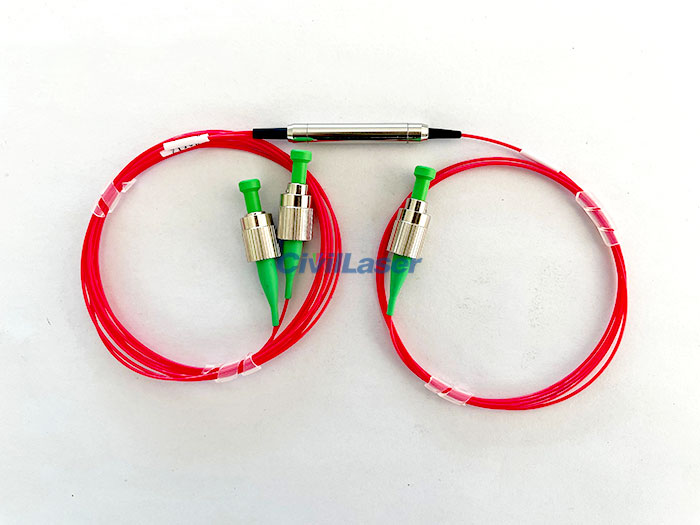

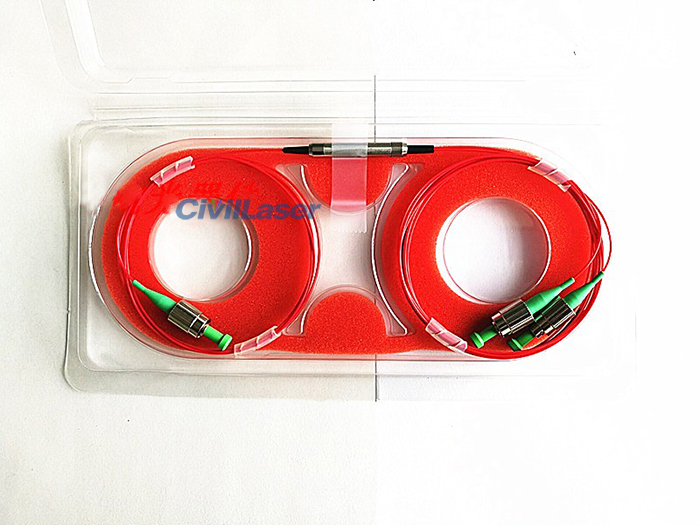

1x2 Three Ports PM1550 Polarization Maintaining Fiber Circulator Fast and slow dual-axis work
The polarization-maintaining optical circulator is a three-port polarization-maintaining optical fiber device for the directional transmission of optical signals. The biggest feature is that the optical signal can only be transmitted in a specific direction, and it has a great difference in reverse application. The device has a very wide range of applications in the field of optical fiber sensing and coherent detection.
[Features]
Low insertion loss
High return loss
[Applications]
Fiber optic equipment
Fiber Optic Sensor
Coherent detection
Research areas
[Specifications]
| Parameter |
Unit |
Typical Value |
| Type |
|
Type A |
Type B |
| Center Wavelength |
nm |
1064 / 1310 / 1550 (Choose) |
| Operating Bandwidth |
nm |
± 30 |
± 20 |
| Min.Isolation |
dB |
40 |
20 |
| Typical Isolation |
dB |
46 |
30 |
| Peak Isolation |
dB |
52 |
40 |
| Typical Insertion Loss |
dB |
0.7 |
0.6 |
| Max.Insertion Loss |
dB |
0.9 |
0.8 |
| Min.Return Loss |
dB |
55 |
55 |
| Min.Extinction Ratio |
dB |
22 |
20 |
| Min.Crosstalk |
dB |
50 |
| Axis Alignment |
|
Fast and slow dual-axis working |
| Fiber Type |
|
PM fiber, 900μm loose tube (red) |
| Connector Type |
|

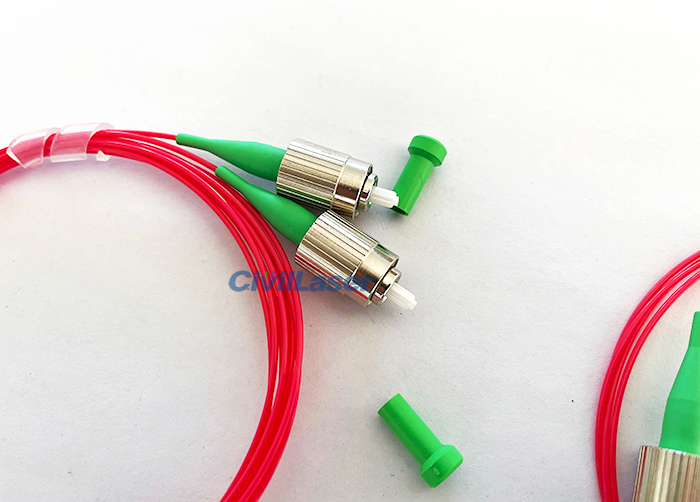

FC/APC, FC/UPC (Choose) |
| Fiber Length |
m |
1.0 |
| Max. Optical Power (CW) |
mW |
500 |
| Max. Tensile Load |
N |
5 |
| Pigtail Type |
|
Panda type PM fiber |
| Operating Temperature |
°C |
-5~+70 |
| Storage Temperature |
°C |
-40 ~ +85 |
