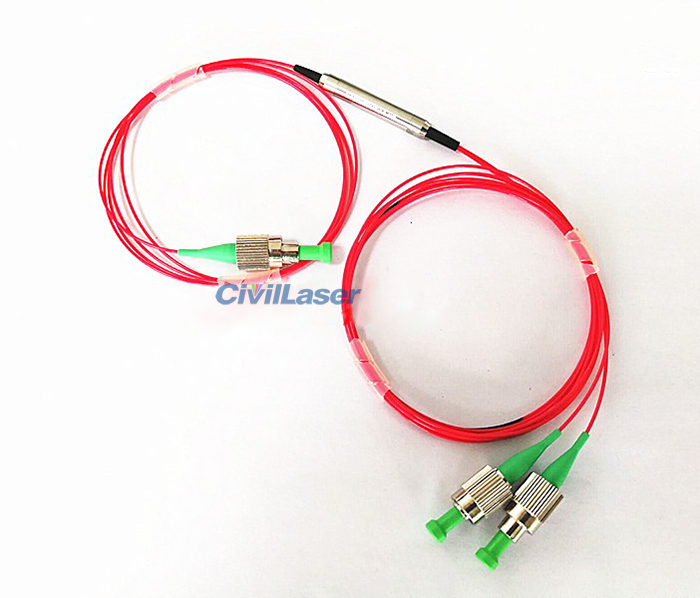

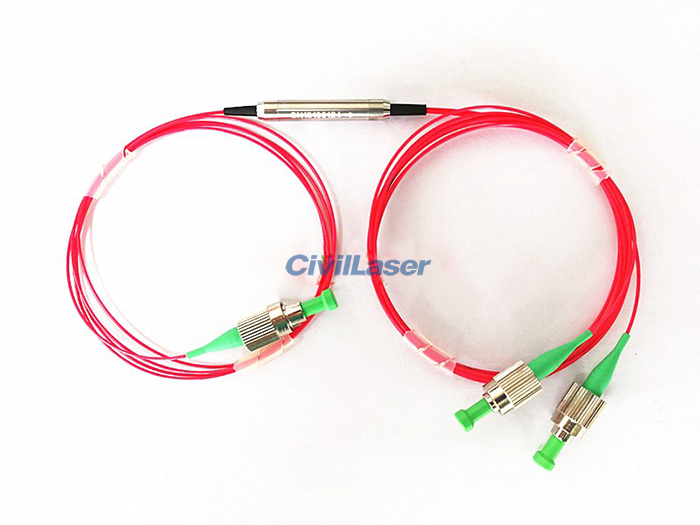

1X2 PM Fiber Coupler 1550nm PM Filter Coupler FC/APC Slow Axis Steel Tube Encapsulation
The filter-type polarization-maintaining coupler uses interference-type filters to not only split the light beam from the input PM fiber into two output PM fibers, but also combine the light of two PM fibers into one PM fiber. This device can be used to separate high-power linearly polarized light into multiple channels without changing the linear polarization. It can also be used as a power splitter to monitor the signal power of the PM fiber system without changing the polarization state of the optical signal.
[Features]
Low Insertion Loss
High return loss
[Applications]
Fiber amplifier
Fiber laser
Fiber Sensor
[Test Data Sheet]
| Parameter |
Unit |
Specification |
Test Data |
| Center Wavelength |
nm |
1550 |
1550 |
| Operating Bandwidth |
nm |
±40 |
±40 |
| Tap Ratio |
% |
5 |
5 |
| Max.Insertion Loss (Port3-Port1/2) |
dB |
/ |
0.73/13.68 |
| Min.Extinction Ratio (Port3-Port1/2) |
dB |
20 |
22/23 |
| Min.Return Loss |
dB |
45 |
50 |
| Min.Directivity |
dB |
50 |
55 |
| Axis Alignment |
|
Fast axis blocked |
| Connector Type |
|
FC/APC |
| Pigtail Type |
|
900μm loose tube (red) |
| Fiber Type |
|
PM1550 |
| Fiber Length |
m |
1.0 |
| Max. Optical Power (CW) |
mW |
500 |
| Max. Tensile Load |
N |
5 |
| Operating Temperature |
°C |
-5~+70 |
| Storage Temperature |
°C |
-40 ~ +85 |

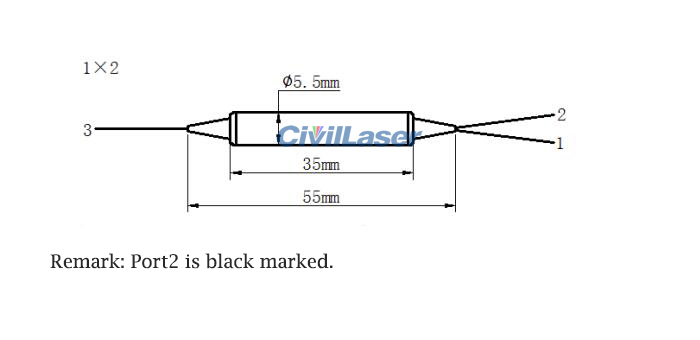

| Dimensions |
mm |
φ5.5 × L35 |
