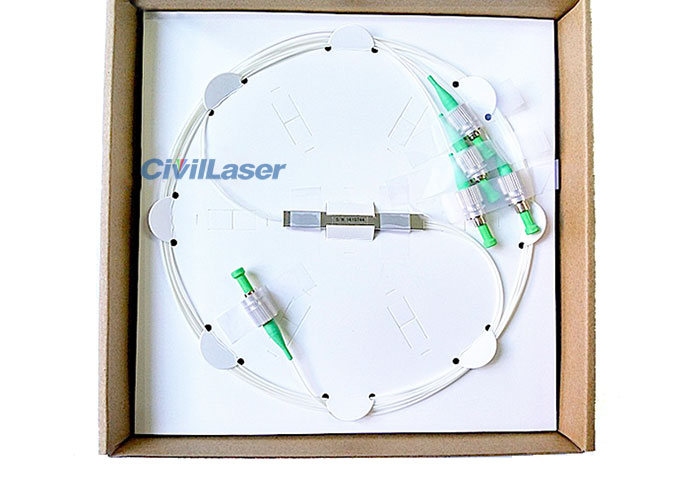

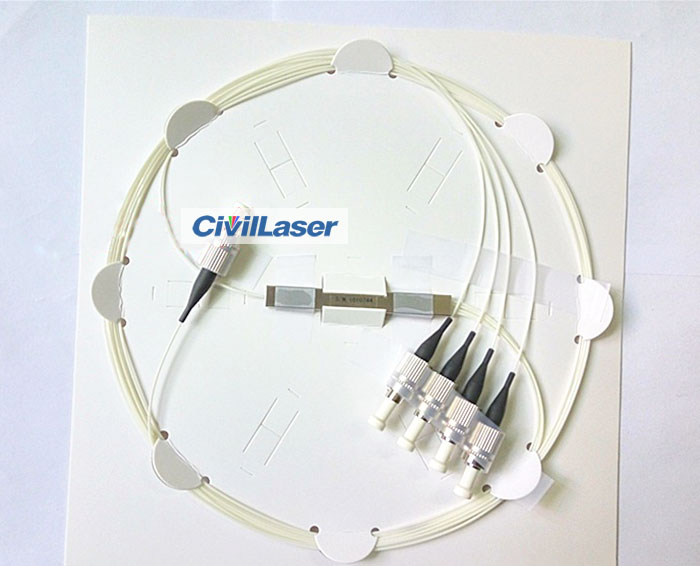

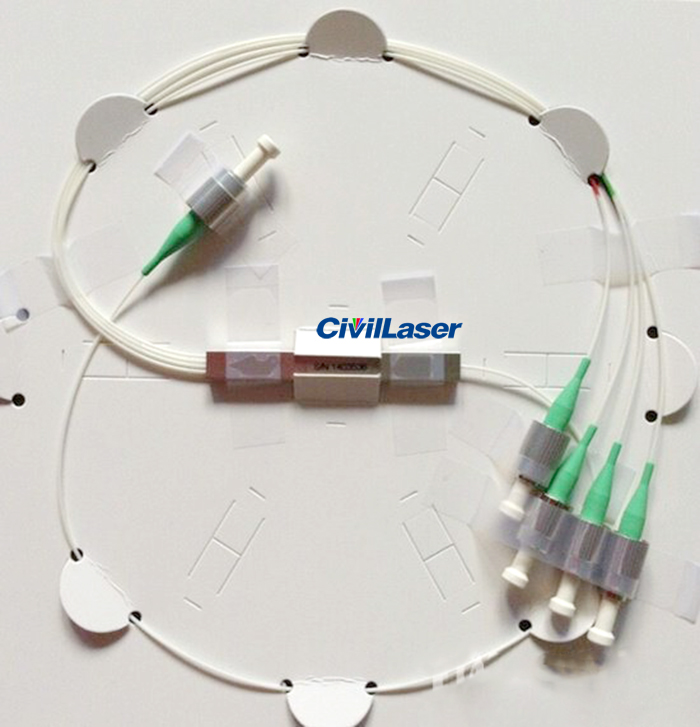

1X4 PM Fiber Coupler 1310nm 1550nm Polarization-maintaining Splitter Slow Axis

1X4 PM Fiber Coupler 1310nm 1550nm Polarization-maintaining Splitter Slow Axis

[Specification]
Product Name: PM Fiber Coupler
Center Wavelength: 1310nm / 1550nm (Choose)
Operating Bandwidth: ±40nm
Max. Insertion Loss: 6.64dB
Max. PDL: 0.09dB
Min. Extinction Ratio: 20dB
Min. Return Loss: ≥50dB
Uniformity: 0.07dB
Fiber Type: PM1550
Pigtail Type: 900μm loose tube
Fiber Length: 1.0m
Connector Type: FC/APC (Default), FC/UPC (Customizable)
Operating Temperature: -5 ~ 60°C
Package Size: 60*7*4 mm
