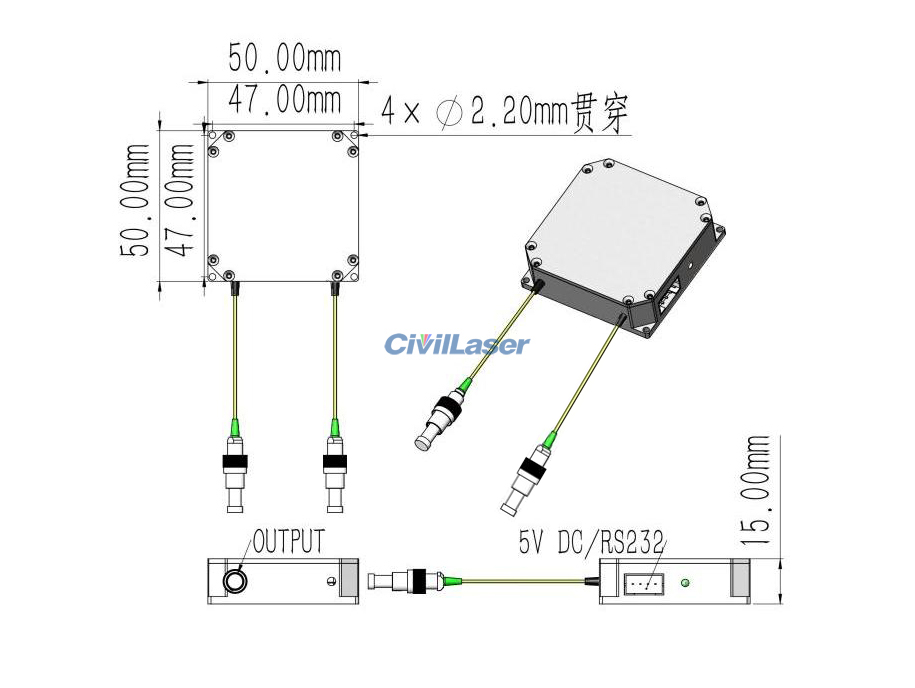

Min & Micro EDFA Module C-Band EDFA-C-BA-13-SM-Mic 13dBm 20mW 50x50x15mm

Min & Micro EDFA Module C-Band EDFA-C-BA-13-SM-Mic 13dBm 20mW 50x50x15mm

The erbium-doped fiber power amplifier micro module can be used to amplify the power of laser signals in the wavelength range of 1530~1565nm. It also adopts a unique miniaturized packaging design and has the advantages of high gain, low noise and small size. It is very suitable for use in narrow space conditions. application.

[Features]
Wide wavelength range
High output power
Low noise

[Applications]
Optical Fiber Communication
Fiber optic sensing
Fiber laser

[Specifications]

*Note1:
ACC mode - automatic current control: The EDFA pumping operating current is set by the user and automatically locked by the EDFA to achieve a constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is suitable for all EDFA models.
APC mode - automatic power control: The signal light output power of the EDFA is set by the user, the PD automatically monitors and feeds back the output power, the EDFA control and the adaptive adjustment pump achieve the stability of the output signal. When the input optical power fluctuates, the APC mode minimizes the fluctuation of the output power and is suitable for power type and line type EDFA.
