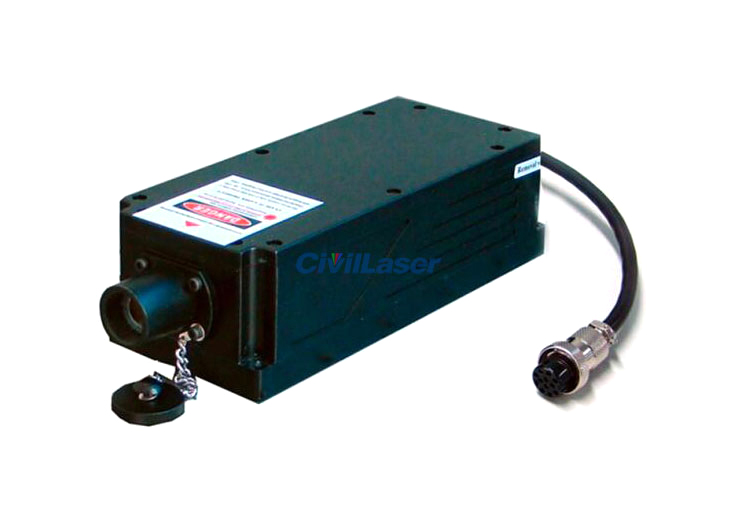

561nm 30mW Yellow Green LD Pumped Solid-state Laser

Low noise yellow green laser at 561nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis, etc.

[Specification]

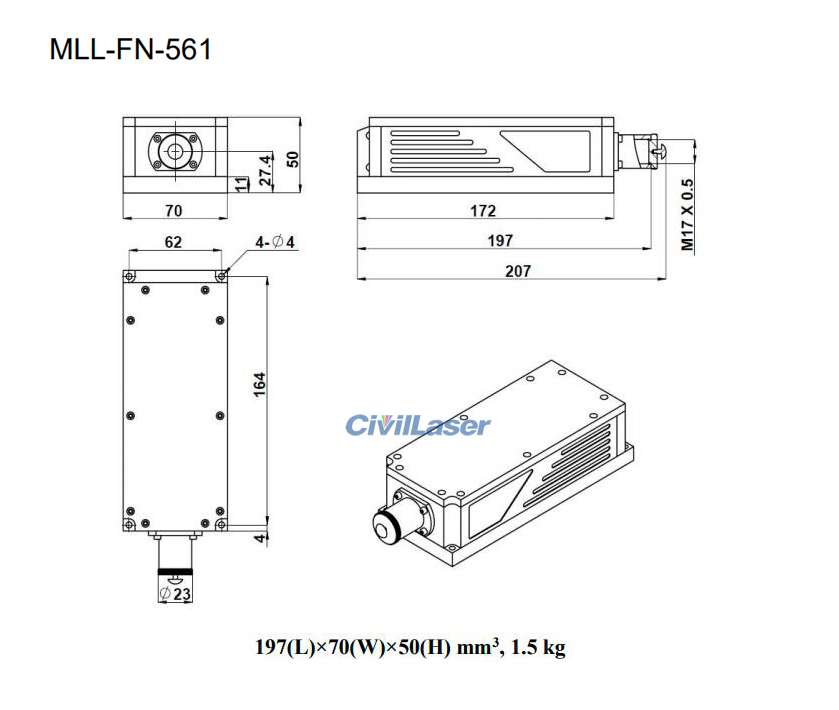

Model MLL-FN-561
Wavelength(nm) 561±1
Operating mode CW
Output power (mW) 30mW (1~400mW can be customized)
Power stability (rms, over 4 hours) <3%
Transverse mode Near TEM00
M² factor <1.2
Modulation TTL / 1KHz
Noise of amplitude (rms, 20Hz~20MHz) <1%
Beam diameter at the aperture (1/e², mm) ~2.0
Beam divergence, full angle (mrad) <1.5
Polarization ratio >100:1 Vertical±5 degree (Horizontal Optional)
Warm-up time (minutes) <10
Pointing stability after warm-up (mrad) <0.05
Beam height from base plate (mm) Near 27.4
Operating temperature (℃) 10~35

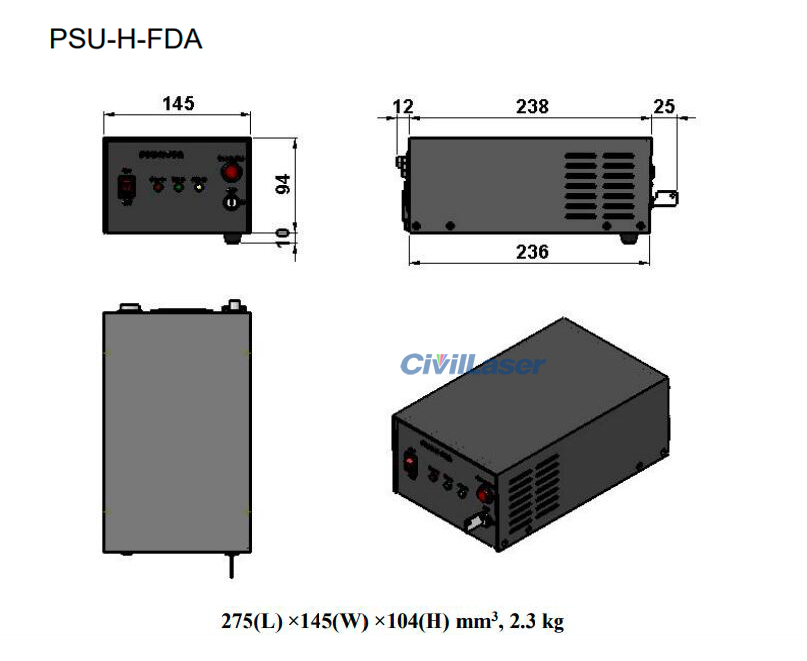

Power supply (90-264VAC) PSU-H-FDA
Expected lifetime (hours) 10000
Warranty 1 year
Note The laser head needs to be used on a heat sink with good heat dissipation.
