355nm 1~150mW Q-Switched Laser LD Pumped All-Solid-State UV Laser
All solid state 355nm UV laser is made features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.
Note:
The price only corresponds to the default value MPL-Q-355-5uJ@10KHz.
If you need customized parameters, please contact us.
[Specifications]
| Wavelength(nm) |
355±1 |
| Operating mode |
Frequency conversion of Q-switched pulsed laser |
| Max average power (mW) |
1~150 |
| Single pulse energy (µJ) |
0.1~15 |
| Pulse duration (ns) |
~4 |
~1.3 |
| Peak power(W) |
25~3750 |
75~11000 |
| Rep. rate (kHz) |
FIXED |
Specified One rep. rate, such as 3kHz, 4kHz, 5kHz with stable laser pulses emitting (stable pulse energy, peak, duration and period). |
| EXT TRIG |
Different rep. rate in the range of 3kHz-5kHz can be obtained by input an external TTL signal |
| QCW |
Undefined rep. rate among 9k-12kHz and unstable laser pulse emitting. Suitable for the applications only needing high peak power pulses |
| Average power (mW) |
Average power (mW) = Single pulse energy (µJ) * Rep. rate (kHz)
Default value:
Single pulse energy: 5uJ
Repeat rate: 10KHz
Average output power 10000Hz * 5 µJ)/1000 = 50mW |
| Ave power stability (over 4 hours) |
<5%, <10% |
| Transverse mode |
Near TEM00, Elliptical |
| Beam diameter at the aperture(mm) |
<1.2mm |
| Warm-up time (minutes) |
<10 |

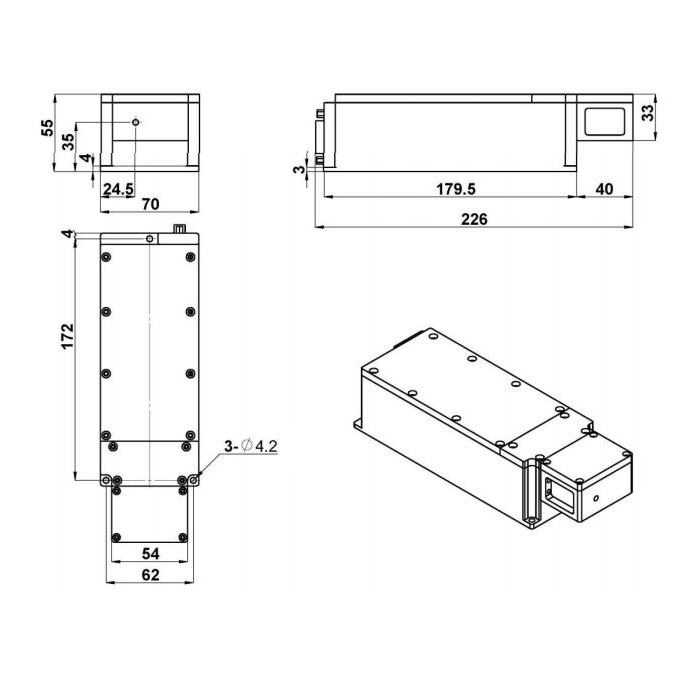

| Beam height from base plate (mm) |
Near 35 |
| Operating temperature (℃) |
10~35 |

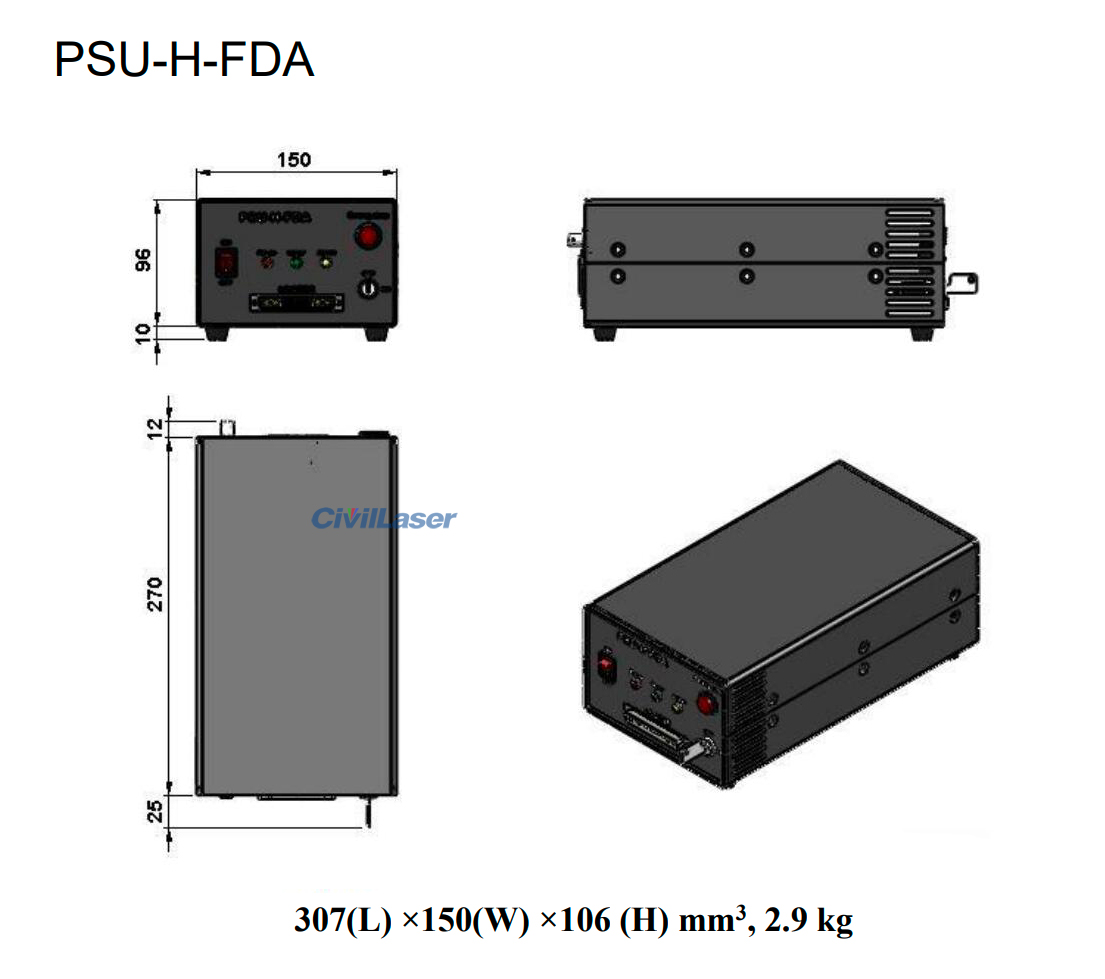

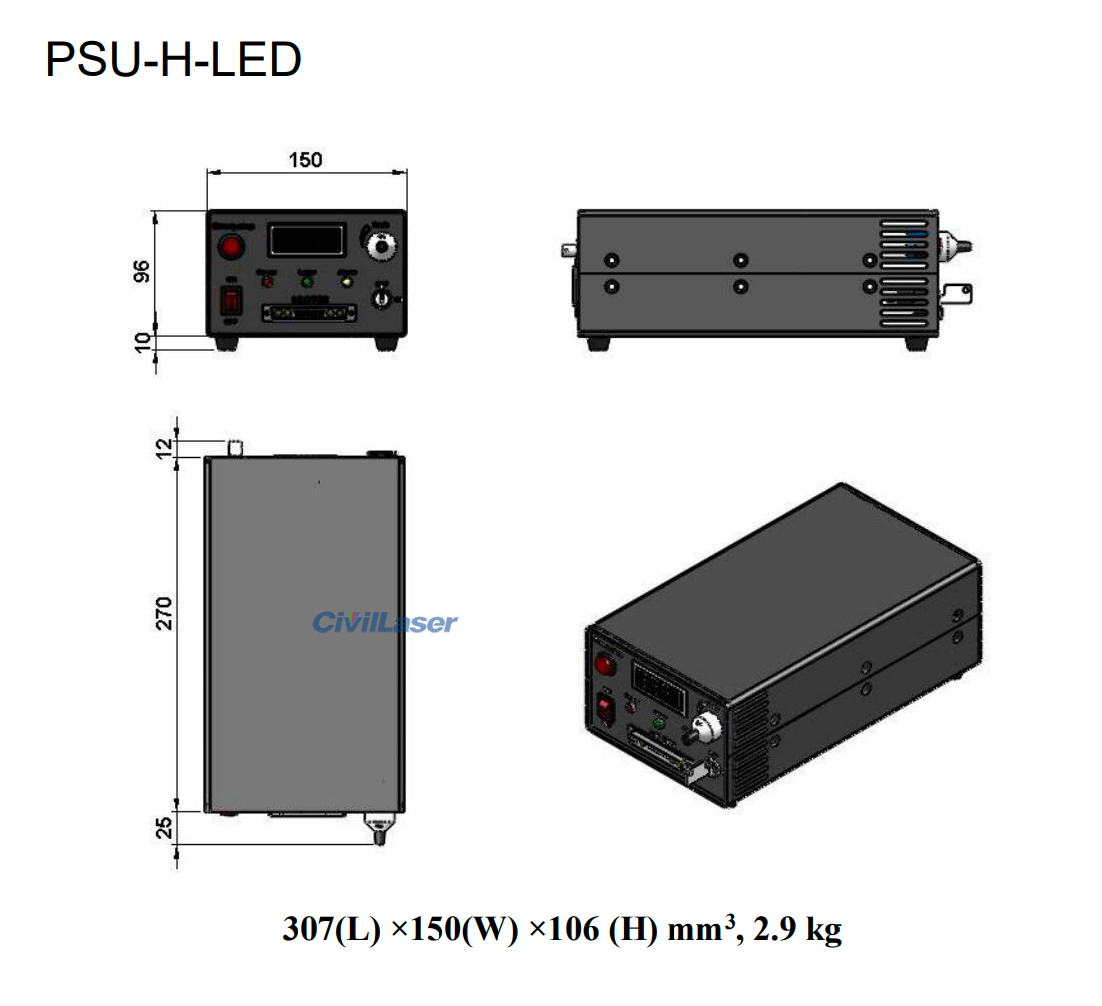

| Power supply (90-264VAC) |
PSU-H-LED/PSU-H-FDA |
| Expected lifetime (hours) |
5000 |
| Warranty period |
1 year |
| Lead time |
About 6 weeks. |
| Remarks |
Please Note:
1) because of the Walk-off effect of Nonlinear crystals, the beam quality of UV laser is not so good as that of 1064/532nm laser.
2) The laser head needs to be used on a heat sink with good heat dissipation. |
