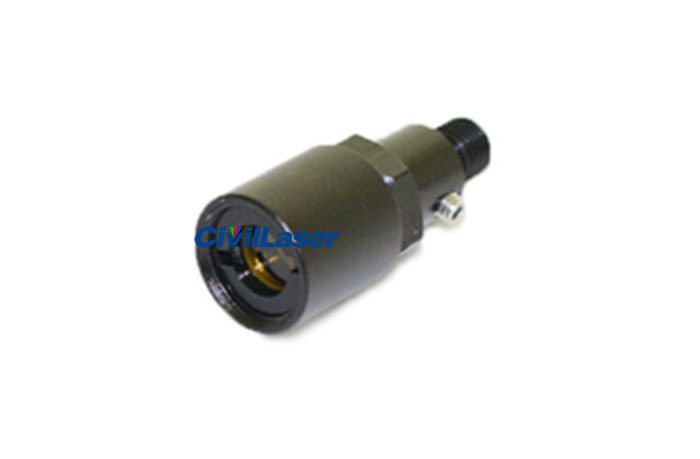

200~2500nm Filter Retention Lens Φ14mm Collimator Coupling Loading Filter

200~2500nm Filter Retention Lens Φ14mm Collimator Coupling Loading Filter

The F74-S filter retains lens, which is used to load the filter with a diameter of 8.0~10mm and a thickness of 0.1~5mm. The tip is equipped with a fiber collimator, which is an SMA905 standard connector, which can be connected to an optical fiber. It can also be used as a collimating hole for fiber coupling. This product is generally used to measure excited fluorescence.

Features:
1. The F74 filter holder can be loaded with filters of various wavelengths;
2. Its use wavelength range is 200~2500nm;
3. The outer diameter of the Lens is 14mm, and the diameter of the filter that can be loaded is 8~10mm;
4. The other end of the tip is connected with a 74-UV fiber collimator;
5. Aluminum alloy shell, the surface is black.

Specification:
Product Name: Fiber collimator
Model: F74-S
Wavelength Range: 200~2500nm

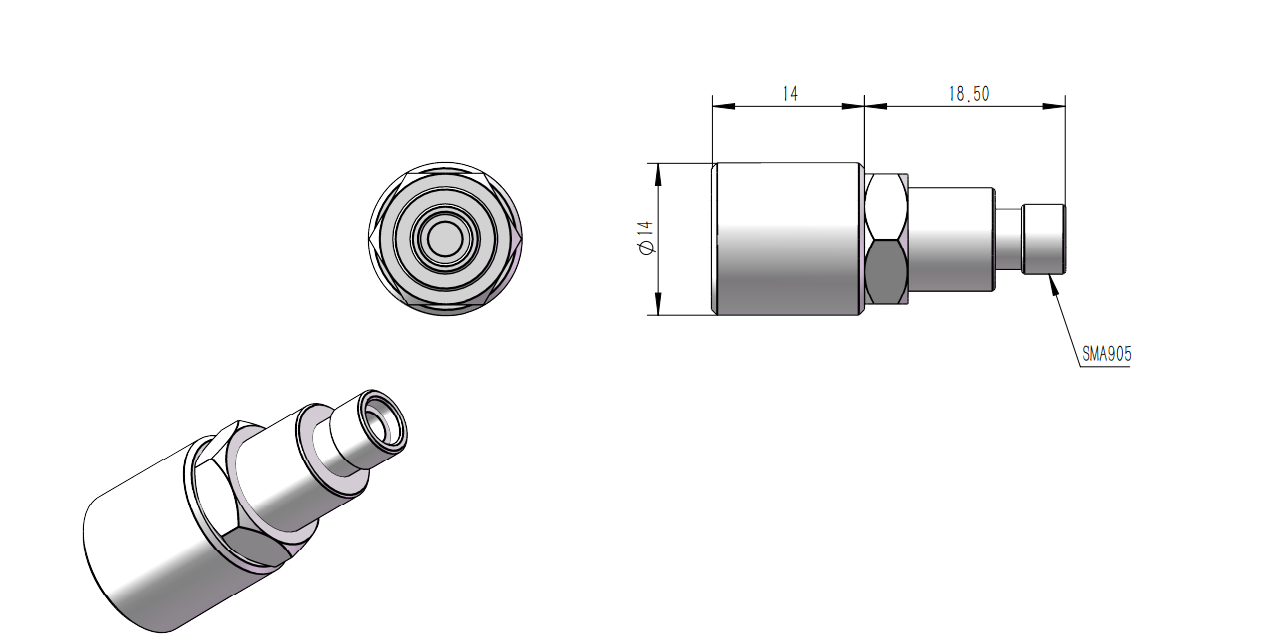

Connector: SMA905, outer diameter 14mm
