Sharp GH0781RA2C 780nm 100mW IR Laser Diode TO-18 5.6mm Package

Sharp GH0781RA2C 780nm 100mW IR Laser Diode TO-18 5.6mm Package

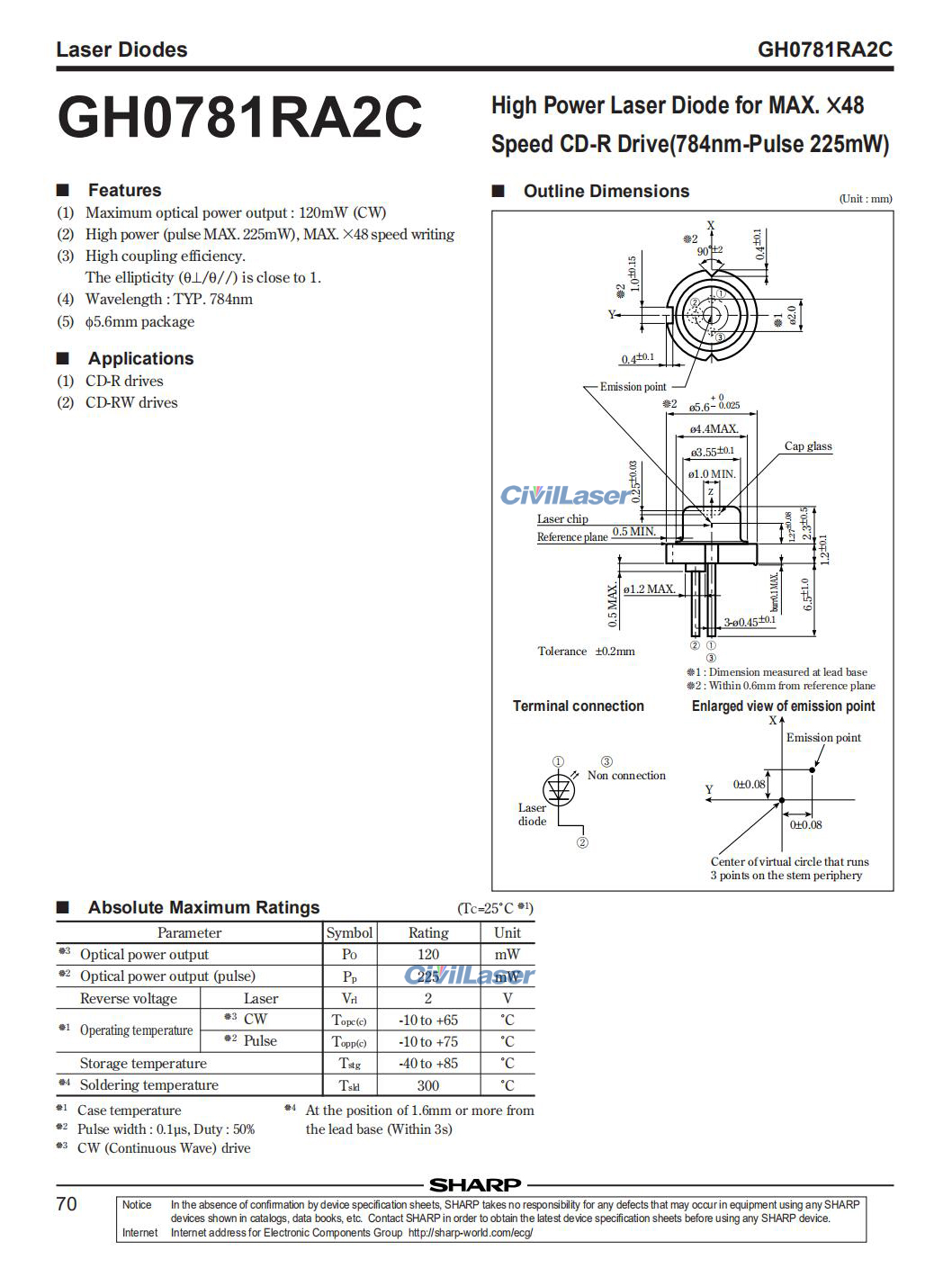

[Features]
1. Maximum optical output power: 120mW (CW)
2. High power (pulse MAX 225mW),MAX. X48 speedi writing
3. High coupling effiency
4. Wavelength: Typ. 784nm
5. Φ5.6mm package

[Applications]
CD-R drives
CD-RW drives

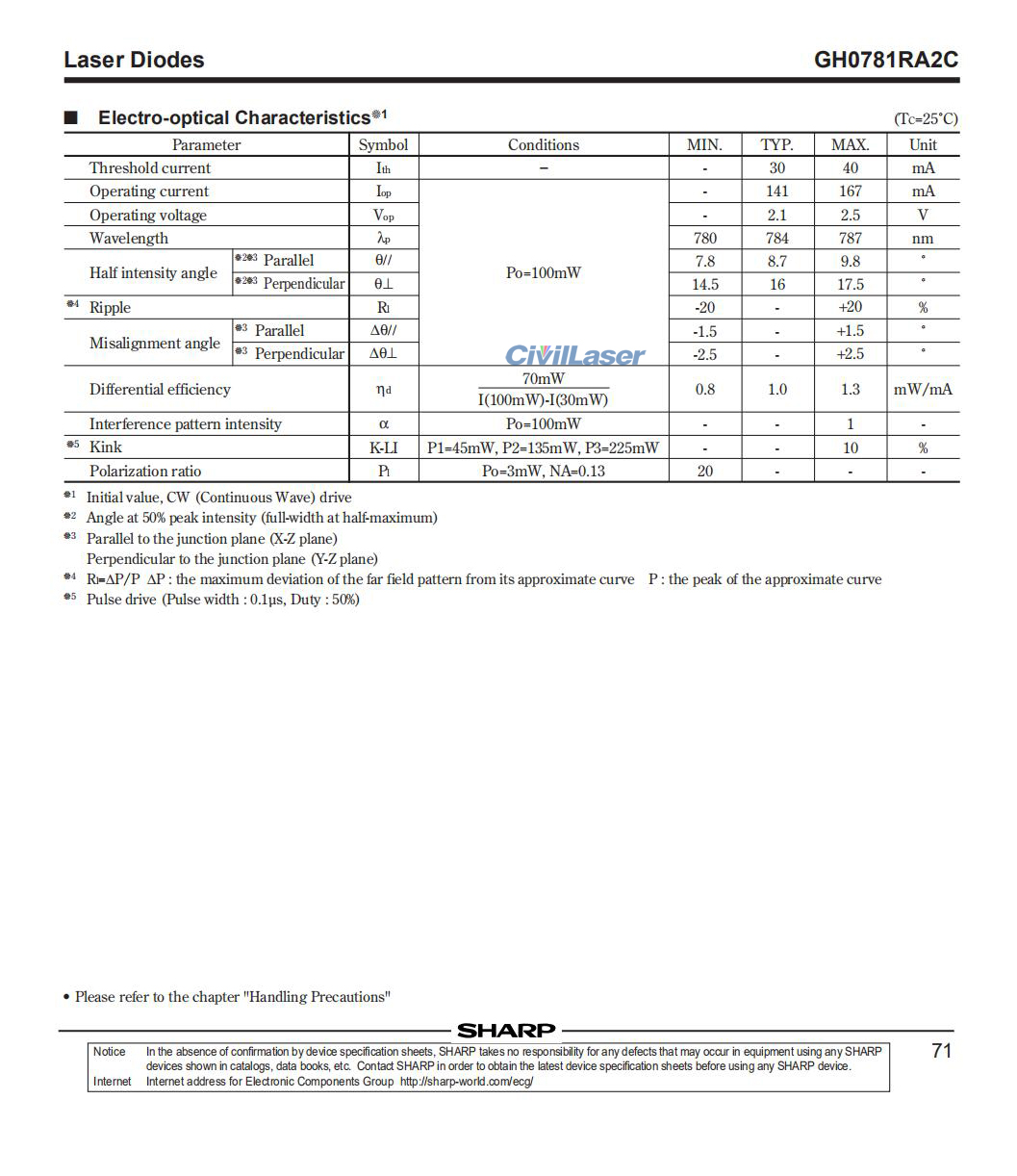

[Sepcifications]
Product Name: Laser diode
Model: GH0781RA2C
Wavelength: 780nm
Output Power (CW): 120mW
Output Power (Pulse): 225mW
Reverse Voltage: 2V
Threshold Current: 30mA
Operating Current: 140mA
Operating Voltage: 2.1V
Operating Temperature: -10~+65℃
Storage Temperature: -40~+85℃
