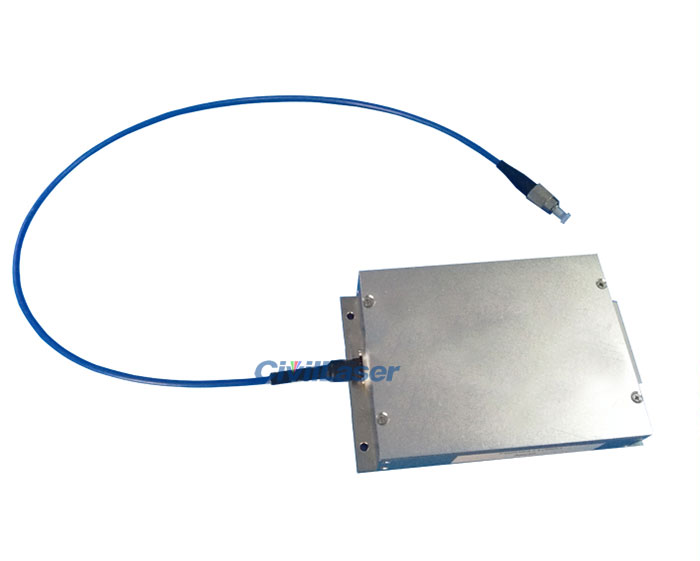

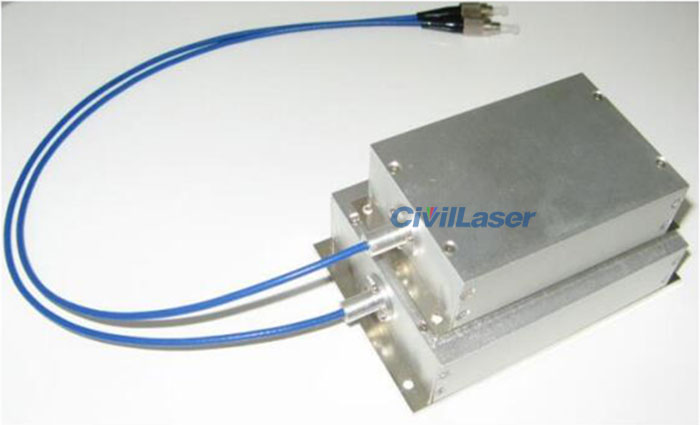

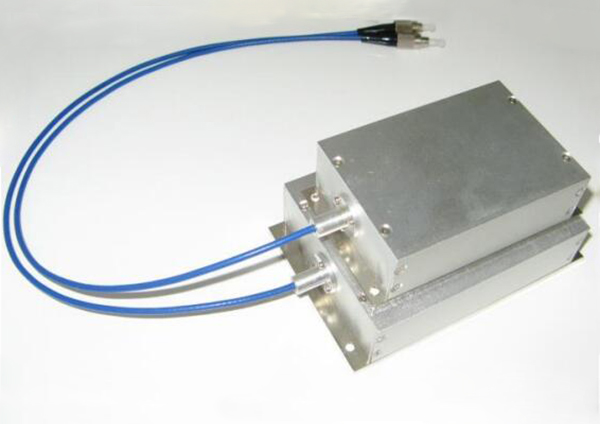

520nm 4000mW 105μm*5 Fibers Laser Beam Combining Module Green Laser Source

520nm 4000mW 105μm*5 Fibers Laser Beam Combining Module    Green Laser Source

The fiber beam combining module is a multi-tube core combined beam semiconductor laser. Large contact area, low current package form, more stable performance, more convenient to use. The optical fiber parameters can be customized, and the built-in cooling chip will make the device performance more reliable and stable.

[Applications]
Laser night vision
Projection display
Laser Medical
Material testing

[Specifications]
Product Name: Fiber Coupled Laser
Wavelength: 520±10(nm)
Output Power: 4000mW
Fiber Core Diameter: 400μm (105μm*5 Fibers  Combining)
Numerical Aperture: 0.22
Fiber Connecter: FC/PC
Operating Voltage: 35V
Operating Current: 1.6A
Threshold Current: 0.27A
Power Conversion Efficiency: 15%
Micro-component Efficiency: 4.2 W/A
Operating Temperature: 10~35℃
Storage Temperature: -20~60℃
Operating Humidity: <60%
Lifetime: >10000 hours
