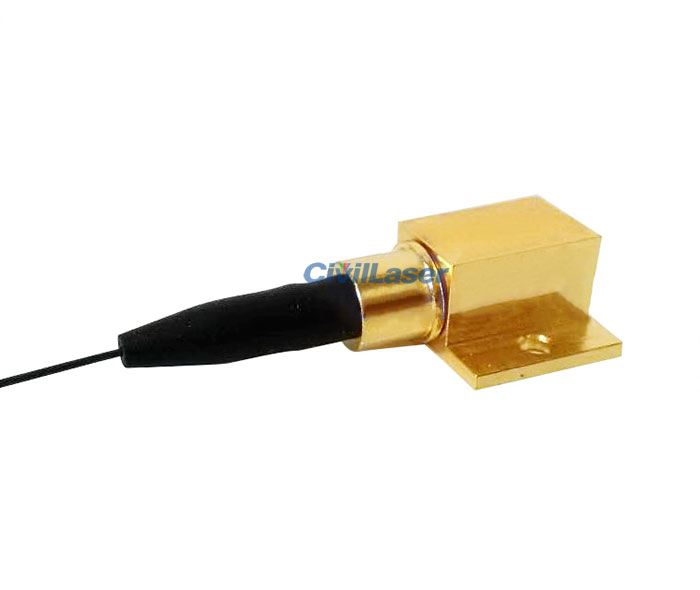

Green Pigtailed Laser Diode 525nm 800mW Fiber Laser

Green Pigtailed Laser Diode 525nm 800mW Fiber Laser

[Specifications]
Product Name: 525nm Fiber Coupled Laser
Wavelength: 525±10(nm)
Output Power: 800mW
Fiber Core Diameter: 105μm
Numerical Aperture: 0.22
Fiber Connecter: FC/PC, FC/APC, SMA905 (Choose)
Operating Voltage: 4.0~4.7V
Operating Current: 1.5A
Threshold Current: 0.27A
Power Conversion Efficiency: 20~50%
Micro-component Efficiency: ~0.7 W/A
Operating Temperature: 10~30℃
Storage Temperature: -20~60℃
Lifetime: >10000 hours

525nm 0.8W Combined fiber coupled module-civillaser.pdf

525nm 800mW Test Data-20210825.pdf

Note: The test report is for reference only, the actual results of each laser are slightly different.
