Osram PLT5 510 515nm 10mW Green Laser Diode TO56 Package

Osram PLT5 510 515nm 10mW Green Laser Diode TO56 Package

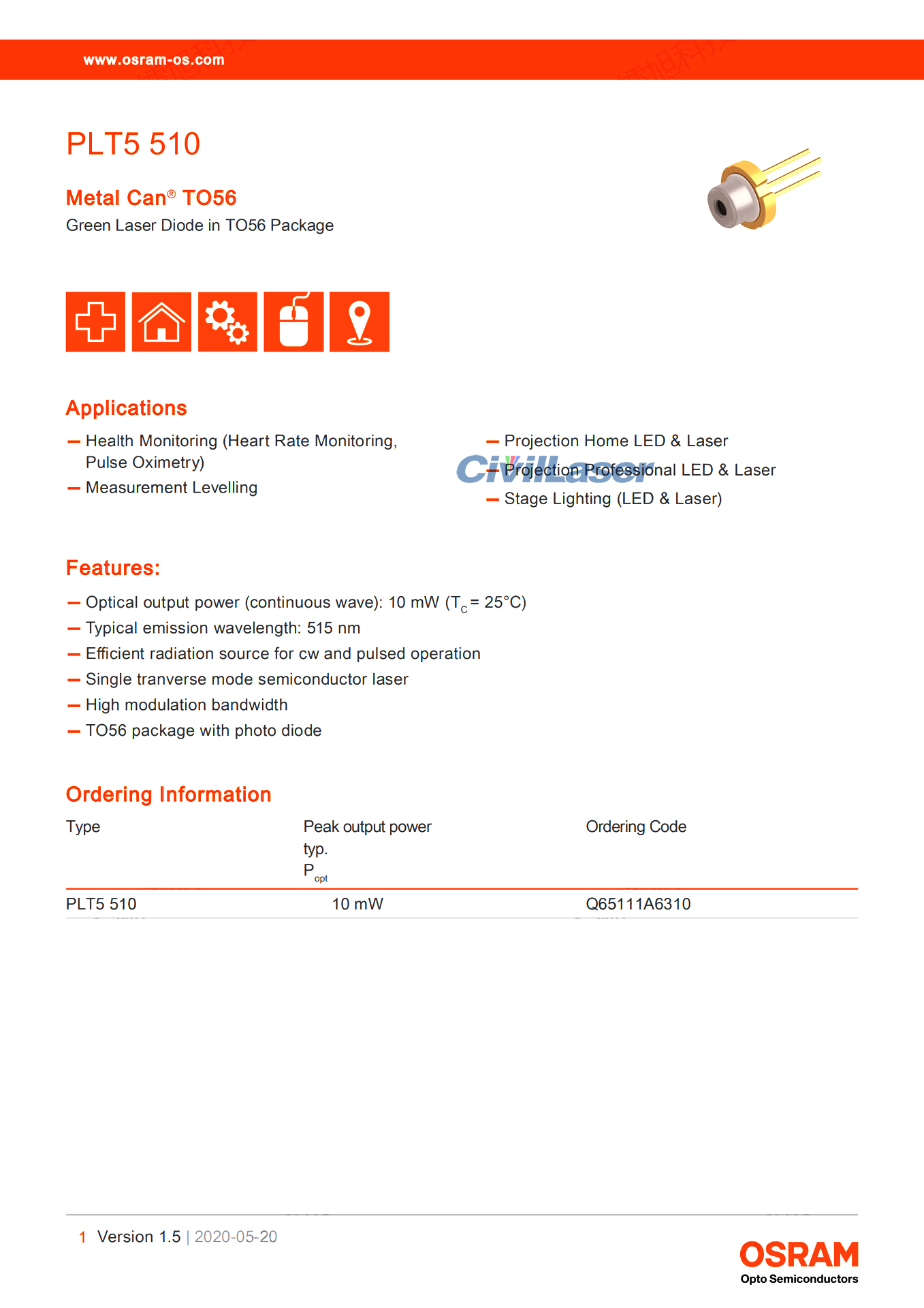

[Features]
1. Optical output power (continuous wave): 10 mW (Tcase = 25 °C)
2. Typical emission wavelength: 515 nm
3. Efficient radiation source for cw and pulsed operation
4. Single transverse mode semiconductor laser
5. High modulation bandwidth

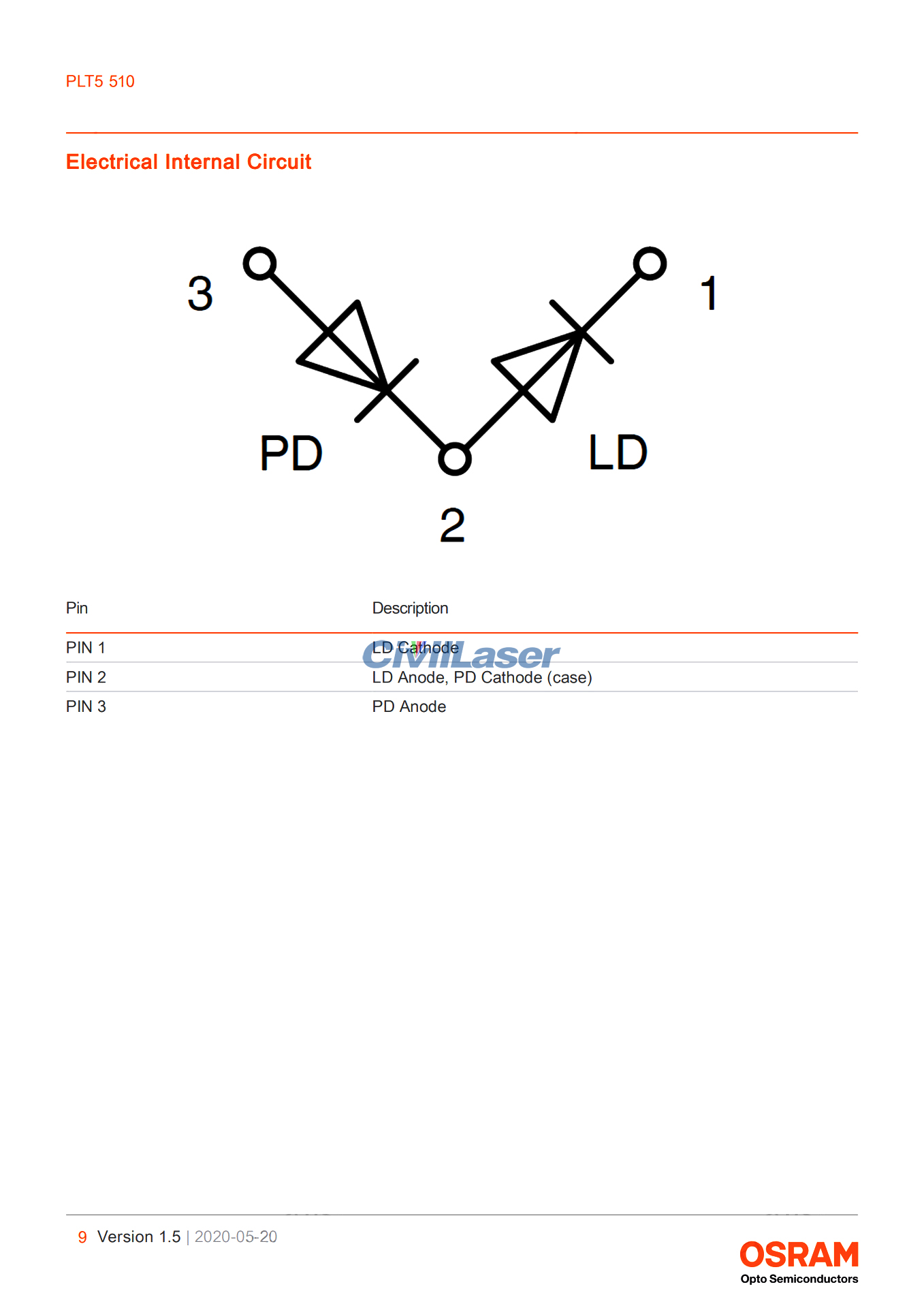

6. TO56 package with photo diode

[Applications]
1. Health Monitoring (Heart Rate Monitoring, Pulse Oximetry)
2. Measurement Levelling
3. Projection Home LED & Laser
4. Projection Professional LED & Laser
5. Stage Lighting (LED & Laser)

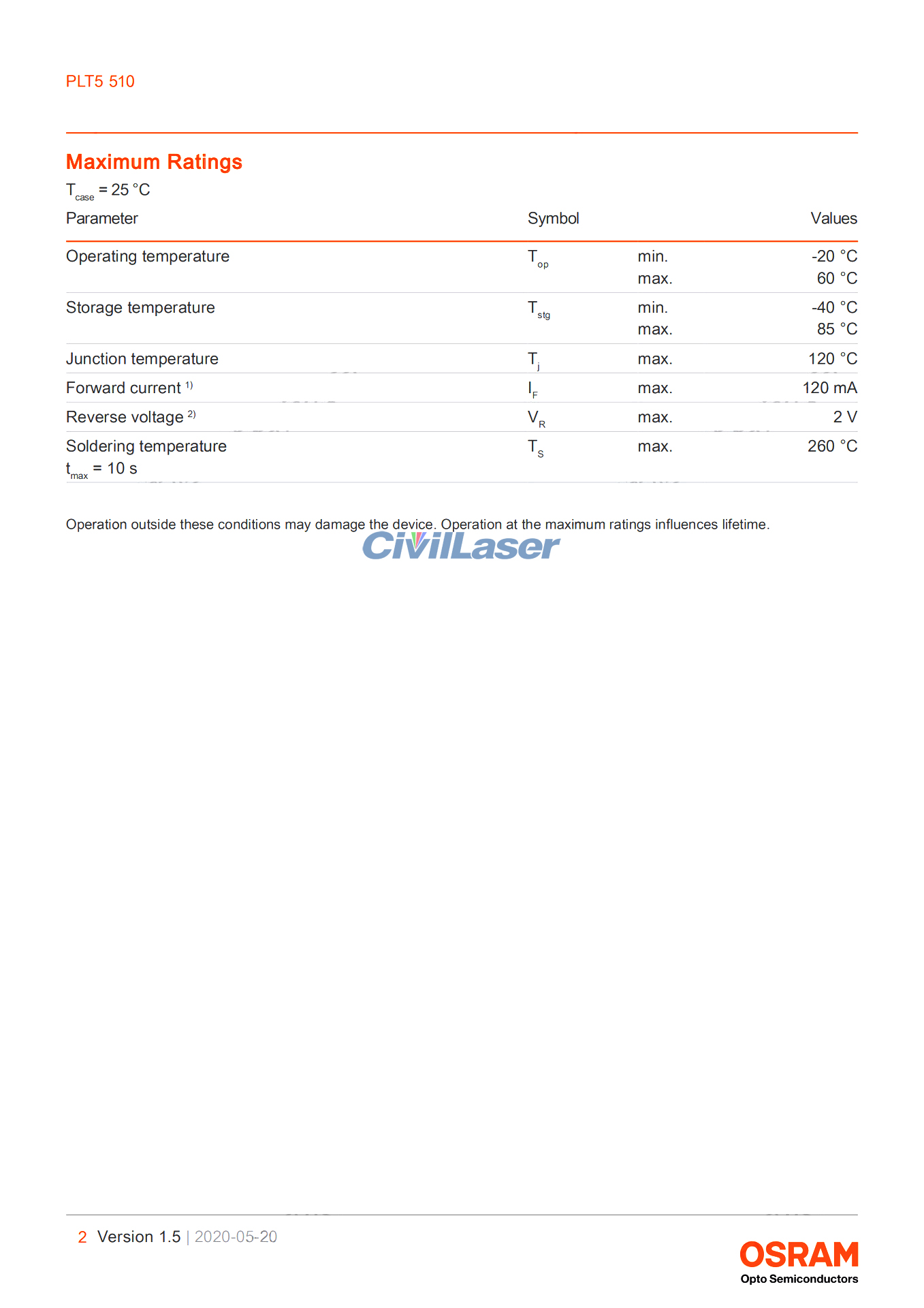

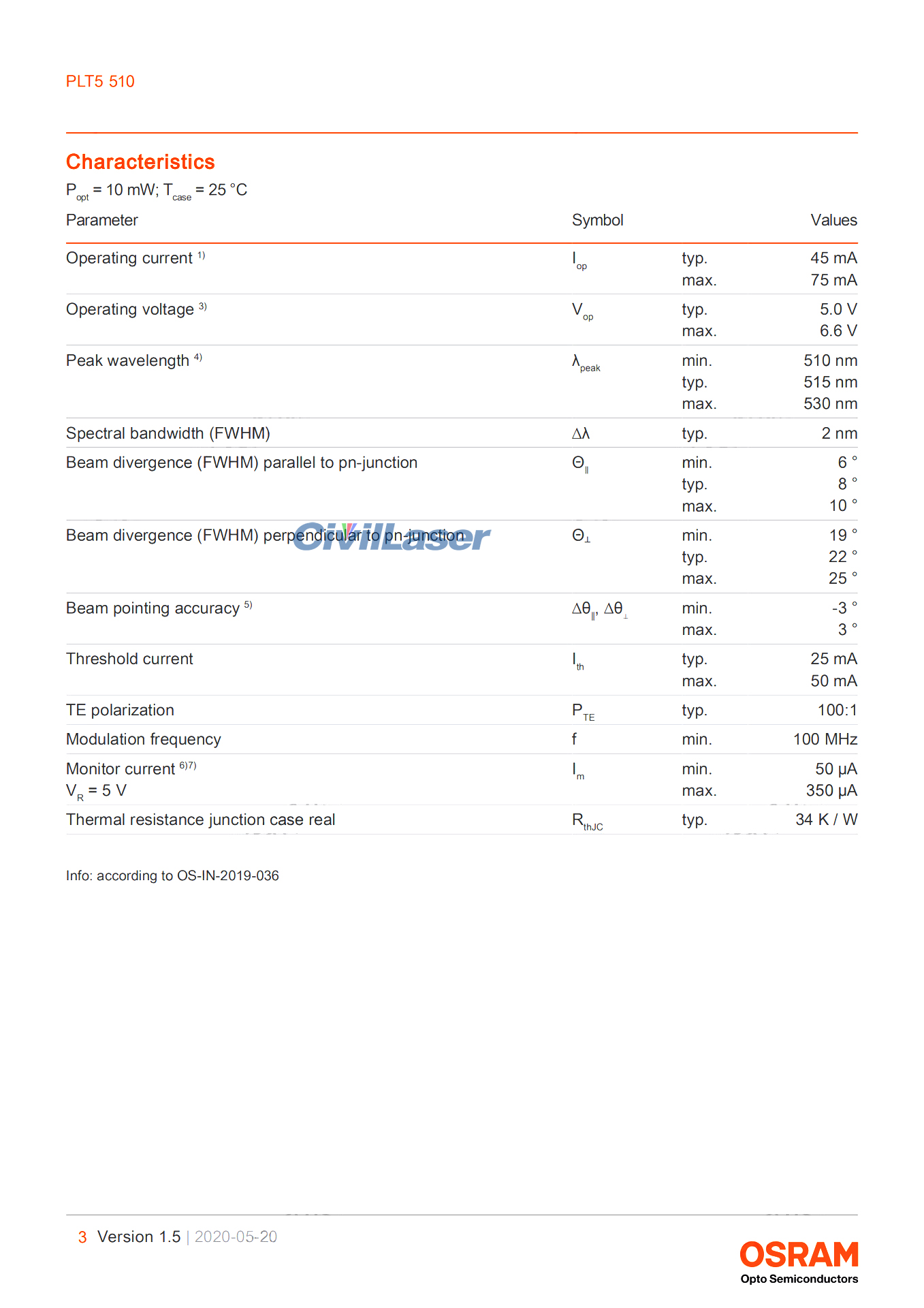

[Specification]
Product Name: Laser diode
Model: PLT5 510
Wavelength: 510nm
Output Power: 10mW
Forward Current: 120mA
Threshold Current: 25mA
Operating Current: 45mA
Operating Voltage: 5V
Spectral Bandwidth: 2nm
Modulation Frequency: 100MHz

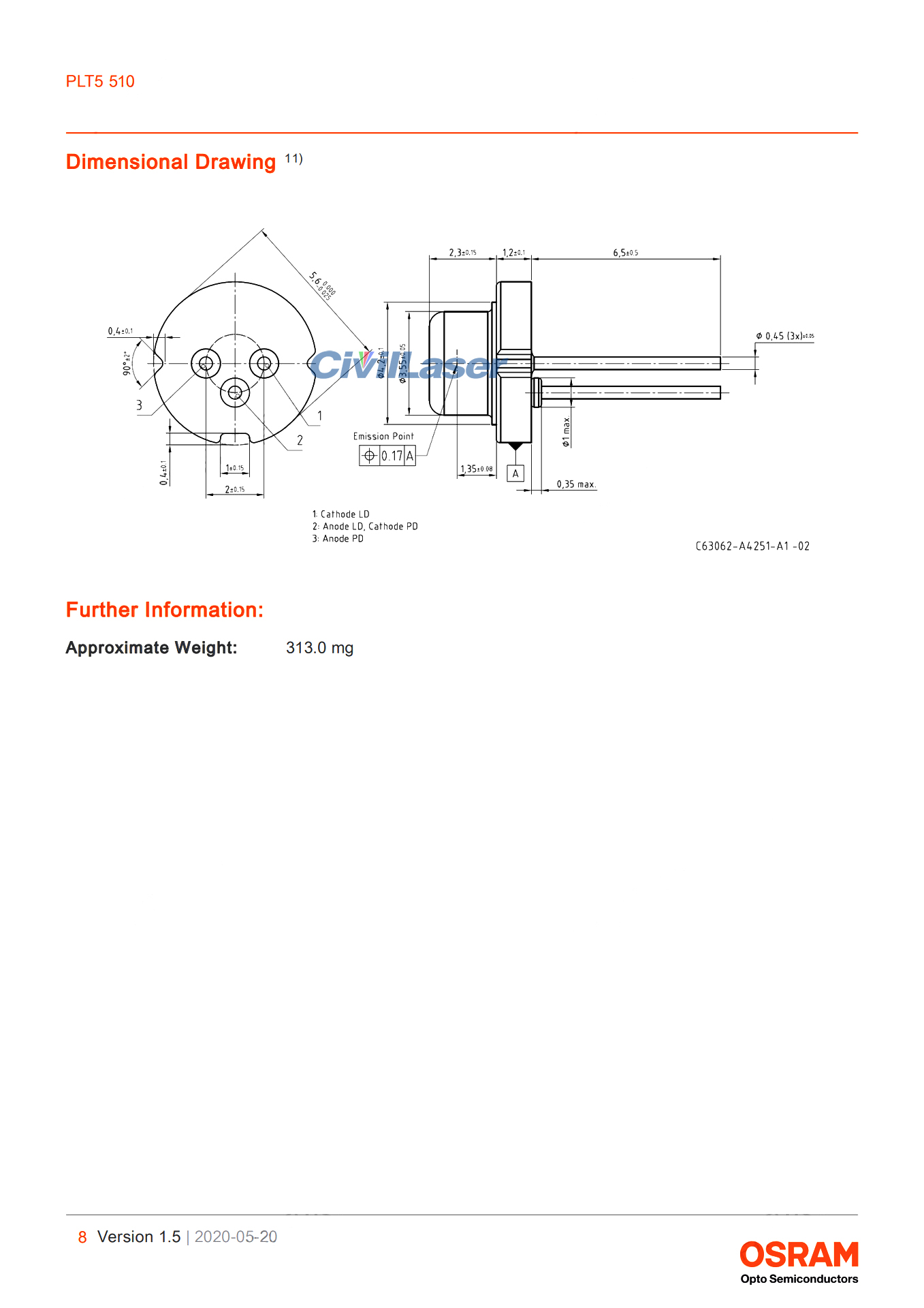

Package: TO56
Operating Temperature: -20~+60℃
Storage Temperature: -40~+85℃
