Osram PLPT5 447KA 447nm 1.6W Laser Diode High Power Blue LD TO56 Package

Osram PLPT5 447KA 447nm 1.6W Laser Diode High Power Blue LD TO56 Package

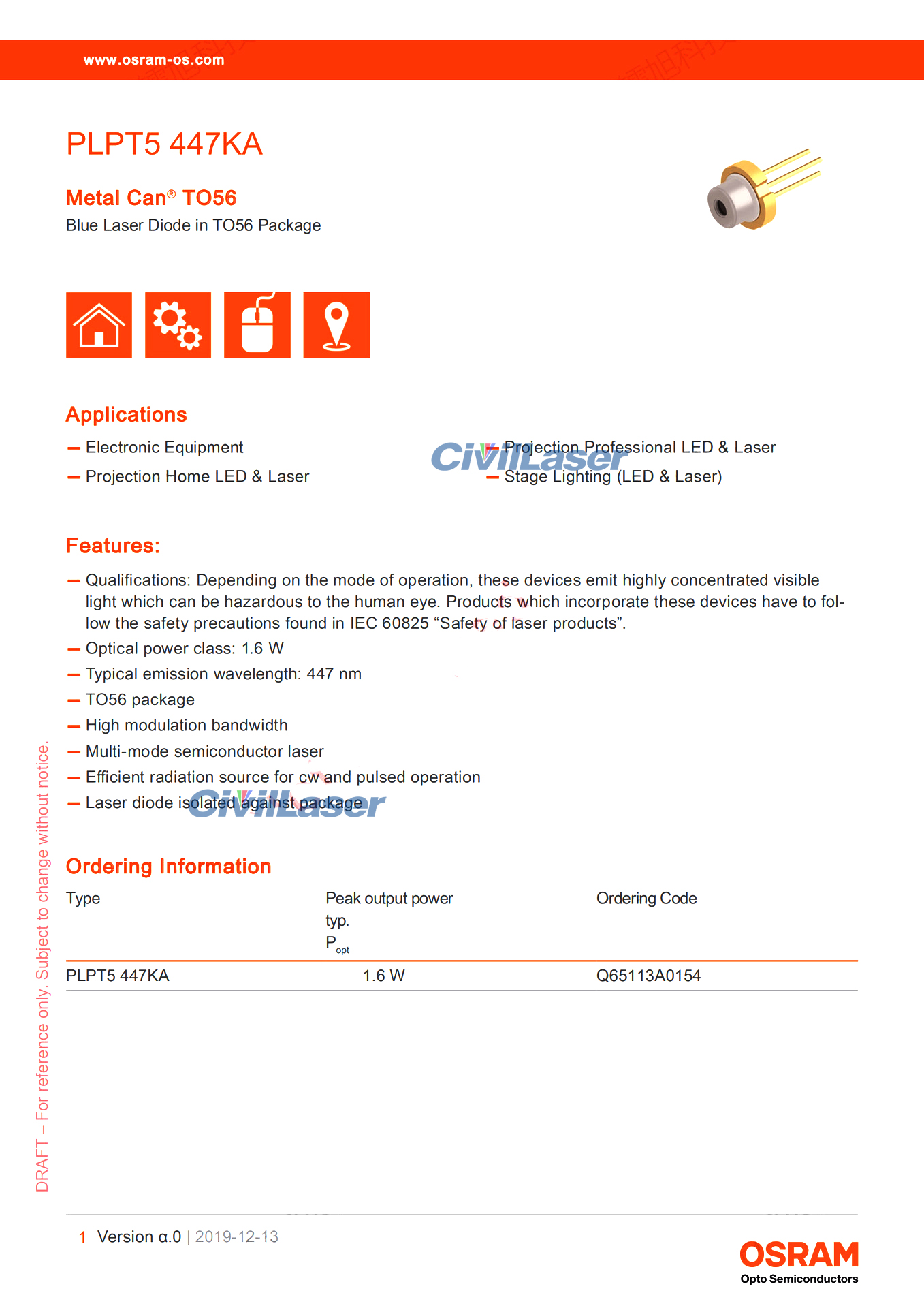

[Features]
1. Qualifications: Depending on the mode of operation, these devices emit highly concentrated visible light which can be hazardous to the human eye. Products which incorporate these devices have to follow the safety precautions found in IEC 60825 “Safety of laser products”.
2. Typical emission wavelength: 447 nm
3. TO56 package
4. High modulation bandwidth
5. Multi-mode semiconductor laser
6. Efficient radiation source for cw and pulsed operation
7. Laser diode isolated against package
8. ESD protection diode
9. Optical power class: 1.6 W

[Applications]
1. Electronic Equipment
2. Projection Home LED & Laser
3. Projection Professional LED & Laser
4. Stage Lighting (LED & Laser)

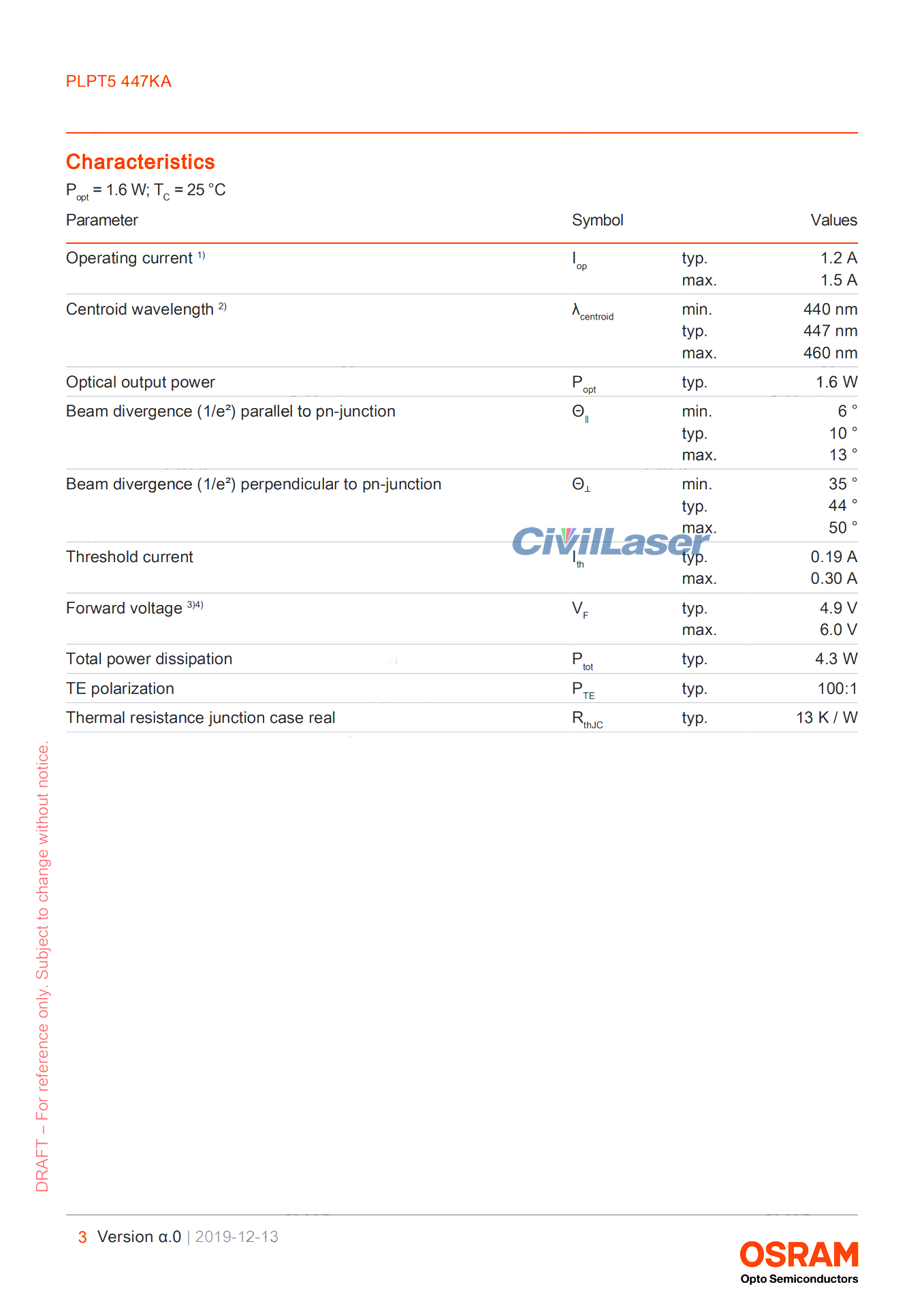

[Specification]
Product Name: Laser diode
Model: PLPT5 447KA
Wavelength: 447nm
Output Power: 1600mW
Forward Voltage: 4.9V

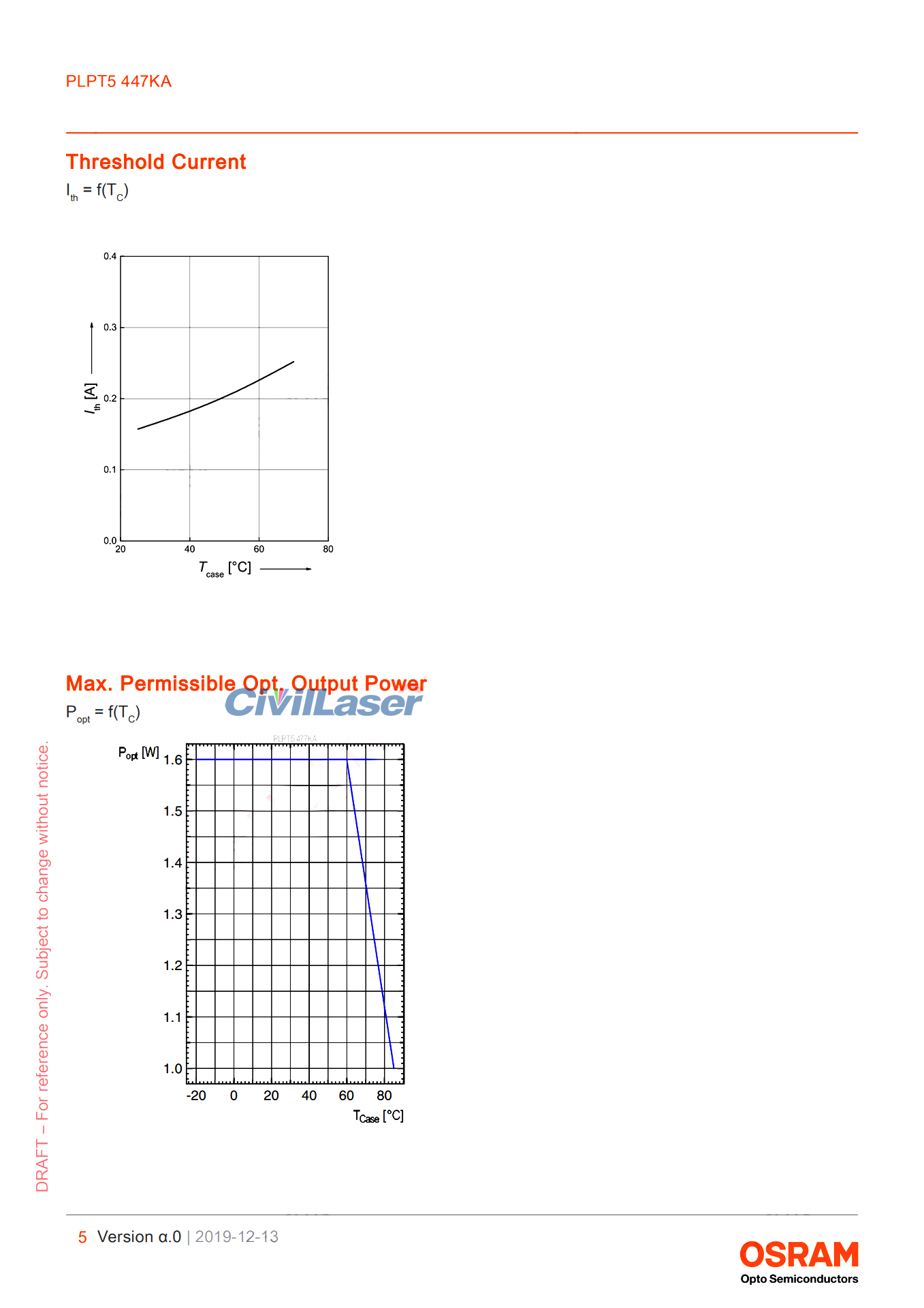

Threshold Current: 190mA
Operating Current: 1200mA

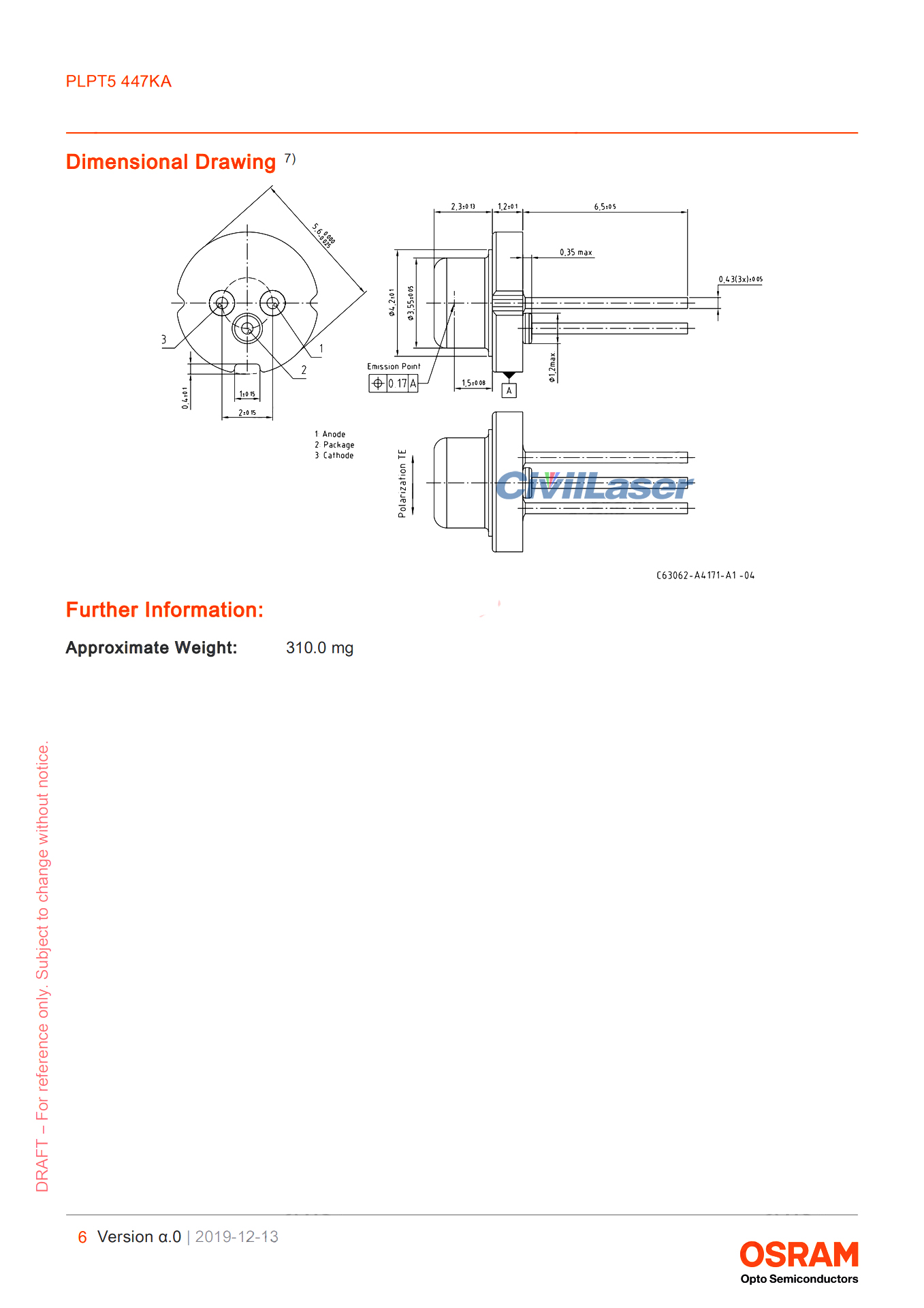

Package: TO56

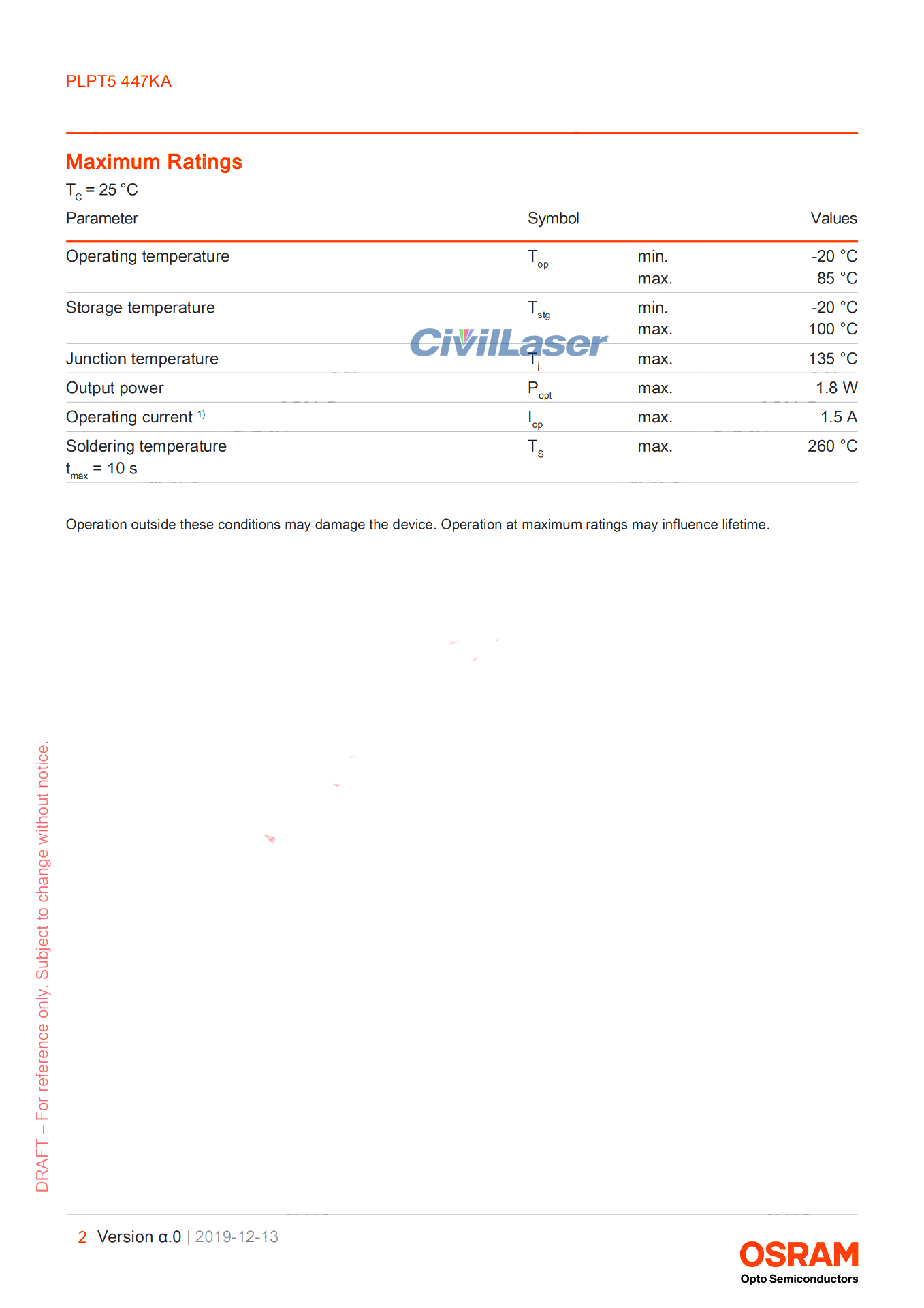

Operating Temperature: -20~+85℃
Storage Temperature: -20~+100℃
