PLT5 520EA_P 520nm 20mW Laser Diode Osarm Green Laser Source TO56 Package

PLT5 520EA_P 520nm 20mW Laser Diode Osarm Green Laser Source TO56 Package

[Features]
1. Optical output power (CW): 20 mW (TC = 25°C)
2. Typical emission wavelength: 520 nm
3. Efficient radiation source for cw and pulsed operation.
4. Single mode semiconductor laser.
5. High modulation bandwidth.
6. TO56 package with photo diode.

[Applications]
1. Architecture / Garden Lighting (LED & Laser)
2. Area Lights
3. Downlights/Spotlights
4. Mood Lighting
5. Street, Tunnel and Outdoor

[Specification]
Product Name: Laser diode
Model: PLT5 520EA_P
Wavelength: 520nm
Output Power: 20mW
Reverse Voltage: 2V
Forward Current: 200mA
Threshold Current: 30mA
Operating Current: 58mA
Operating Voltage: 5.5V
Spectral Bandwidth: 2nm
Modulation Frequency: 100MHz

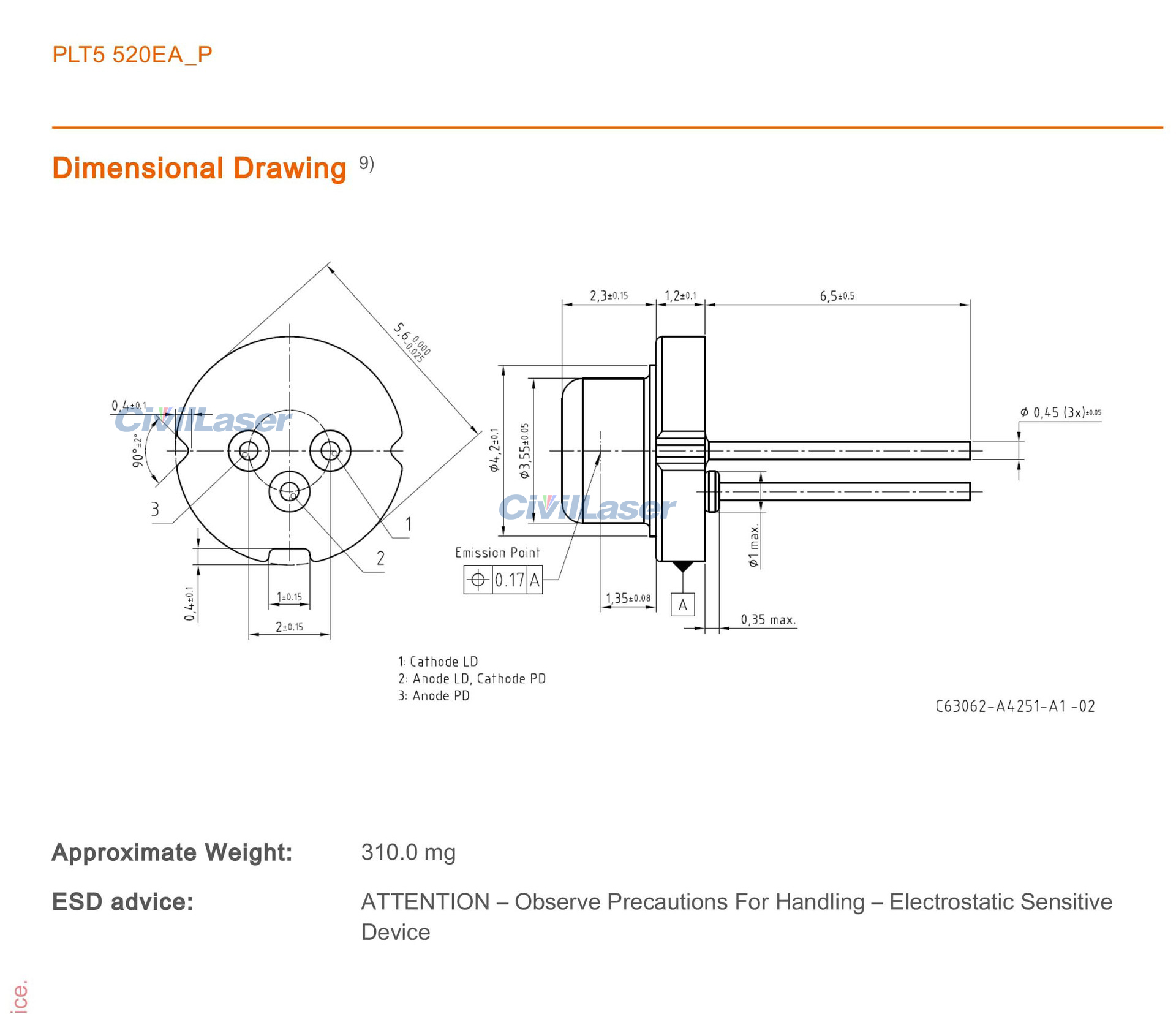

Package: TO56
Operating Temperature: -20~+60℃
Storage Temperature: -40~+85℃
