Union U-LD-98A041Ap/Cp/Dp 980nm 100mW IR Laser Diode TO18 Package

Union U-LD-98A041Ap/Cp/Dp 980nm 100mW IR Laser Diode TO18 Package

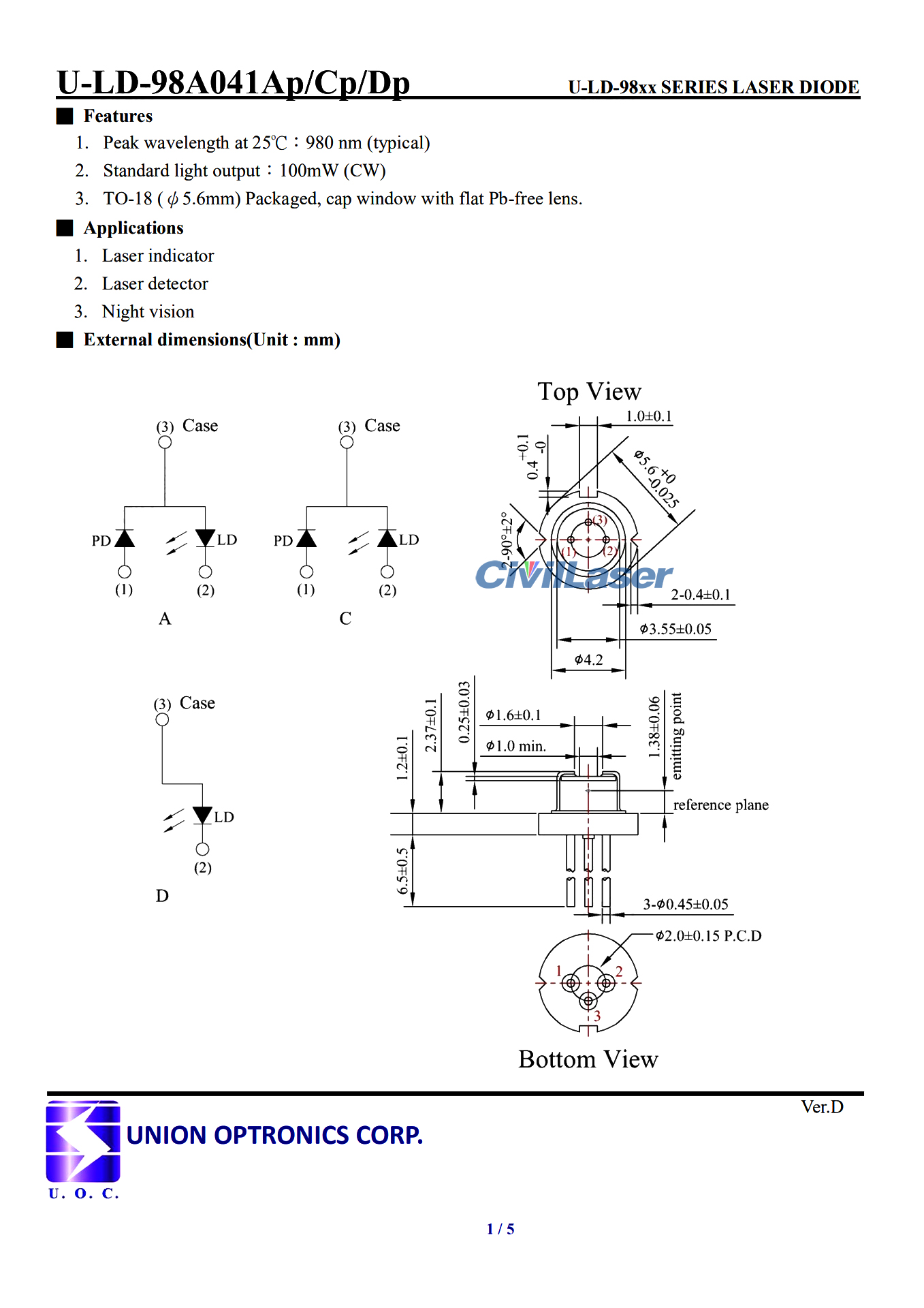

[Features]
1. Peak wavelength at 25℃：980 nm (typical)
2. Standard light output：100mW (CW)
3. TO-18 (Φ5.6mm) Packaged, cap window with flat Pb-free lens.

[Applications]
1. Laser indicator
2. Laser detector
3. Night vision

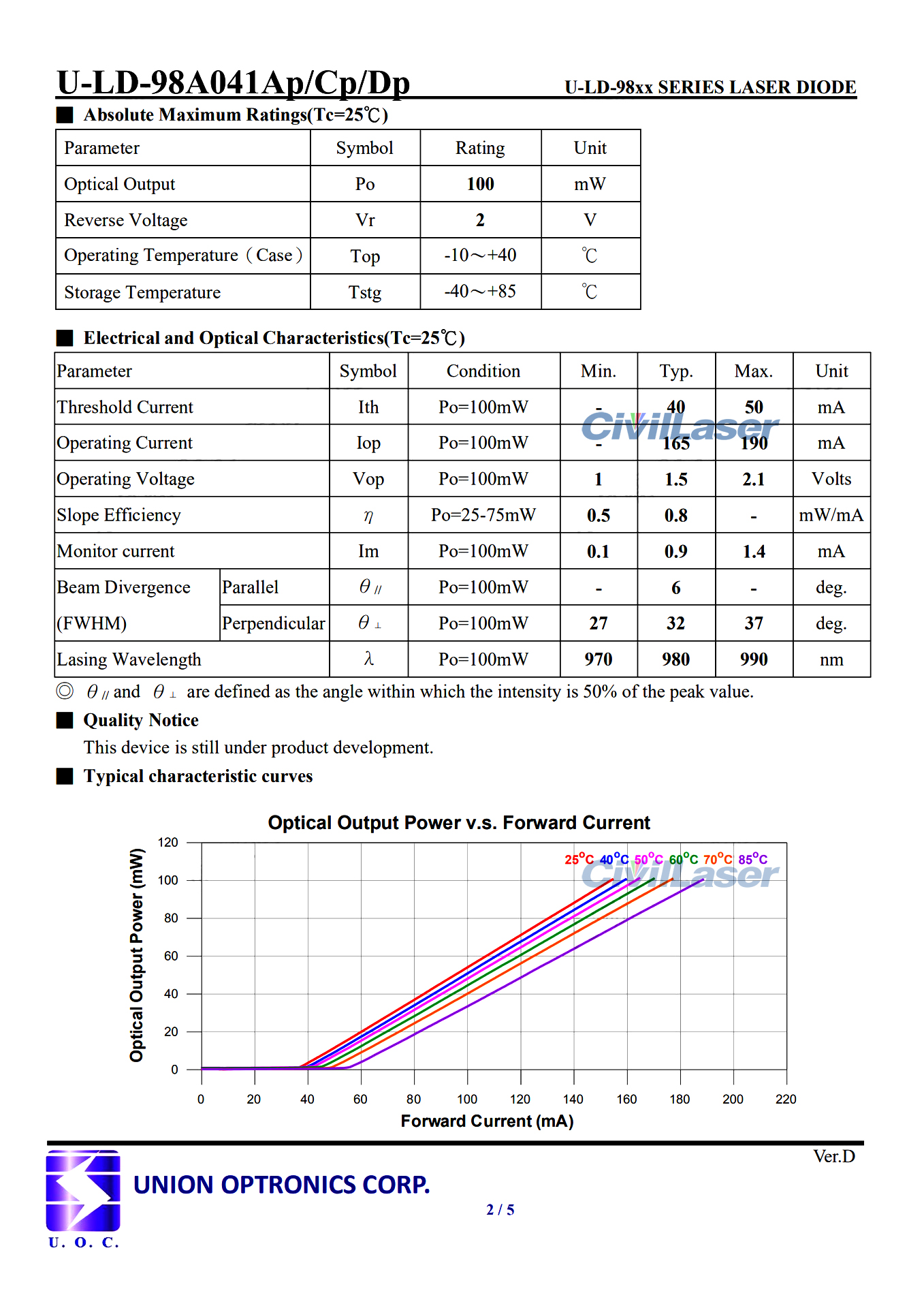

[Specification]
Product Name: Laser diode
Model: U-LD-98A041Ap/Cp/Dp
Wavelength: 980nm
Output Power: 100mW
Threshold Current: 40mA
Operating Current: 165mA
Operating Voltage: 1.5V
Package: TO-18(Φ5.6mm)
Operating Temperature: -10~+40℃
Storage Temperature: -40~+85℃
