Union U-LD-670561A/D 670nm 5mW Red Laser Diode TO18 5.6mm Package

Union U-LD-670561A/D 670nm 5mW Red Laser Diode TO18 5.6mm Package

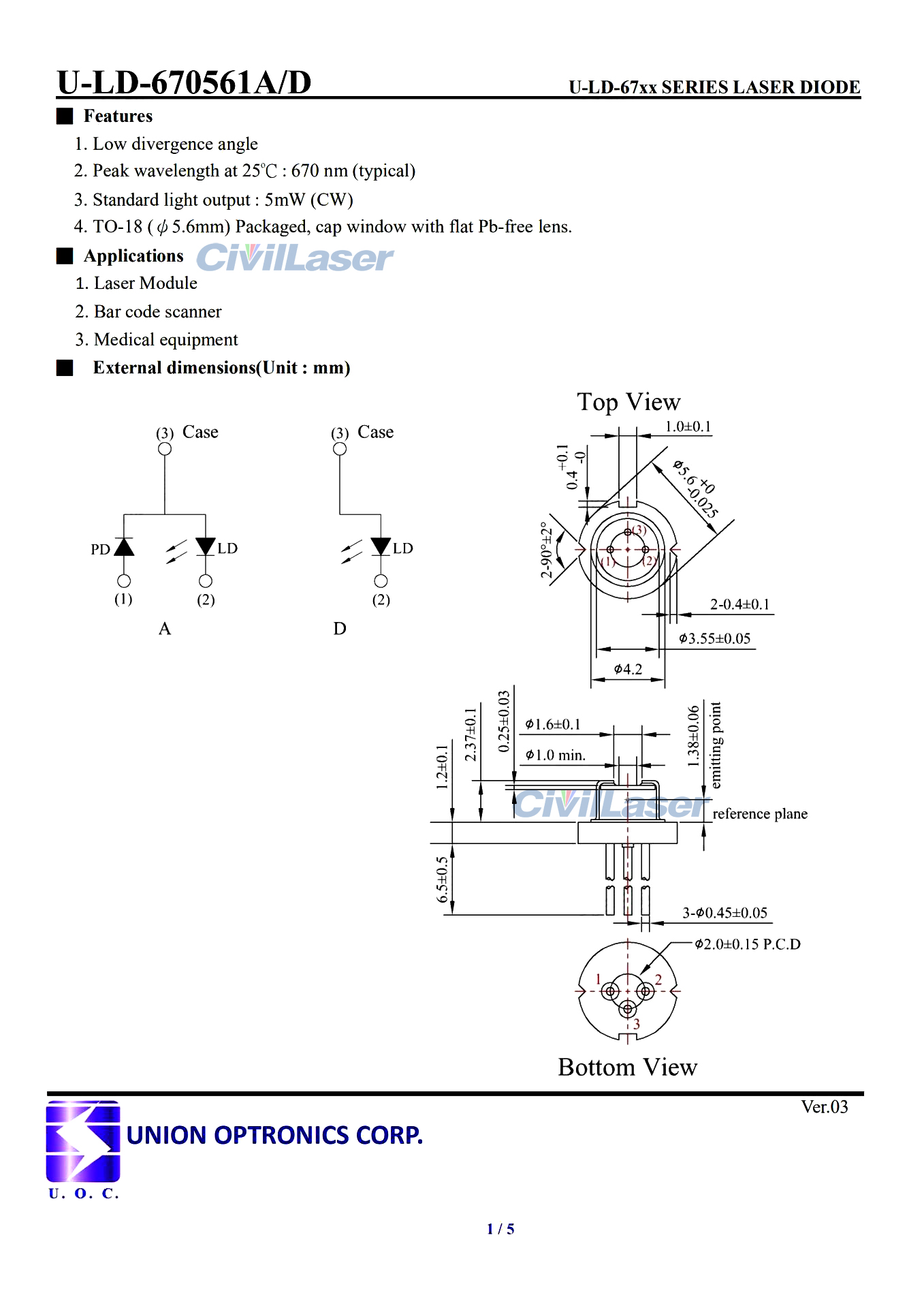

[Features]
1. Low divergence angle
2. Peak wavelength at 25℃: 670 nm (typical)
3. Standard light output : 5mW (CW)
4. TO-18 (Φ5.6mm) Packaged, cap window with flat Pb-free lens.

[Applications]
1. Laser Module
2. Bar code scanner
3. Medical equipment

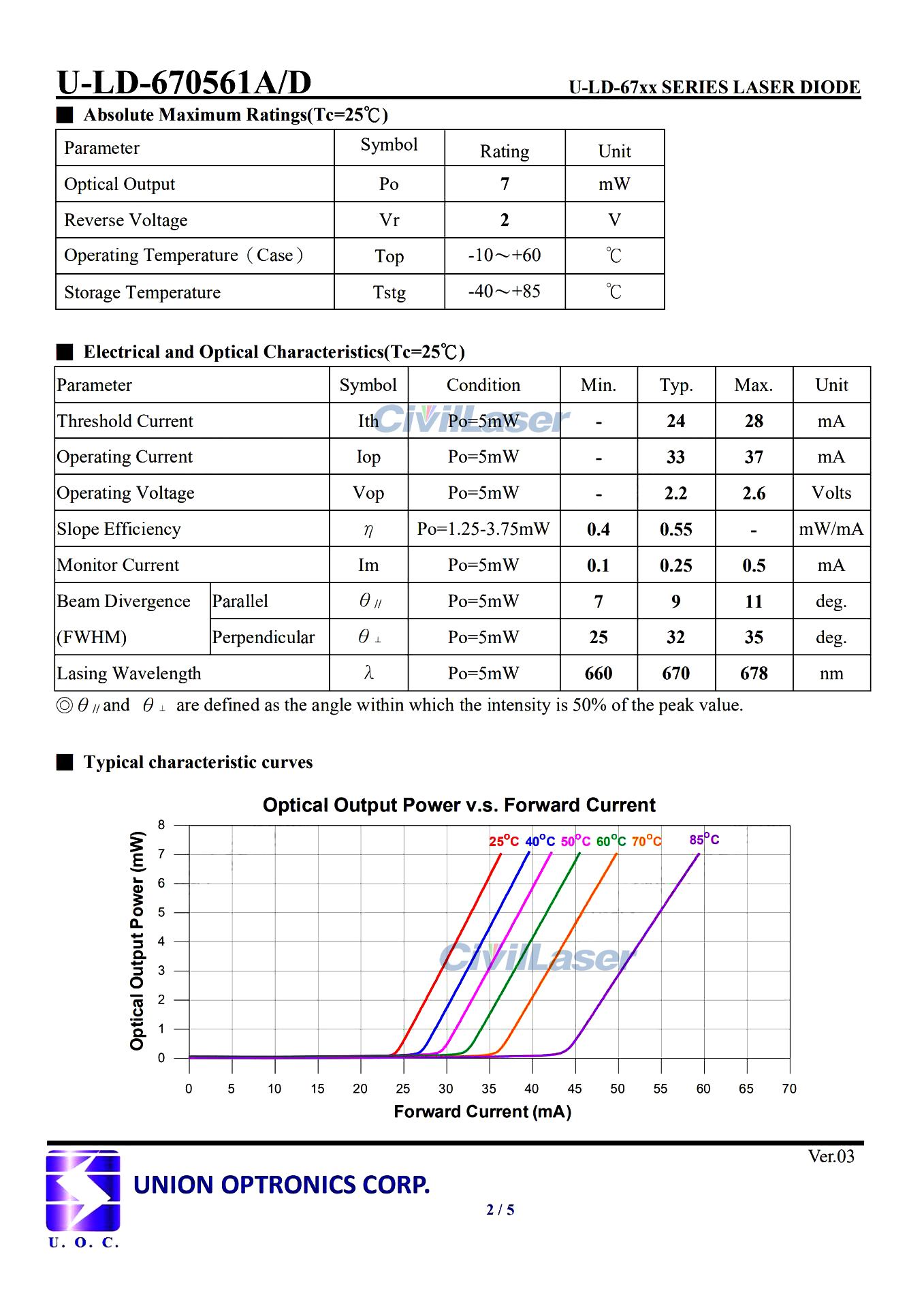

[Specification]
Product Name: Laser diode
Model: U-LD-670561A/D
Wavelength: 670nm
Output Power: 5mW
Threshold Current: 24mA
Operating Current: 33mA
Operating Voltage: 2.2V
Package: TO-18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
