Union U-LD-85A060Ap 850nm 100mW Infrared Laser Diode TO18 5.6mm Package

Union U-LD-85A060Ap 850nm 100mW Infrared Laser Diode TO18 5.6mm Package

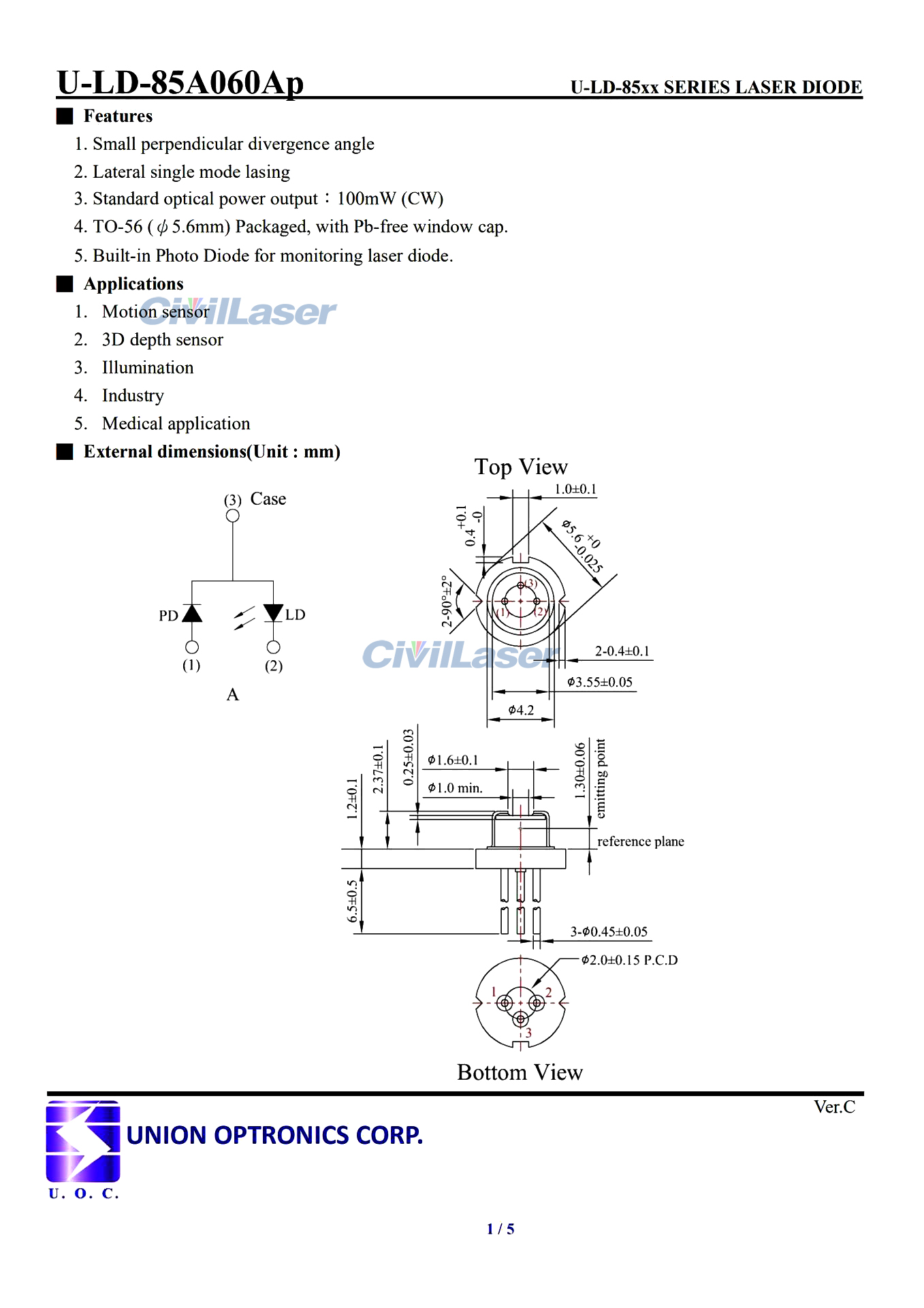

[Features]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output：100mW (CW)
4. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
5. Built-in Photo Diode for monitoring laser diode.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

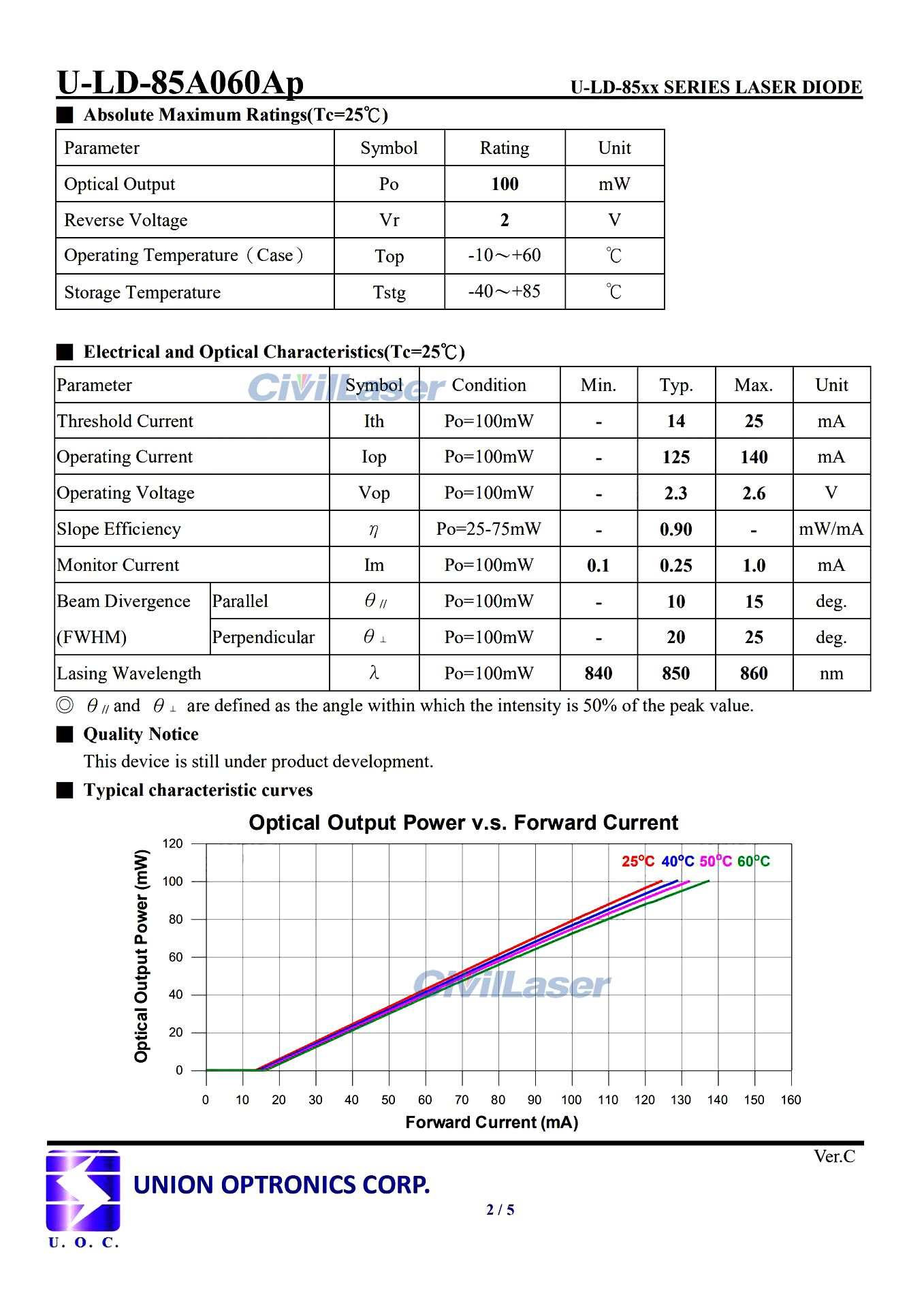

[Specification]
Product Name: Laser diode
Model: U-LD-85A060Ap
Wavelength: 850nm
Output Power: 100mW
Threshold Current: 14mA
Operating Current: 125mA
Operating Voltage: 2.3V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+50℃
Storage Temperature: -40~+85℃
