Union U-LD-653053Ap/Bp 650nm 30mW Red Laser Diode TO18 5.6mm Package

Union U-LD-653053Ap/Bp 650nm 30mW Red Laser Diode TO18 5.6mm Package

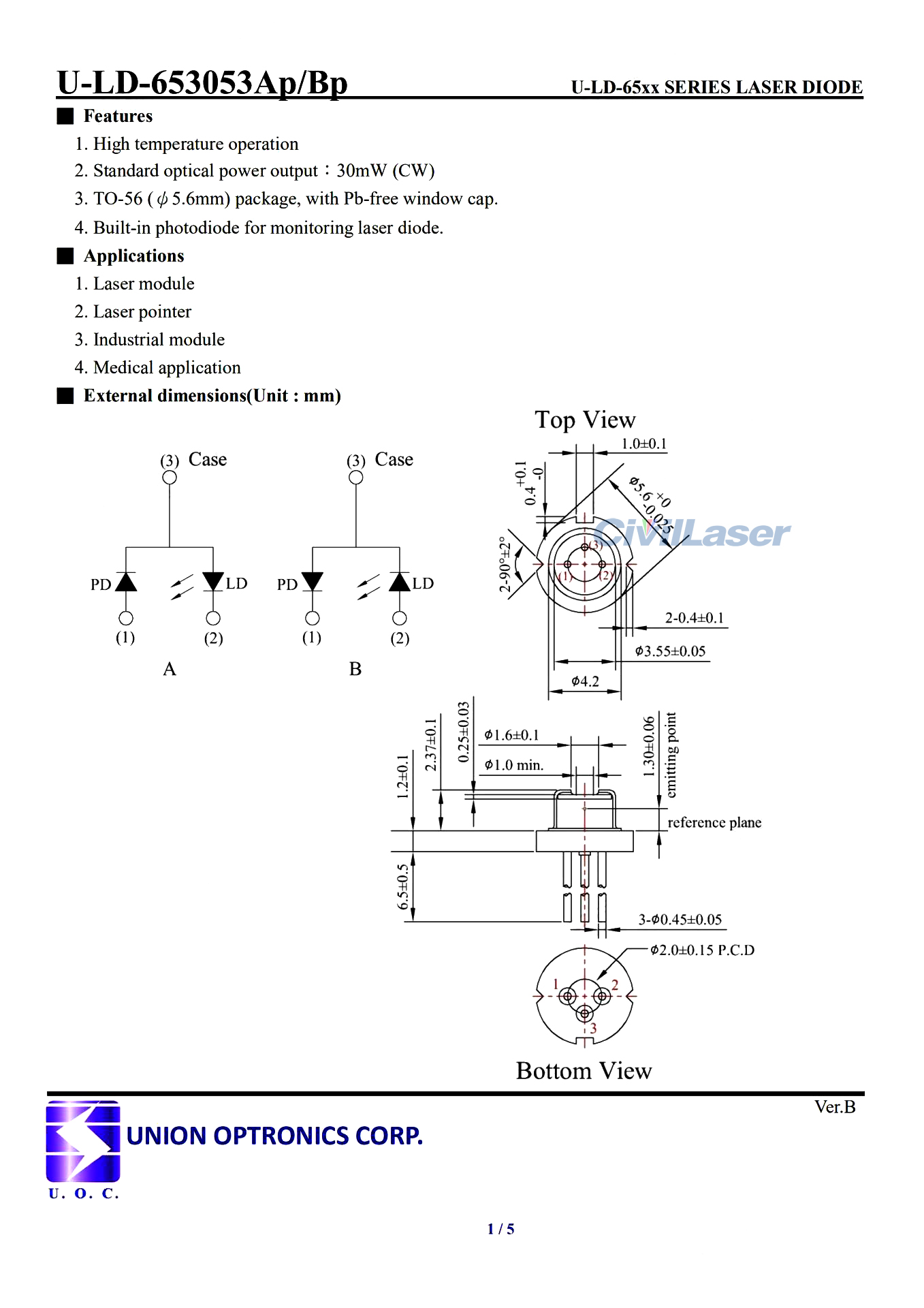

[Features]
1. High temperature operation.
2. Standard optical power output：30mW (CW)
3. TO-56 (Φ5.6mm) package, with Pb-free window cap.
4. Built-in photodiode for monitoring laser diode.

[Applications]
1. Laser module
2. Laser pointer
3. Industrial module
4. Medical application

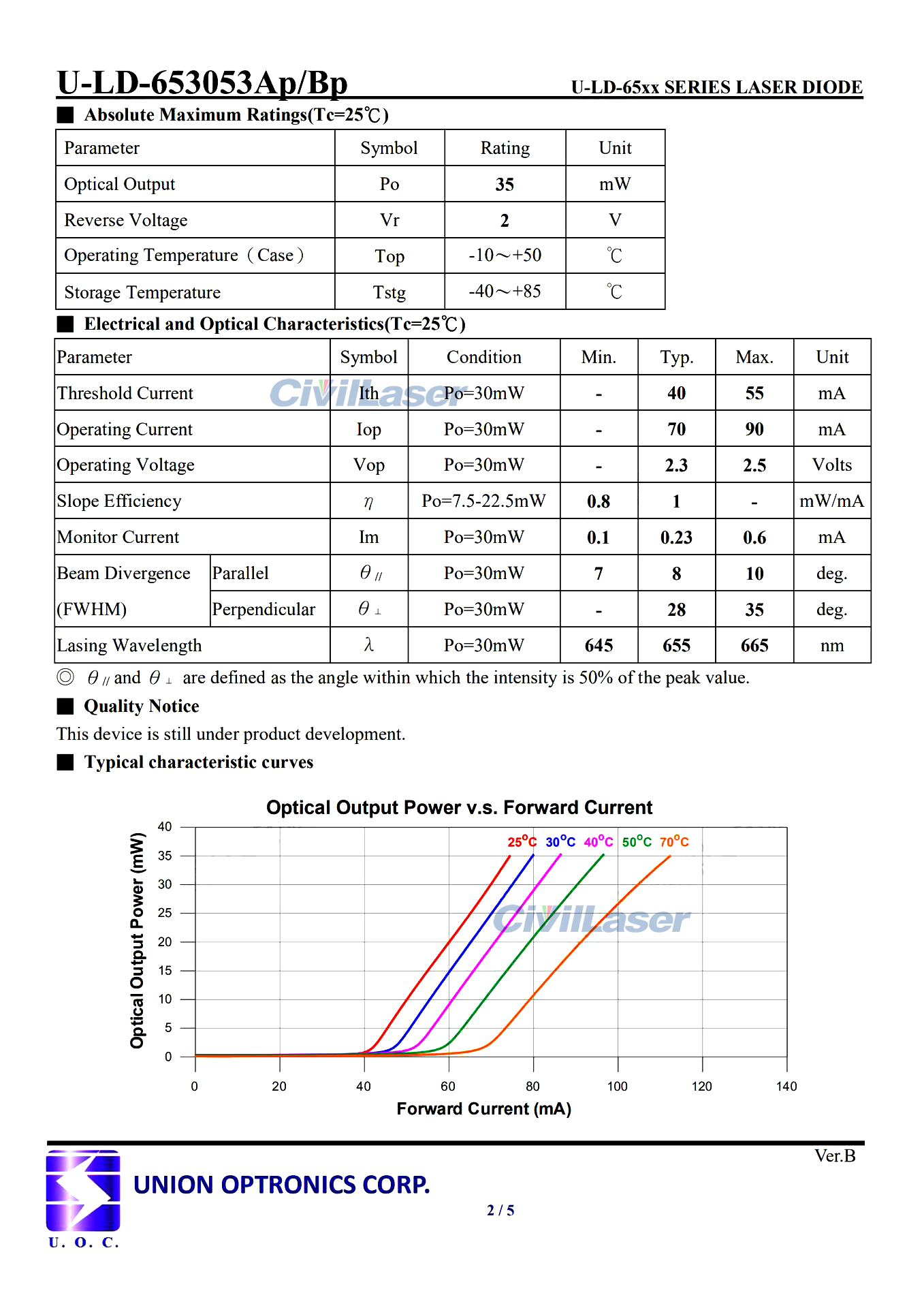

[Specification]
Product Name: Laser diode
Model: U-LD-653053Ap/Bp
Wavelength: 650nm
Output Power: 30mW
Threshold Current: 40mA
Operating Current: 70mA
Operating Voltage: 2.3V
Package: TO-9(Φ9mm)
Operating Temperature: -10~+50℃
Storage Temperature: -40~+85℃
