Union U-LD-83C062Ap 830nm 300mW IR Laser Diode TO18 Φ5.6mm Package

Union U-LD-83C062Ap 830nm 300mW IR Laser Diode TO18 Φ5.6mm Package

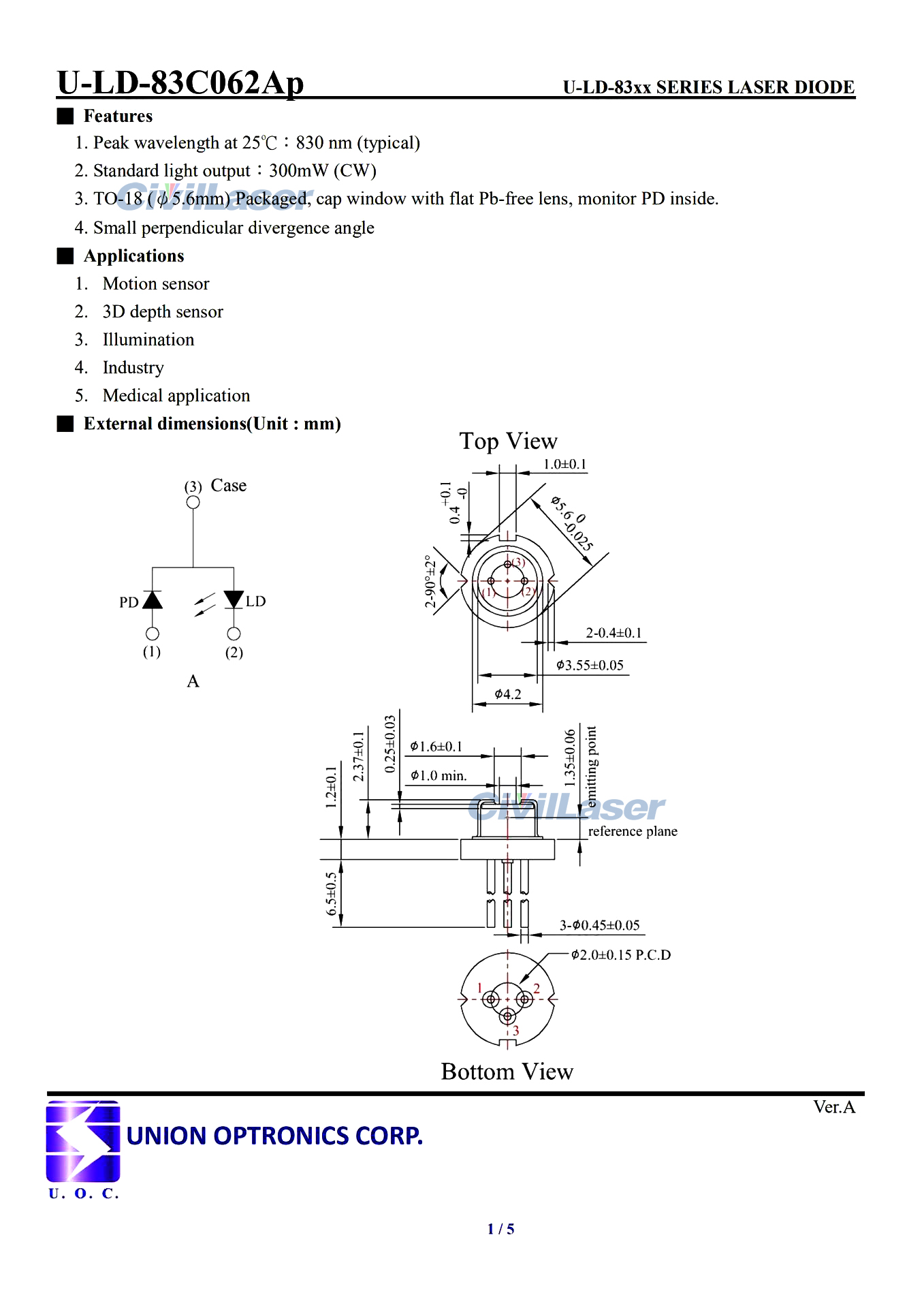

[Features]
1. Peak wavelength at 25℃: 830nm(typical)
2. Standard light output：300mW (CW)
3. TO-18 (Φ5.6mm) Packaged, cap window with flat Pb-free lens, monitor PD inside.
4. Small perpendicular divergence angle.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

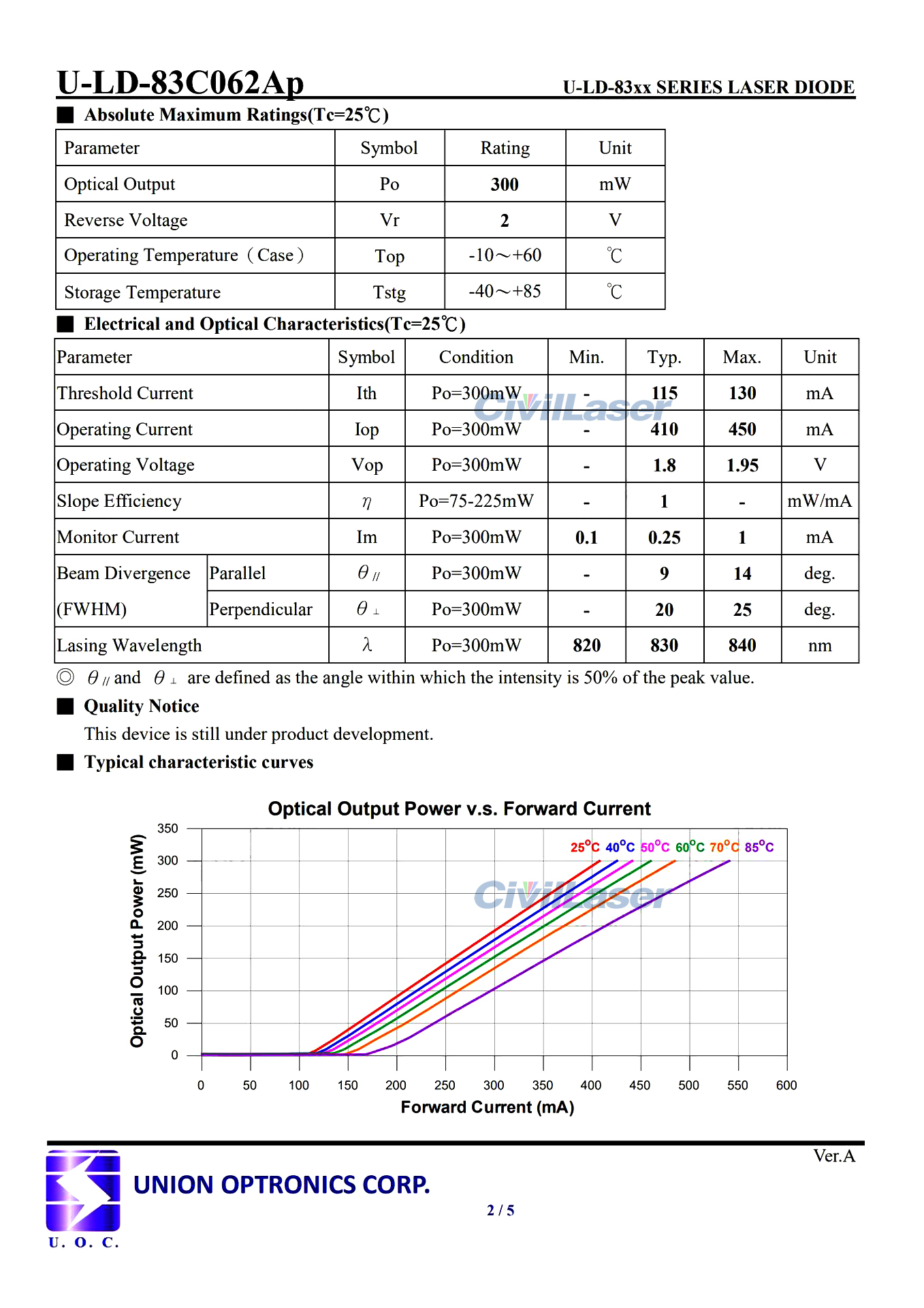

[Specification]
Product Name: Laser diode
Model: U-LD-83C062Ap
Wavelength: 830nm
Output Power: 300mW
Reverse Voltage: 2V
Threshold Current: 115mA
Operating Current: 410mA
Operating Voltage: 1.8V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
