Union U-LD-83B061Ap 830nm 200mW IR Laser Diode TO-18 Package

Union U-LD-83B061Ap 830nm 200mW IR Laser Diode TO-18 Package

[Features]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output：200mW (CW).

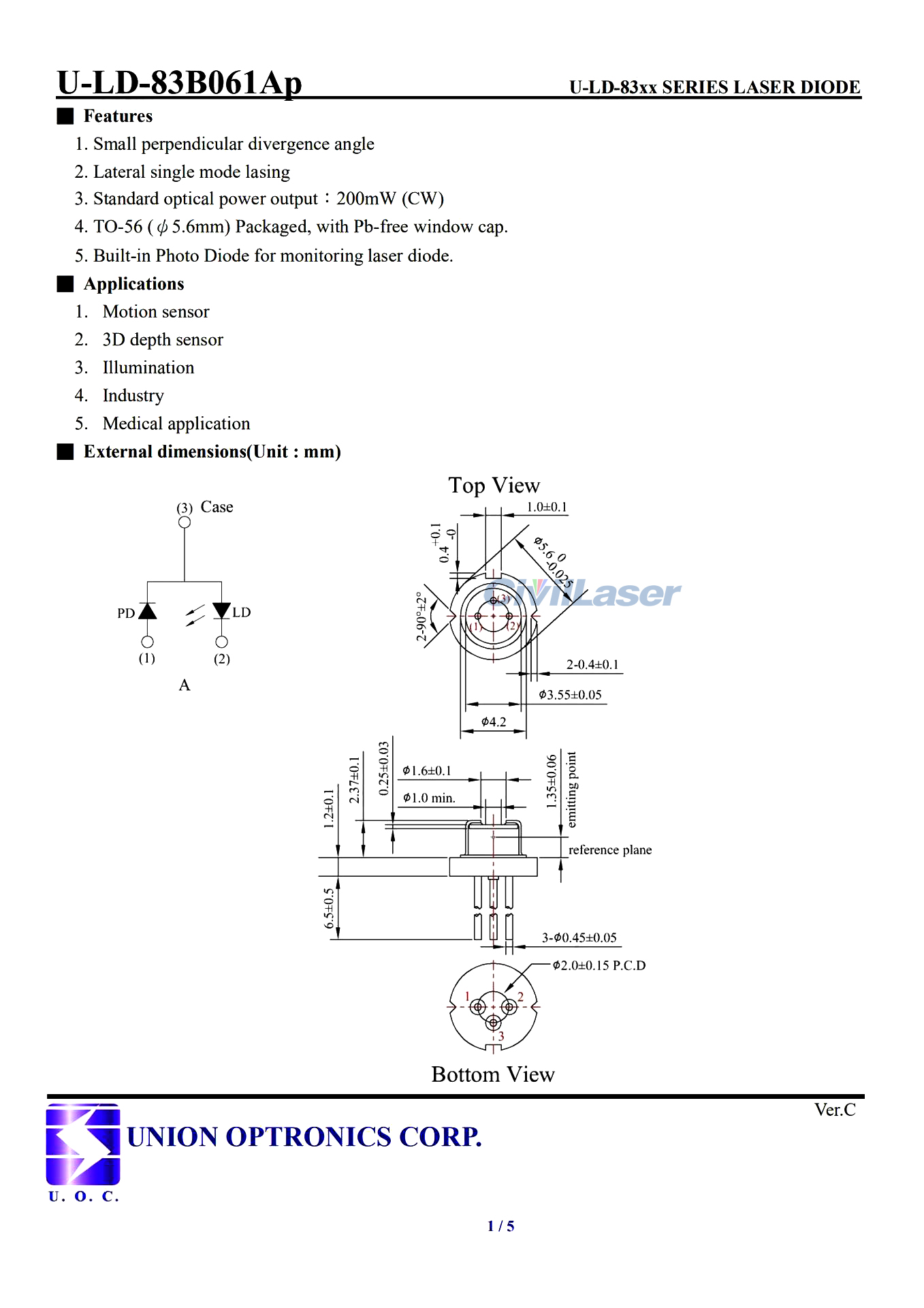

4. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
5. Built-in Photo Diode for monitoring laser diode.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

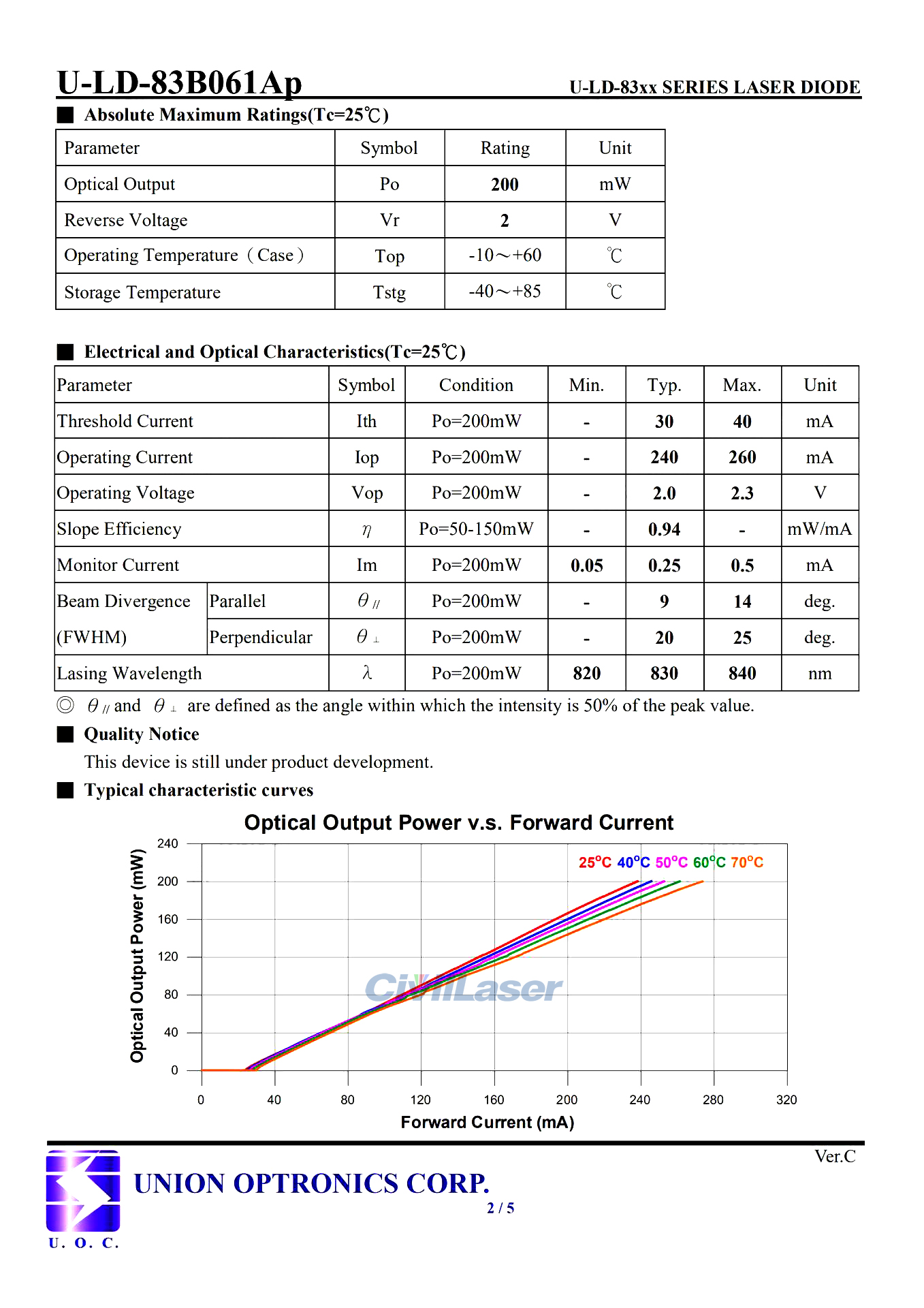

[Specification]
Product Name: Laser diode
Model: U-LD-83B061Ap
Wavelength: 830nm
Output Power: 200mW
Reverse Voltage: 2V
Threshold Current: 30mA
Operating Current: 240mA
Operating Voltage: 2V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
