Union IR Laser Diode 850nm 50mW Laser U-LD-855061Ap U-LD-855062Ap TO-18 Package

Union IR Laser Diode 850nm 50mW Laser U-LD-855061Ap U-LD-855062Ap TO-18 Package

Note:

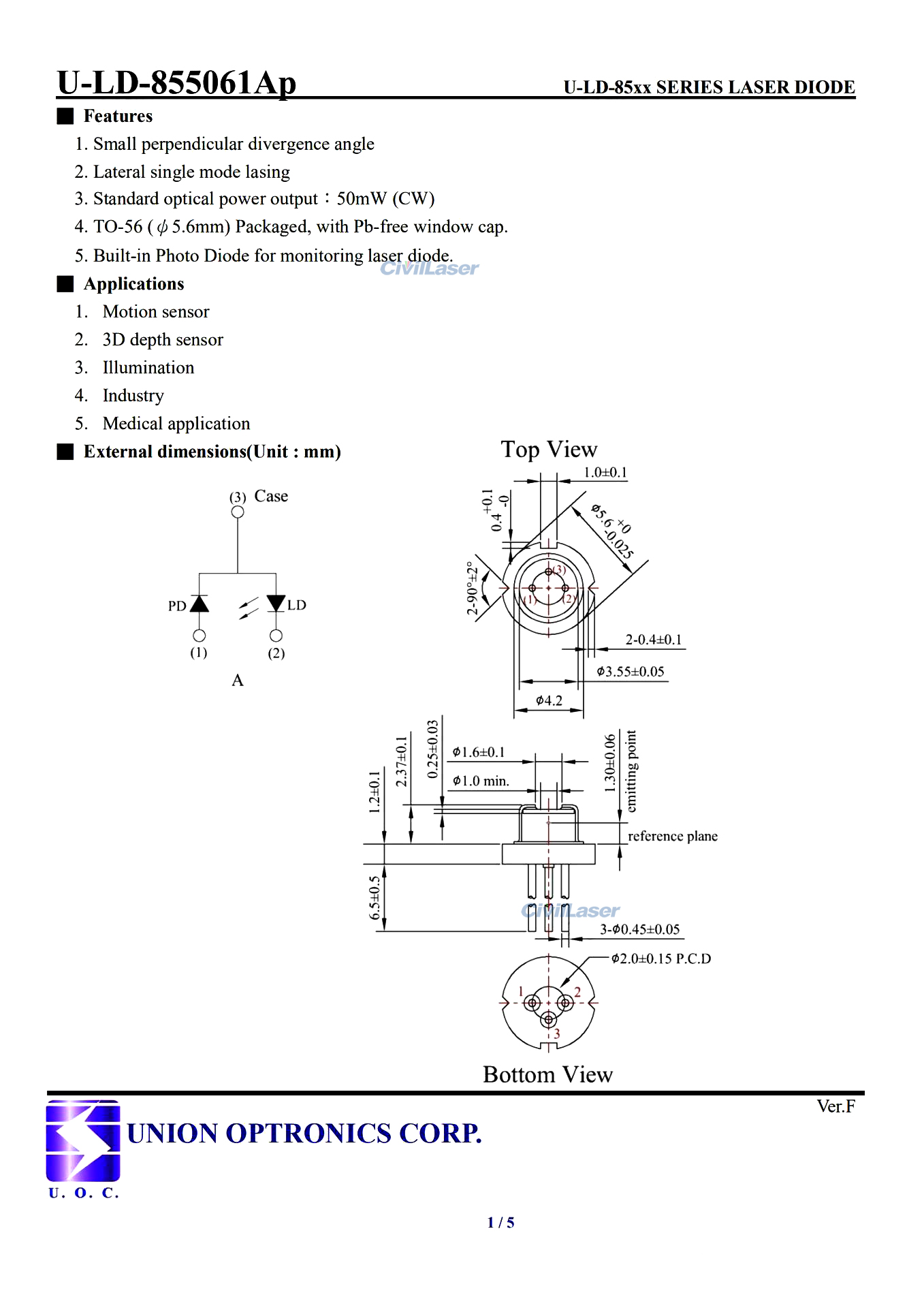

Model: U-LD-855061Ap, this model is no longer used.
Model: U-LD-855062Ap, all new products use this model.

[Features]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output：50mW (CW).

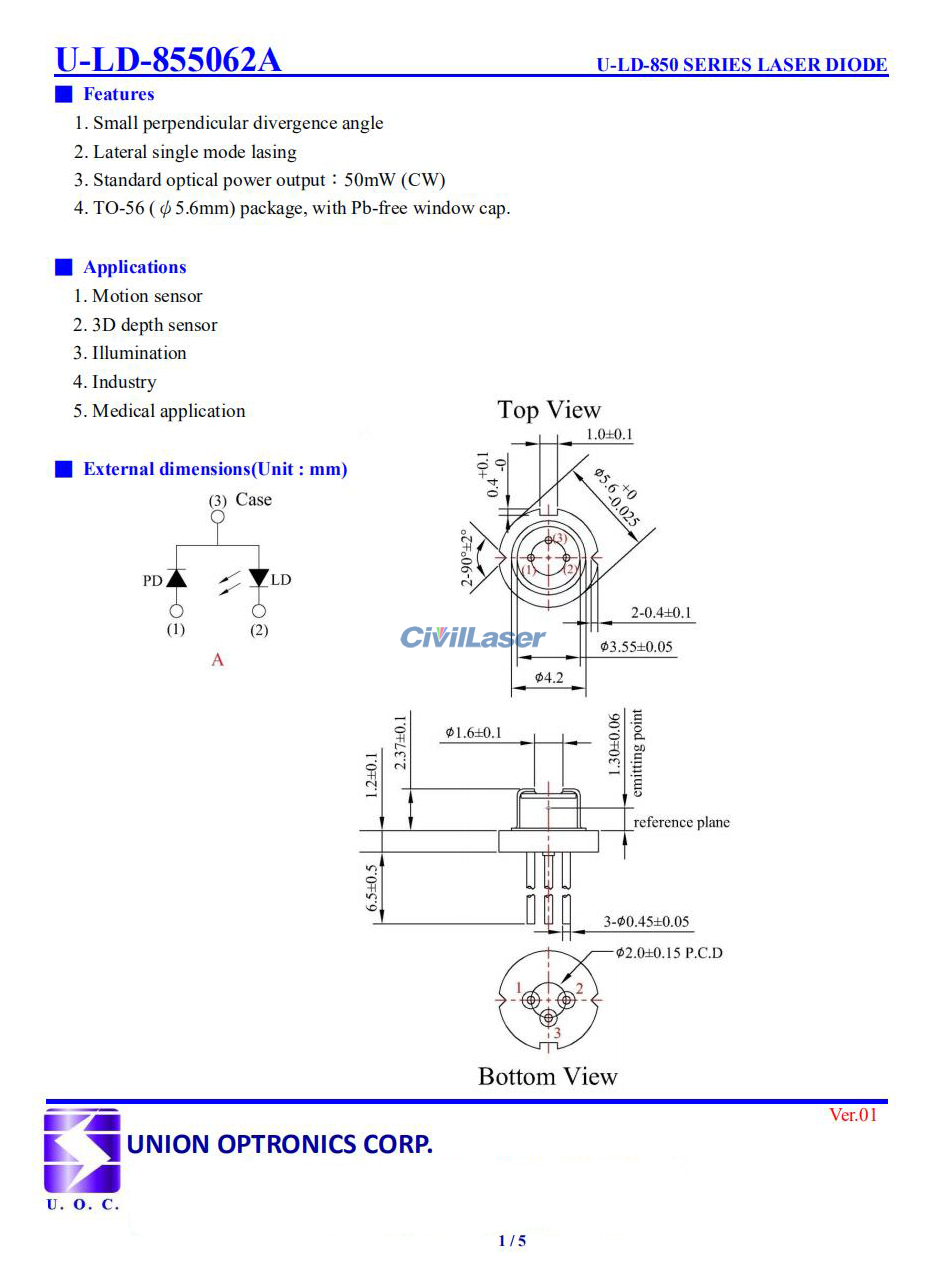

4. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

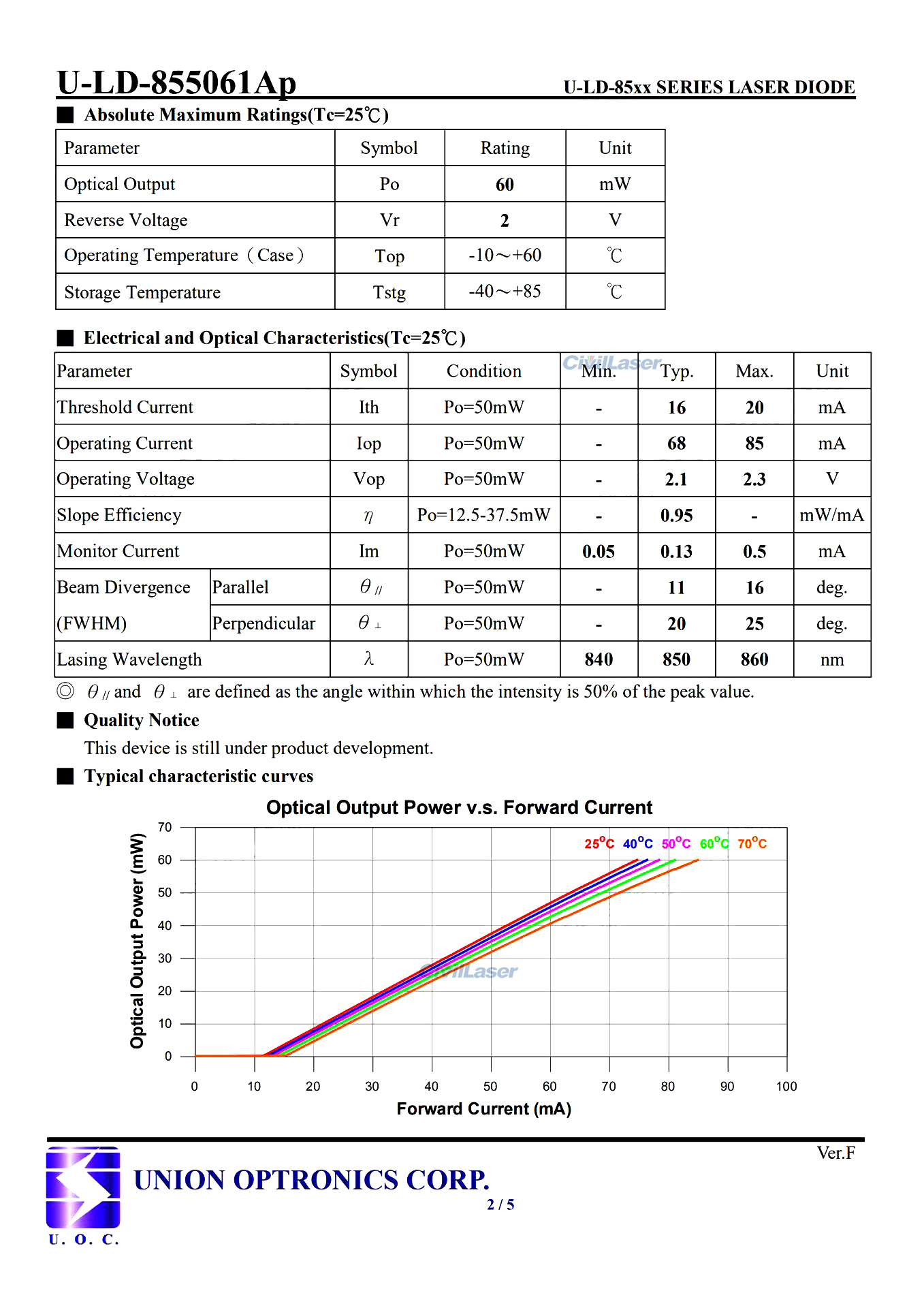

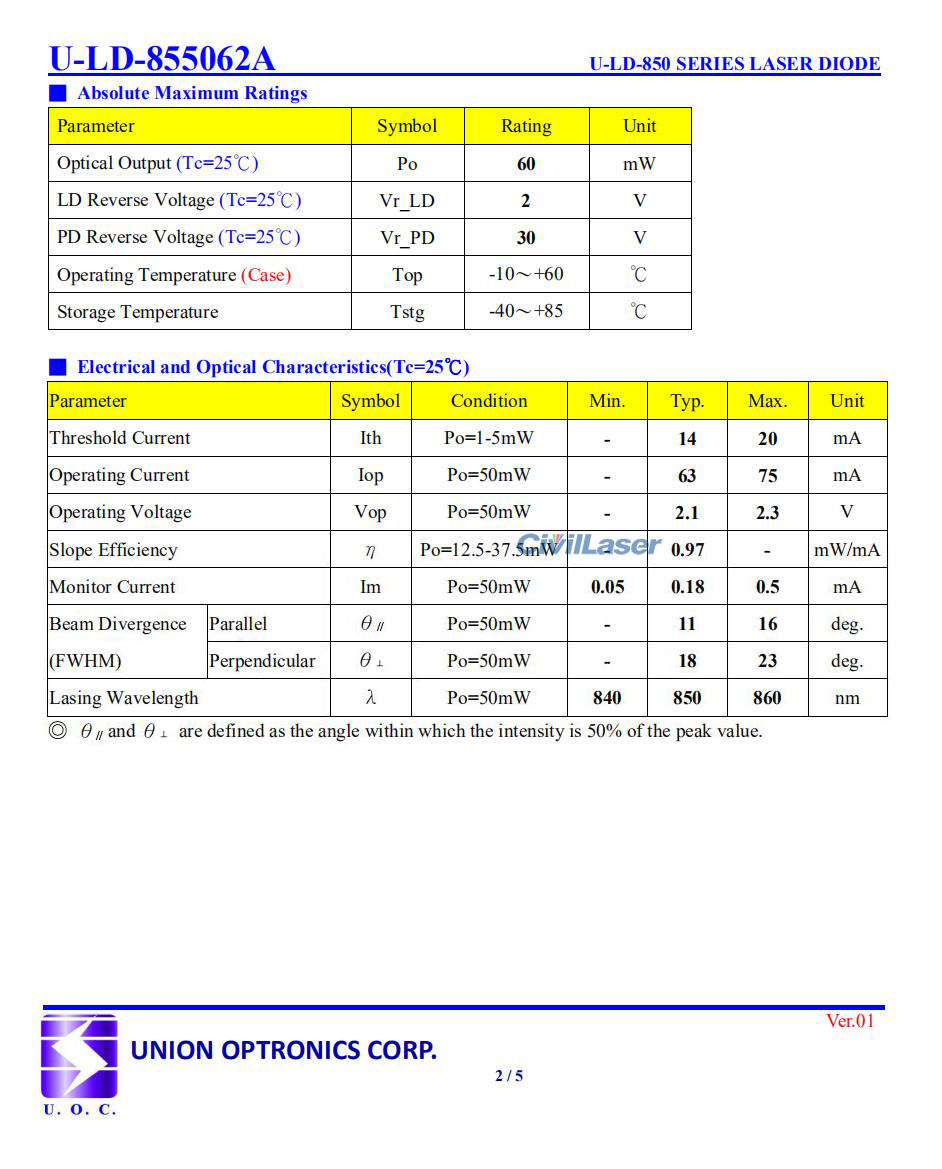

[Specification]
Product Name: Laser diode
Model: U-LD-855062Ap (upgraded model of U-LD-855061Ap)
Wavelength: 850nm
Output Power: 50mW
Reverse Voltage: 2V
Threshold Current: 14mA
Operating Current: 63mA
Operating Voltage: 2.1V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
