Union IR Laser Diode 850nm 200mW Laser U-LD-85B061Ap TO-18 Package

Union IR Laser Diode 850nm 200mW Laser U-LD-85B061Ap TO-18 Package

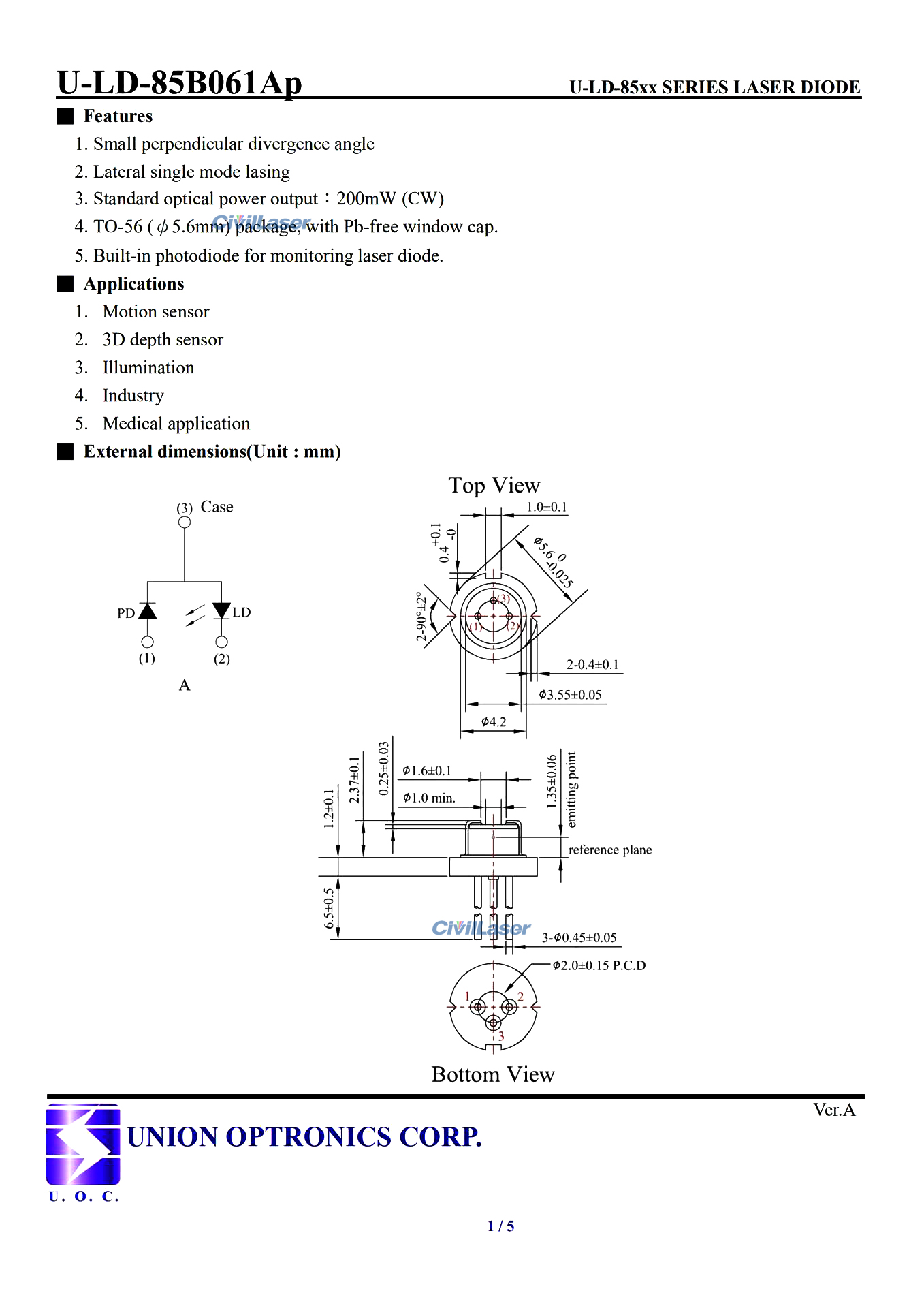

[Features]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output：200mW (CW).
4. TO-56 (Φ5.6mm) package, with Pb-free window cap.
5. Built-in photodiode for monitoring laser diode.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

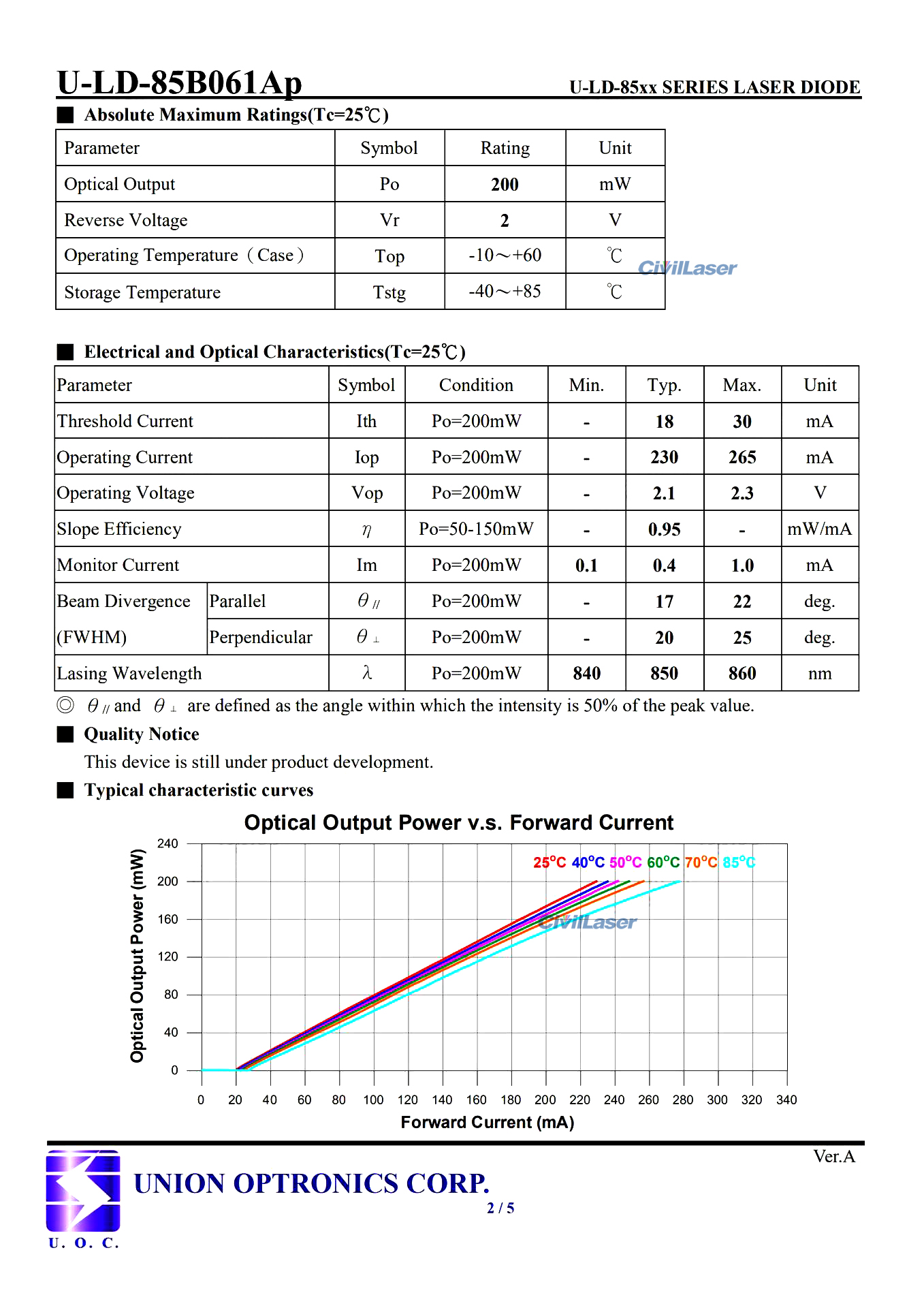

[Specification]
Product Name: Laser diode
Model：U-LD-85B061Ap
Wavelength: 850nm
Output Power: 200mW
Reverse Voltage: 2V
Threshold Current: 18mA
Operating Current: 230mA
Operating Voltage: 2.1V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃

Note: There are other models of this diode, U-LD-85A061Ap ... If you need to contact us.
