Union 850nm 500mW IR Laser Diode U-LD-85E061Ap TO18 Package

Union 850nm 500mW IR Laser Diode U-LD-85E061Ap TO18 Package

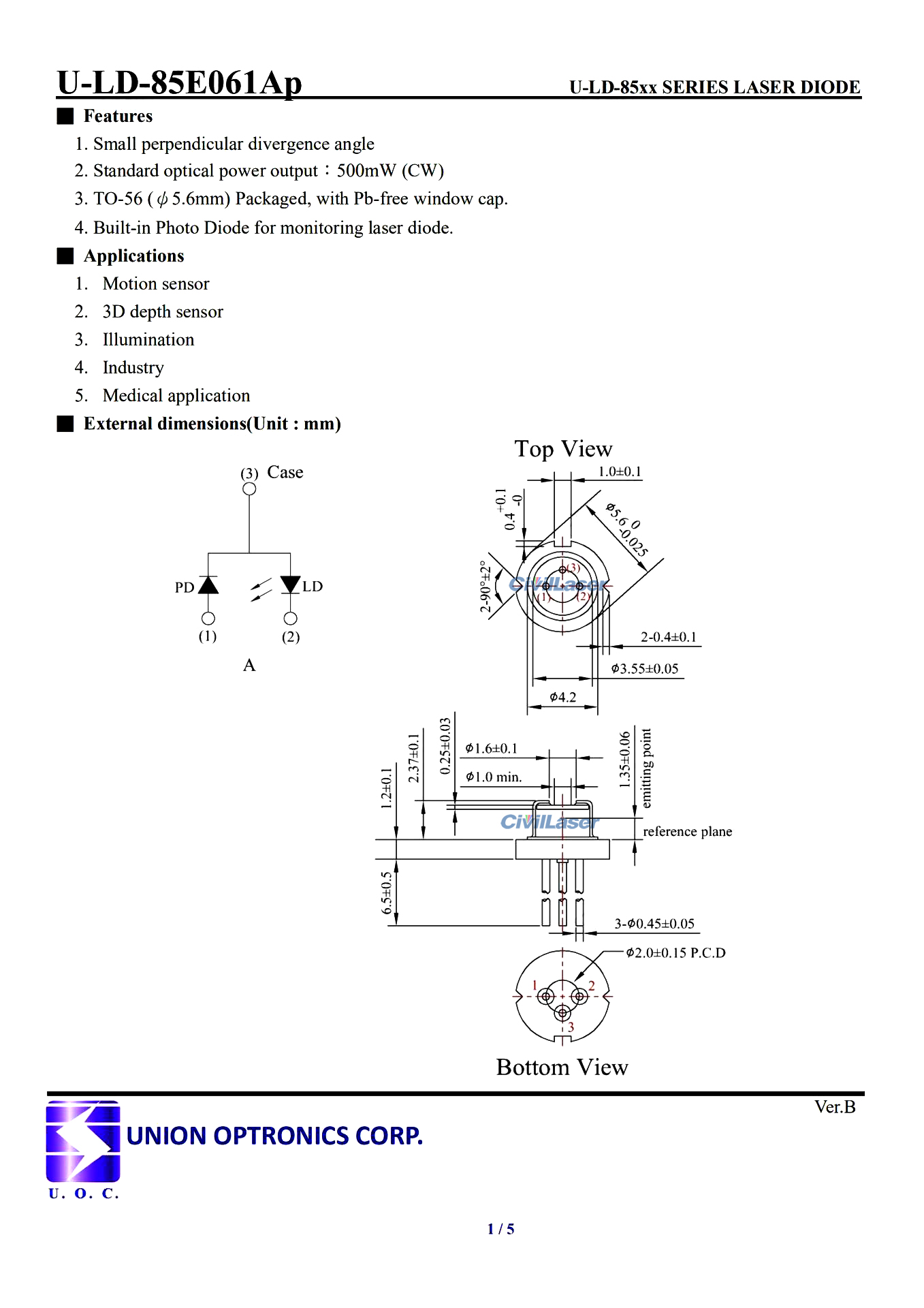

[Features]
1. Small perpendicular divergence angle.
2. Standard optical power output：500mW (CW).
3. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
4. Built-in Photo Diode for monitoring laser diode.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

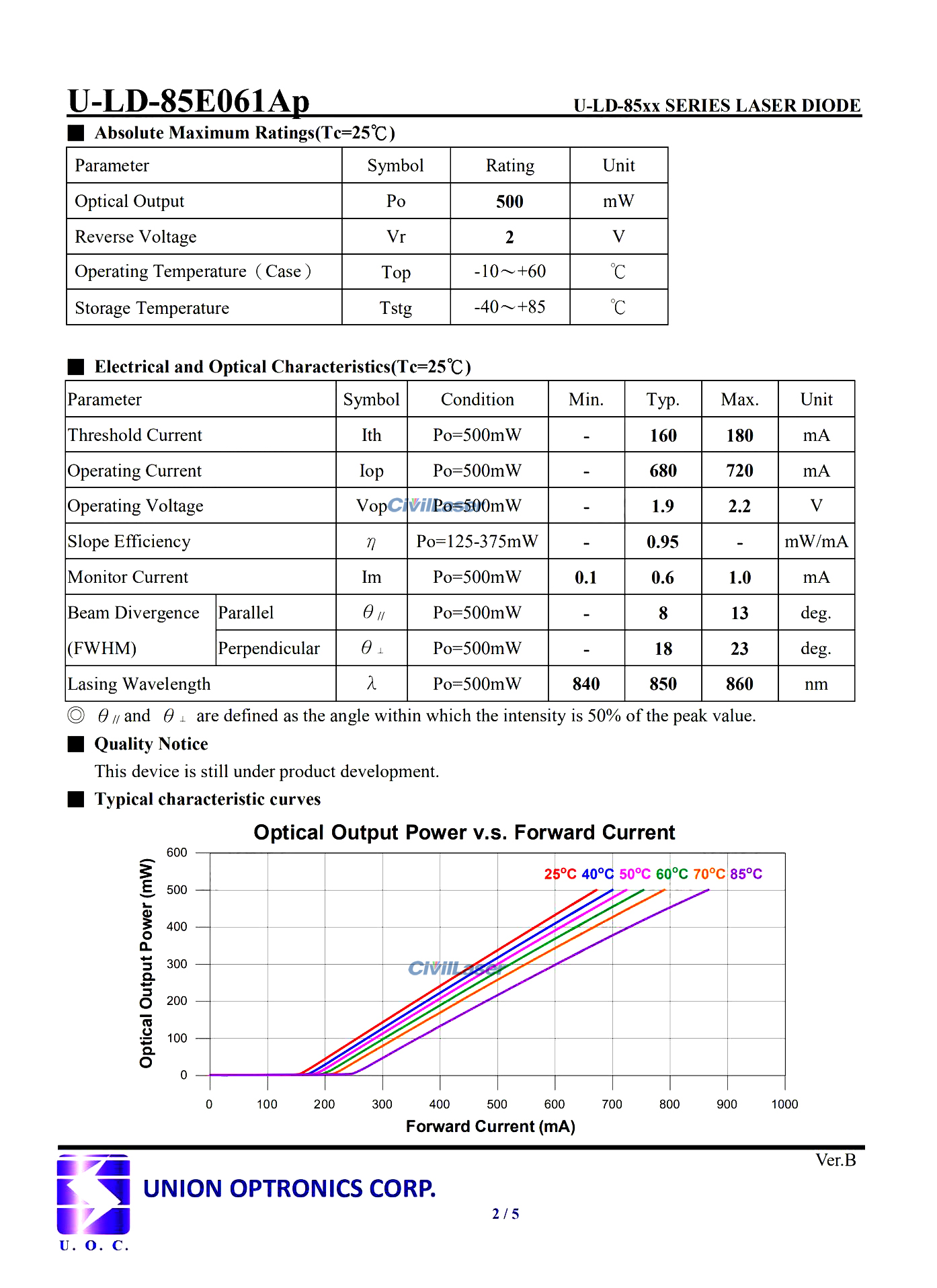

[Specification]
Product Name: Laser diode
Model:　U-LD-85E061Ap
Wavelength: 850nm
Output Power: 500mW
Reverse Voltage: 2V
Threshold Current: 160mA
Operating Current: 680mA
Operating Voltage: 1.9V
Package: TO18(Φ5.6mm)
Operating Temperature: -10~+60℃
Storage Temperature: -40~+85℃
