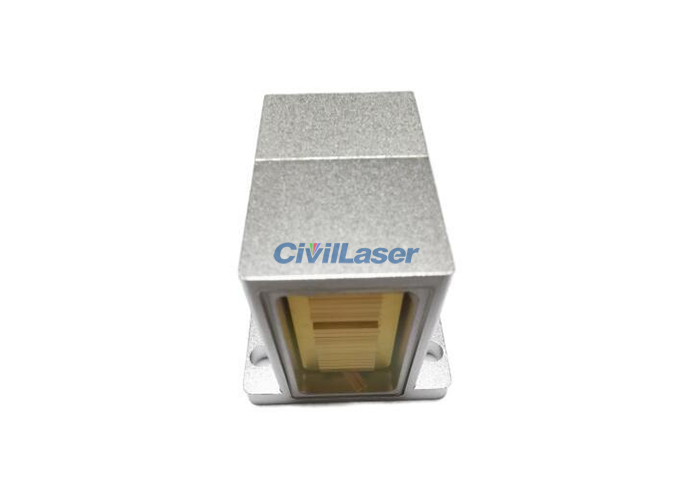

808nm 500W Laser Diode for Hair Removal Stacked Array Package

808nm 500W Laser Diode for Hair Removal Stacked Array Package

[Specification]
Product Name: Laser diode
Wavelength: 808±20nm
Output Power: 500W
Number of Bars: 10
Bar Spacing: 2mm
Fast Axis Divergence Angle(95%): ≤50°
Slow Axis Divergence Angle(95%): ≤9°
Spot Size of Light-Emitting Area: 10x20 mm
Operating Current: 55A
Threshold Current: <13A
Operating Voltage: ≤20V
Operating Frequency: 1~10Hz
Pulse Width: ≤400ms
Duty Cycle: ≤40%
Operating Water Temperature: 20~30℃
Ambient Temperature: 10~35℃
Storage Temperature: -25~55℃
Water Pressure: 0.4~0.6 MPa
Water Flow:2.5~4 L/min
