Red/Green/Blue 400 Squares Laser Module Grid 55.3° Divergence Angle

Red/Green/Blue 400 Squares Laser Module Grid 55.3° Divergence Angle

[Features]
1. Ultra high brightness, universal in indoor and outdoor.
2. The light is clear and bright, soft and not dazzling.
3. Spot size is adjustable.
4. The shell is made of aviation aluminum-plated insulating paint that can not only fully dissipate heat but also resist shock, drop, and static electricity.
5. Imported laser diodes emit light directly with exceptional stability.
6. Intelligent driver board with imported IC, wide range power supply.
7. High temperature resistance, corrosion resistance

[Specifications]
Product Name: Laser Module
Laser Color: Red / Green / Blue (Choose)
Wavelength: 650nm / 520nm / 450nm (Choose)
Power: 100mW
Installation Height: 0~5 meters
Working Voltage: DC 2.8V~5.2V
Working Current: <500mA
Dimensions: 16*70mm
Optical Lens: Grating sheet (imported from Germany)
Lens Angle: 55.3°

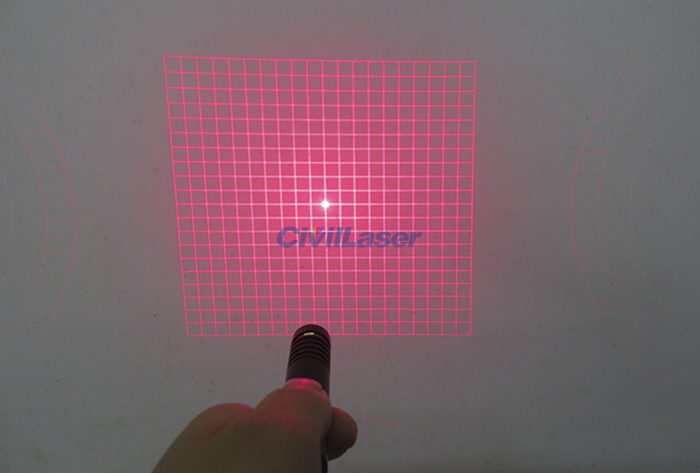

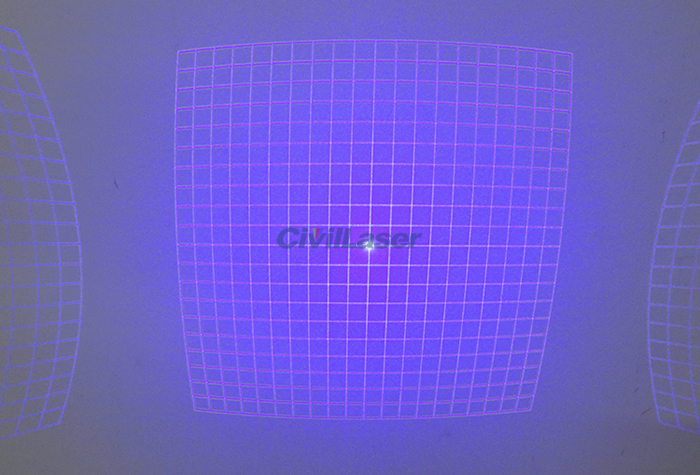

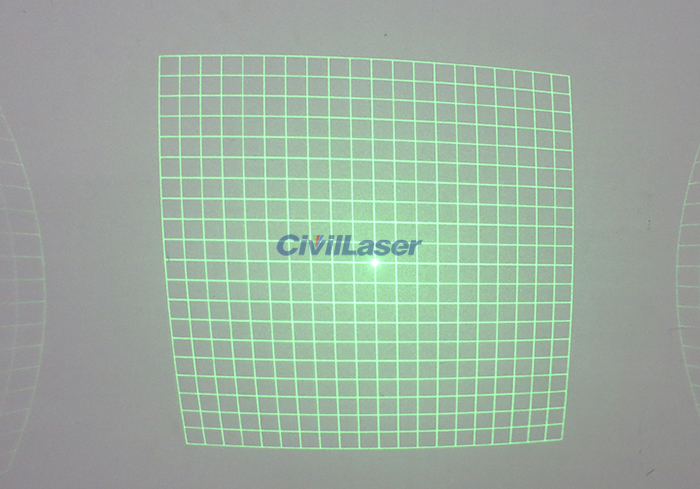

Number of Grids: 20*20=400
Grid Size:
At 50cm, the outer frame is 52.4 cm long (the side length of a single small grid is 2.62 cm).
At 100cm, the outer frame is 104.8 cm long (the side length of a single small grid is 5.24 cm).

[Package Include]
1 x Laser module
1 x Power supply
1 x Laser module holder
