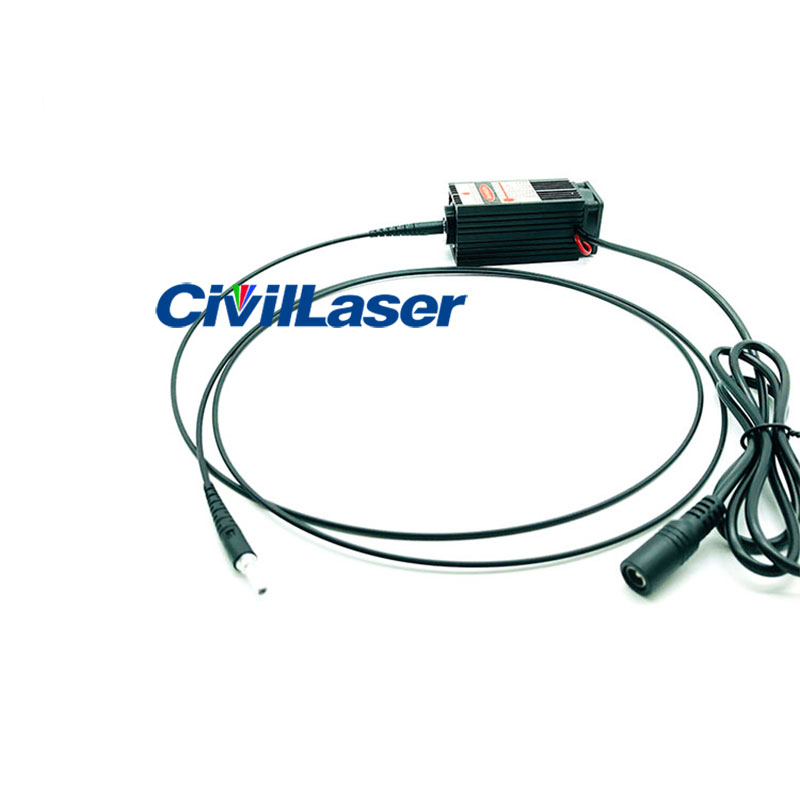

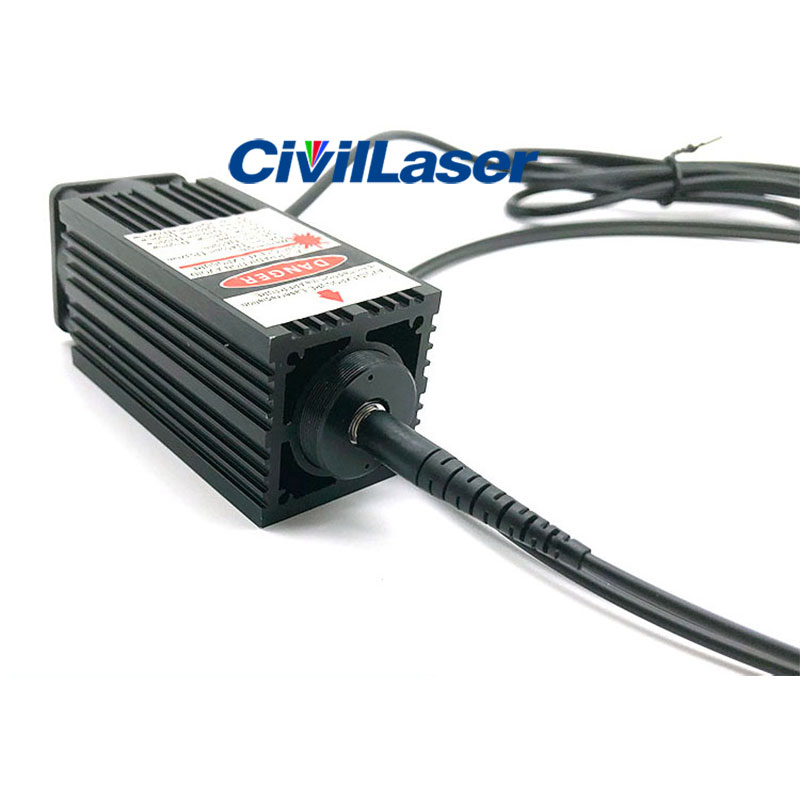

450nm 100mw~1000mw Multi-mode fiber coupled laser module Small volume laser

450nm 100mw~1000mw Multi-mode fiber coupled laser module Small volume laser

[Specifications]
Items: HCX450XXDFB
Mode: CW
Wavelength: 450nm
Output Power: <100mw,<500mw,<1000mw
Operating Voltage: 12-24V
Operating Current: <1A
Operating Temperature:  -20°~+50°
Storage Temperature: -40°~+85°
Housing Material： Environmental protection aluminum
Mean time to failure：>8000H
Laser Safety: Class ⅢB, Class IV
Spot Size：>5cm at 200mm distance
Divergence Angle: <60deg
Fiber length: 1m
Fiber core diameter: 105um
Diameter x Length:  33x33x75mm
Driver circuit: ACC
