1310nm 1mW SLD Broadband Light Source with Single Mode Optical Fiber Module Type SLD-1310-1-SM-M15/M20

Parameters

Unit

Typical value

Remarks

Model

SLD-1310-1-SM-M15/M20

Center Wavelength

nm

1310 (Default)

Customizable: 850/1310/1400/1450/1470
/1500/1550/1610/1650nm

Ouput Power

mW

1

1. Fixed power/Adjustable power (Choose)
2. When PER is added, the output power will be reduced.

Power Adjustable Range

10~100%

Optional function

Spectral Power Density

dBm/nm

≥-25

Spectral Ripple

dB

<0.2

Output Isolation

dB

>35

Short-term Stability (15 minutes)

dB

≤ ±0.02

Equivalent≤±0.5%

Long-term Stability (8 hours)

dB

≤ ±0.05

Equivalent≤±1.2%

PER (Polarization Extinction Ratio)

dB

≤ 0.2

Adding PER results in reduced output power.
eg: 10mW SLD, after adding PER, the output power becomes about 8.5mW.

Pigtail Type

--

SMF-28 Single mode fiber

L=1m
Ф=900μm / 2mm loose tube

Pigtail Connector Type

--

FC/APC

Electrical and Environmental Parameters

Desktop Type

Module Type
(Current product)

Control Method

Touch screen/RS232 serial communication

RS232 Serial communication
(Default not include)

Communication Interface

DB9 Female
(Default not include)

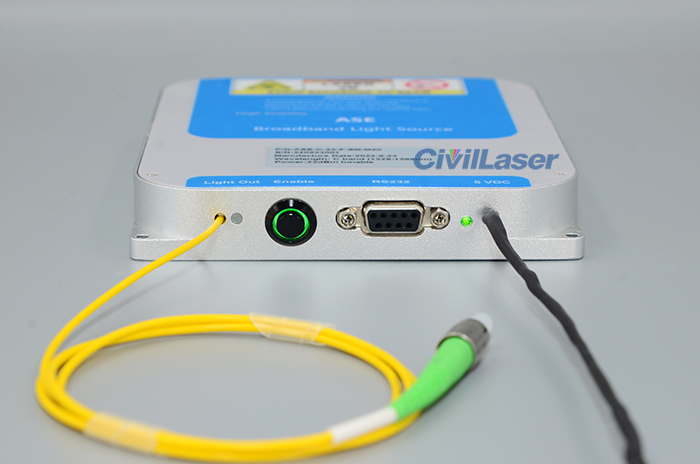

DB9 Female For M20

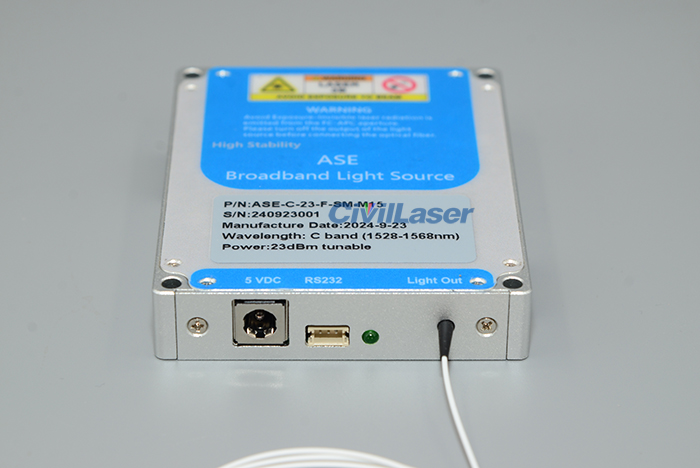

XH1.5-3Pin For M15
(Only for power Tunable )

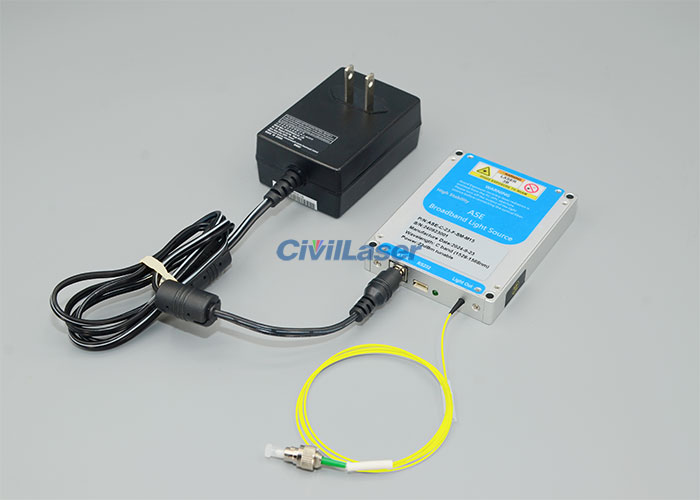

Power Supply

AC 100~240V

DC 5V, 3A

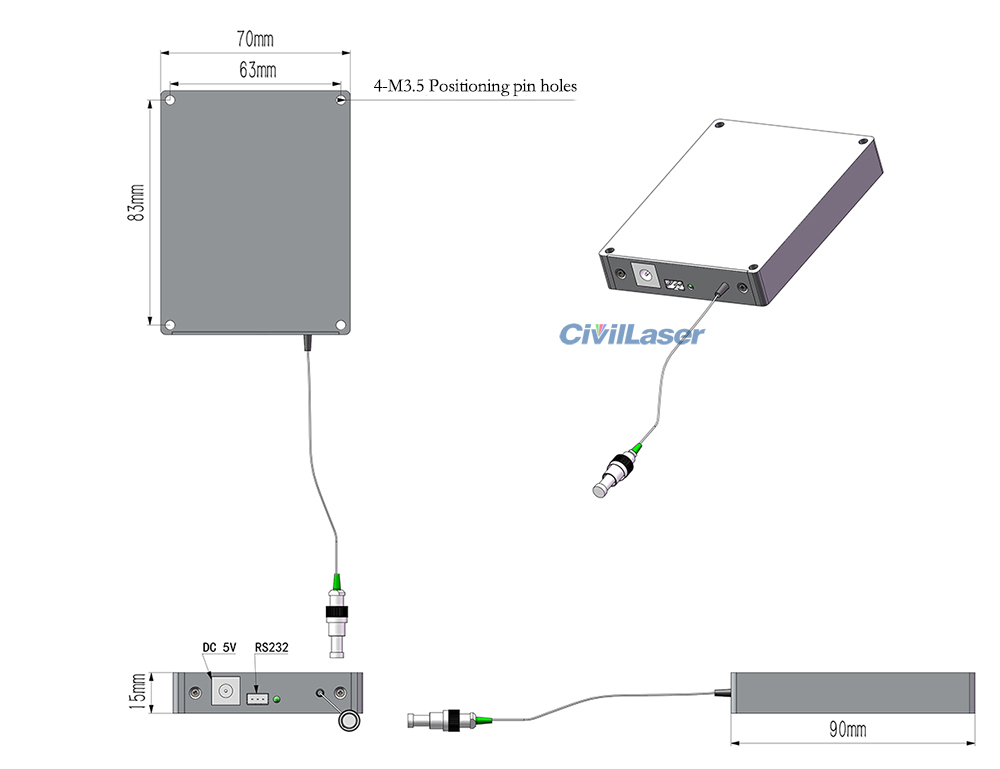

Size

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm

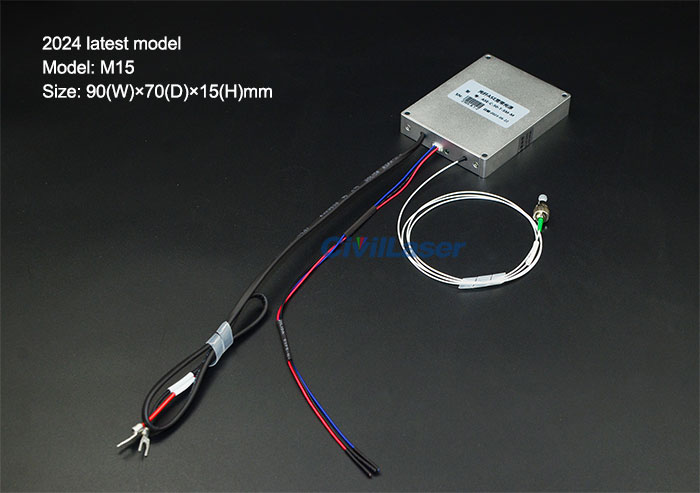

90(W)×70(D)×15(H)mm (Choose)

Operating Temperature Range

-5~+35°C

Operating Humidity Range

0~70%
